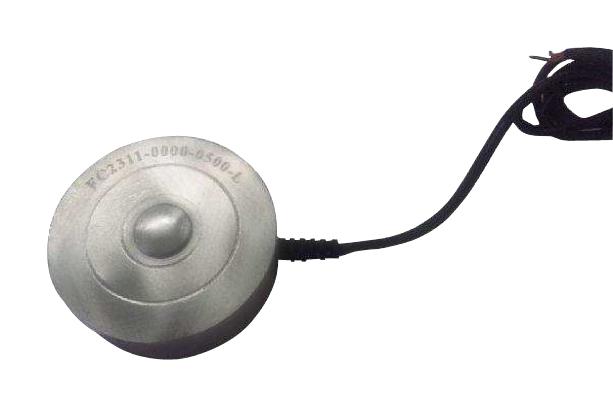

TE CONNECTIVITY FC231100000250L Compression Load Cell
The FC23 compression load cell is a high-precision sensor that employs Microfused™ technology, fused with high-temperature glass on a stainless steel substrate. It offers high over-range capability, thermal compensation, and long-term stability, making it ideal for industrial weighing, robotics, and force measurement applications. Its compact design with industry-standard packaging ensures versatile deployment, supporting ranges from 50 to 2000 pounds-force. The sensor's robust construction and high cycle life enable reliable performance in demanding environments, ensuring accurate force measurement across various industrial processes and automation tasks.
TE CONNECTIVITY FC231100000250L Compression Load Cell Specifications:
- Range: 50-2000 Ibf
- Output: High level or mV, 0-100mV, 0.5-4.5V options
- Supply Voltage: 5.0V (typical at 25°C)
- Zero Force Output: 0 ± 50 μV
- Span (Uncompensated): 95-100% of total span
- Temperature Range: -40°C to +85°C
- Overload Capacity: Rated load
- Dimensions: 29.00 mm diameter, 10.20 mm height
- Materials: Stainless steel, silicon strain gages
- CE Compliance: Yes
- Connectors: 4-core and 3-core wires, rated for 125°C, 300V
- Response Time: 1.0 ms
- Long Term Stability: 1 year
- Weight: Approximately 47.23 grams
- Mounting: 2 M3 screws
Buy the TE Connectivity FC231100000250L Series Compression Load Cell for Industrial Weighing
Secure your operations with the TE Connectivity FC23 compression load cell, engineered for high accuracy, durability, and long-term stability. Featuring Microfused™ technology, it offers exceptional over-range capacity, thermal compensation, and a compact design suitable for automation, weighing, and force sensing applications. Whether for OEM manufacturing, robotics, or load monitoring, this sensor delivers reliable performance across a wide range of industrial environments. Order online today to enhance your measurement systems with this robust, high-performance load cell designed for demanding applications worldwide.
Buy TE Connectivity FC23 compression load sensor now and experience unmatched reliability and precision for industrial weighing, robotics, and force measurement.
