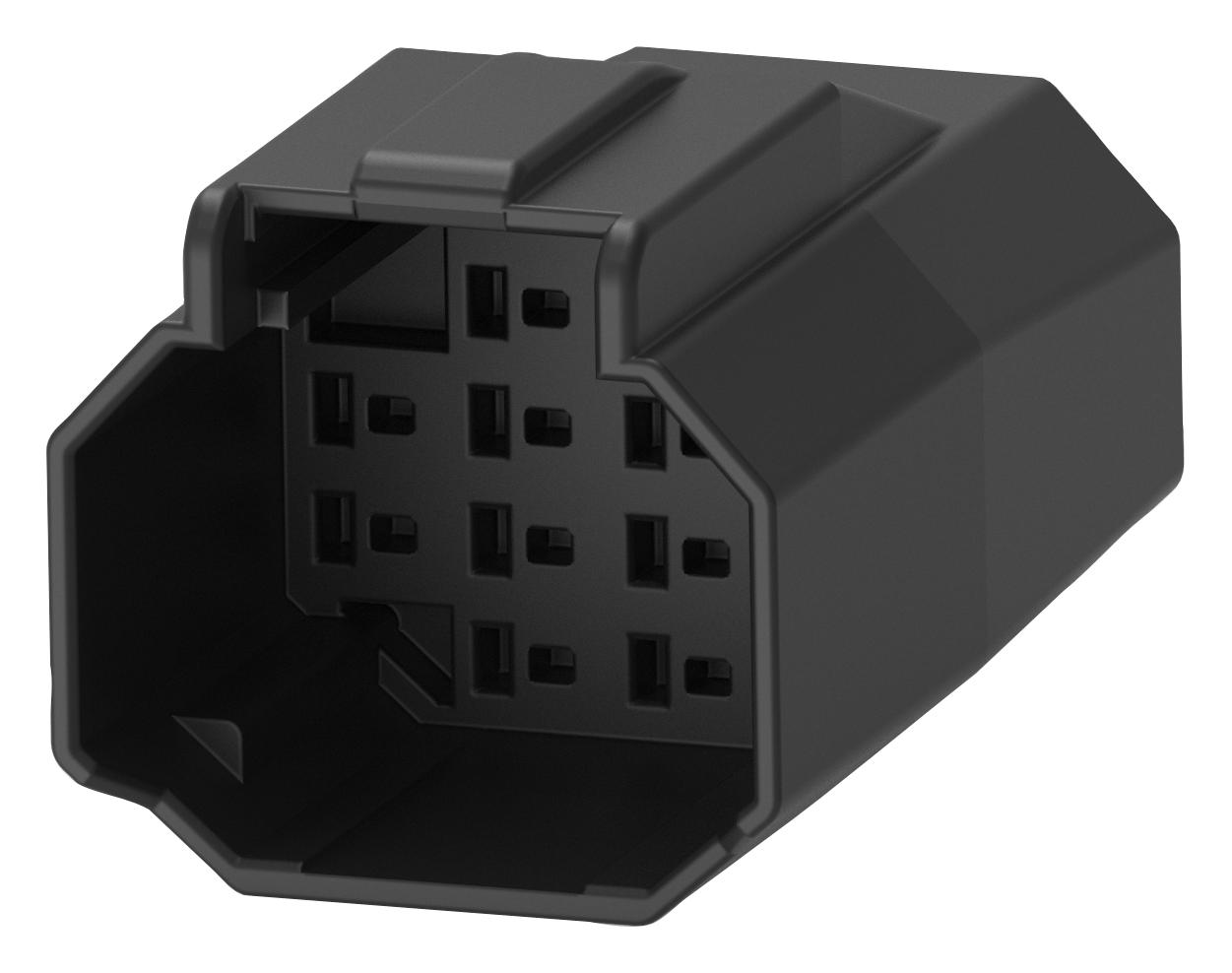

TE CONNECTIVITY 423666002 Wire-to-Wire Connector
The Dynamic D1000 Slim Wire-to-Wire Connector features a compact design, being 80% smaller than the D1200 series, making it ideal for narrow spaces in small industrial equipment and machinery. Its streamlined construction reduces interference risks and enhances reliability. Key features include a 12-position TAB housing with Y key, easy mating and crimping processes for quick installation, and a locking mechanism that ensures proper engagement and audible confirmation. The connector is rated for up to 250V AC/DC and withstands voltages of 1,500VAC for one minute. It is housed in a UL 94V-0 rated black thermoplastic case, with copper alloy contacts, and operates effectively within a temperature range of -55°C to +125°C. Suitable applications include robotics, small industrial robots, collaborative robots, automatic-guided vehicles (AGVs), servo motors, and sensors.
TE CONNECTIVITY 423666002 Wire-to-Wire Connector Specifications:
- Housing Material: Thermo plastic, UL 94V-0, black
- Contact Material: Copper alloy
- Applicable wire size: AWG #22 to #30
- Temperature Range: -55°C to +125°C
- Current Rating: 4.5A per position
- Voltage Rating: AC/DC 250V max
- Withstand Voltage: AC 1,500V for 1 minute
- Locking and keying features for secure connection
- Operational Environment: Suitable for robotics, AGVs, sensors, servo motors
Buy the TE Connectivity Series D1000 Wire-to-Wire Connector: 423666002
Order the TE Connectivity D1000 Series Wire-to-Wire Connector online today to enjoy quick, reliable installation with its streamlined design. Perfect for narrow space applications like robotics, AGVs, sensors, and servo motors, this connector offers a rated voltage of 250V AC/DC, and withstands 1,500VAC for one minute. Its easy mating and crimping process speeds up installation while locking features ensure secure connections. Ideal for industrial equipment, this UL 94V-0 rated housing and copper contacts guarantee durability, safety, and long-term performance in demanding environments.
Buy TE Connectivity D1000 connector now and experience unmatched reliability and performance in small industrial and robotic applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 423666002?
You can click on the BUY or RFQ button to purchase 423666002 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 423666002?
You can download the 423666002 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 423666002?
TE CONNECTIVITY
