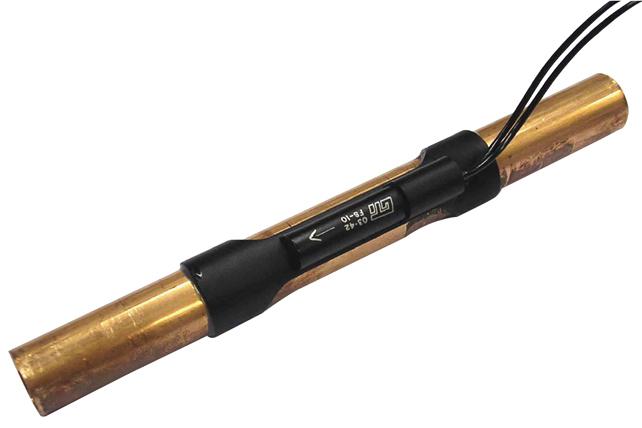

TE CONNECTIVITY FS10 Flow Switch
The FS-10 is a reliable vertical flow switch designed for 15mm copper pipes, suitable for water and air flow detection in HVAC, leak detection, and water control systems. It operates from a small water head, ensuring minimal pressure drop and easy installation. Crafted with a ruthenium reed switch for enhanced durability, the device can handle up to 15 Watts and 300 VDC. Featuring a UL94-HB flammability rating, it is ideal for hot and cold water applications, including central heating, power showers, and cooling systems. Its robust construction and precise operation make it essential for fluid flow sensing in various environments.
TE CONNECTIVITY FS10 Flow Switch Specifications:
- Material: Copper
- Fitting Pipe Size: 15mm
- Contact Form: SPST
- Contact Material: Ruthenium
- Maximum Watts: 15 Watts
- Maximum Switching Voltage: 300 VDC
- Maximum Switching Current: 1.0A
- Cable Type: 2x 16/0.2mm PVC insulated, 1.0M length
- Cable Colour: Black and White
- Operating Temperature Range: 85°C
- Medium: Water
- Flow Rate: 0.5 litres/min
- Operating Pressure: 10 BAR
- Mounting: Vertical
- Mounting Shock: 50g for 11ms
- Mounting Vibration: 35g up to 500Hz
- Flammability Rating: UL94-HB
Buy the Gentech Series FS Flow Switch: FS10
Discover the Gentech Series FS10 flow switch, engineered for precise water and air flow detection in residential and industrial systems. Its 15mm copper pipe fittings and ruthenium reed contacts guarantee durability and reliable switching. Easy to install and suitable for hot and cold water applications, it is perfect for leak detection, central heating, cooling, and power shower control. Order online now to enjoy quick delivery and secure your installation with a high-quality flow sensor designed for demanding environments.
Order your Gentech Series FS10 flow switch today and ensure reliable water and air flow detection for your HVAC and instrumentation projects.
