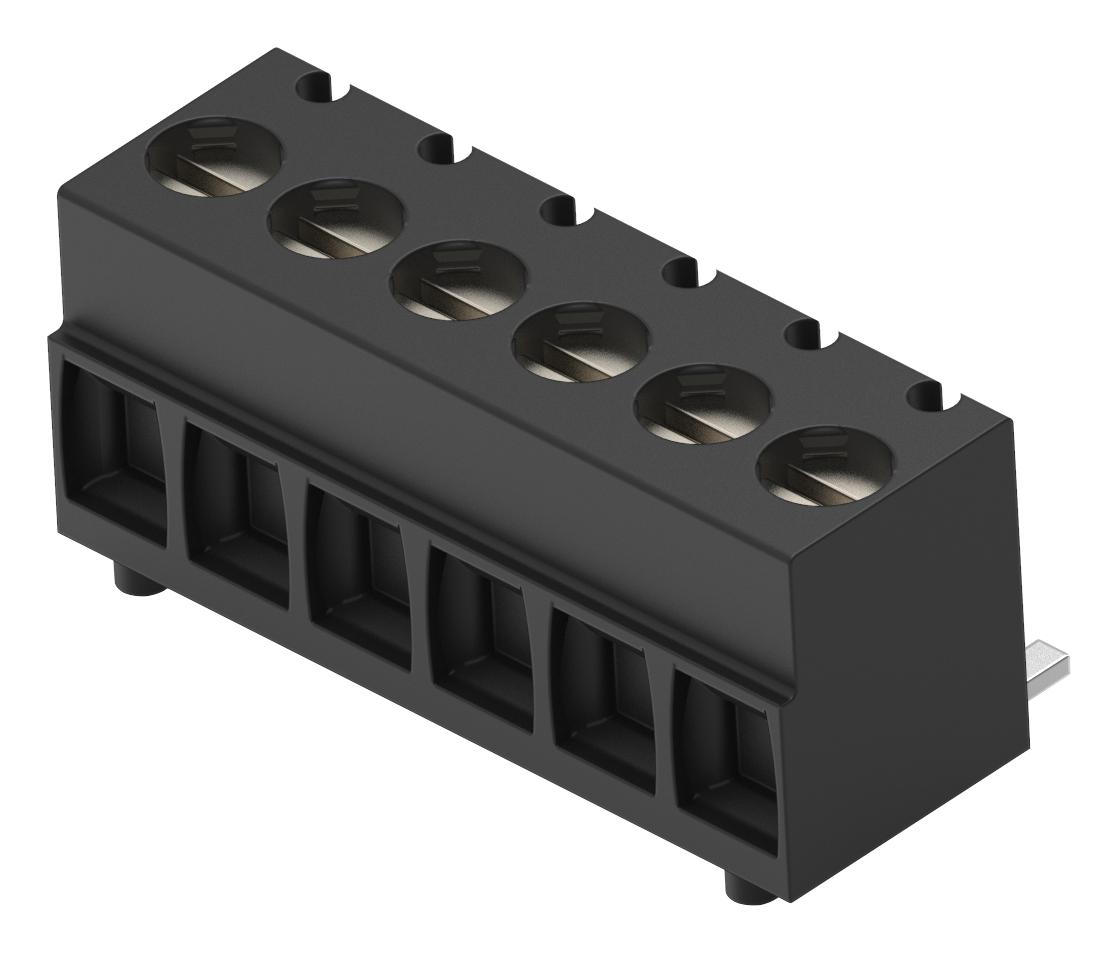

TE CONNECTIVITY 23839426 PCB Terminal Header
The PCB terminal block is a high-quality, single-row header designed for wire-to-board connections. It features six positions with a 3.5mm centerline pitch, suitable for wire sizes from 16AWG to 28AWG, ensuring reliable electrical contact and solid mechanical attachment. Constructed from durable copper alloy with tin contact plating, it supports up to 12A current and 300VAC voltage ratings. The housing is made of high-temperature polyamide, providing excellent insulation and thermal resistance. Its side wire entry angle facilitates easy wiring, making it ideal for compact power and signal applications in industrial equipment and electronic devices.
TE CONNECTIVITY 23839426 PCB Terminal Header Specifications:
- Number of Positions: 6
- Centerline (Pitch): 3.5mm [.13 in]
- Number of Rows: 1
- Wire Entry Angle: Side
- Wire Size Range: 16AWG to 28AWG
- Current Rating: 12A
- Voltage Rating: 300 VAC
- Housing Material: High-Temperature Polyamide
- Contact Material: Copper Alloy
- Contact Plating: Tin
- Mounting Type: Board Mount
- Operating Temperature Range: -40°C to 105°C
- Packaging Method: Tape & Reel
- Packaging Quantity: 300
Buy the Buy TE PCB Terminal Blocks Part Number 2383942-6 Online
Secure your electronic projects with TE's reliable PCB terminal header, featuring six positions and a 3.5mm pitch for wire-to-board connections. This high-quality connector supports wire sizes from 16 to 28 AWG, allowing versatility in various power and signal applications. Made of durable copper alloy with tin-plated contacts, it can handle up to 12A and 300VAC, ensuring safe operation. Its high-temperature polyamide housing provides excellent insulation and thermal resistance. Ideal for industrial equipment, control panels, and compact electronic assemblies, order now to streamline your wiring process.
Order your TE Series2383942-6 PCB terminal block today and ensure reliable wire-to-board connections for power and signal applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23839426?
You can click on the BUY or RFQ button to purchase 23839426 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23839426?
You can download the 23839426 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23839426?
TE CONNECTIVITY
