TE CONNECTIVITY FX190100010100L Compression Load Cell
The FX19 Compression Load Cell offers high reliability for OEM, medical, and appliance applications, with full-scale ranges of 10 to 200 lbf. Utilizing Microfused™ technology, it provides excellent long-term stability, high over-range capacity, and a ratiometric 20mV/V span. Compact and designed for force sensing in smart consumer, medical, and industrial systems, it features anti-rotation mounting, CE compliance, and a versatile 5V supply voltage. Its robust construction ensures reliable measurement of forces in laboratory, hospital, and appliance settings, making it an optimal choice for force, weight, weighing, and force monitoring applications.
TE CONNECTIVITY FX190100010100L Compression Load Cell Specifications:
- Range: 10, 25, 50, 100, 200 lbf
- Supply Voltage: 5.0V
- Full Scale Output Span: 16-36 mV/V
- Zero Offset: 15 mV/V
- Non-Linearity: 1%Span
- Hysteresis: -0.80 to 0.80 %Span
- Thermal Zero Shift: -0.05 to 0.05 %Span / °C
- Thermal Sensitivity Shift: -0.05 to 0.05 %Span / °C
- Insulation Resistance: 50 MQ @500V
- Maximum Overload: 150-250 %FS
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -40°C to +85°C
- Deflection: 0.05 mm at rated load
- Input Resistance: 2.4-3.6 kΩ
- Output Resistance: 1.76-2.64 kΩ
- Dimensions: Compact coin cell package, anti-rotation features, suitable for precise force measurements in medical and industrial environments

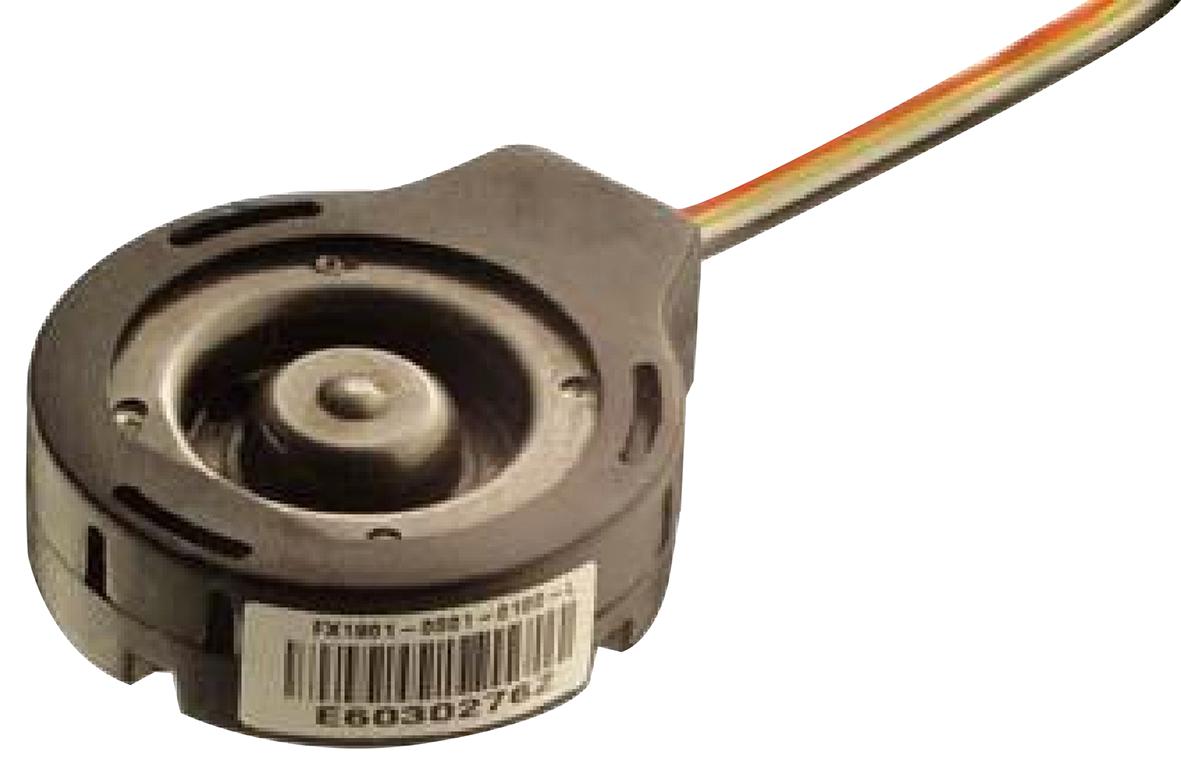

Buy the Buy TE Connectivity FX19 Compression Load Cell Part Number FX1901 Online
Purchase the TE Connectivity FX19 Compression Load Cell online today to benefit from high reliability, micro-machined technology, and compact design. Featuring full-scale ranges from 10 to 200 lbf, CE compliance, and anti-rotation mounting, it's ideal for OEM, medical, appliance, and industrial force sensing. Its robust construction ensures long-term stability and an unlimited cycle life. The easy-to-integrate design suits laboratory, hospital, and consumer product applications, making force measurement accurate and dependable in demanding environments. Get this versatile, cost-effective sensor now for your precise force monitoring needs.
Get TE Connectivity FX19 compression load cell today—built for precision, reliability, and durable force measurement in medical and industrial applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY FX190100010100L?
You can click on the BUY or RFQ button to purchase FX190100010100L from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part FX190100010100L?
You can download the FX190100010100L datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of FX190100010100L?
TE CONNECTIVITY
