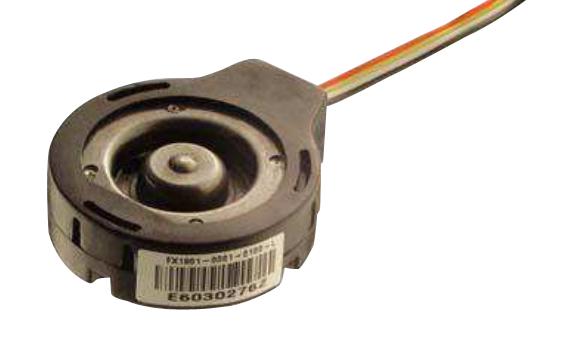

TE CONNECTIVITY FX190100010200L Compression Load Cell
The FX19 compression load cell provides high reliability for OEM, medical, and consumer applications, measuring forces from 10 to 200 pounds. Featuring Microfused™ technology, it offers excellent long-term stability, high over-range capacity, and a compact design ideal for force sensing in medical devices, appliances, and fitness equipment. With CE compliance, anti-rotation mounting, and a low noise, robust structure, it ensures accurate, repeatable force measurement with essentially unlimited cycle life. Its miniature size makes it suitable for space-constrained applications requiring precision force sensing.
TE CONNECTIVITY FX190100010200L Compression Load Cell Specifications:
- Range: 10, 25, 50, 100, 200 lbf
- Full Scale Output: 16-24 mV/V (up to 37.8 mV/V at 200 lbf)
- Supply Voltage: 5V
- Zero Offset: 15 mV/V
- Non-Linearity: 1% span
- Hysteresis: -0.80 to 0.80 % span
- Thermal Zero Shift: -0.05 to 0.05 % span/°C
- Insulation Resistance: 50 MΩ @ 500V
- Overload Capacity: 150-250% FS
- Operating Temperature: 0-50°C
- Storage Temperature: -40 to +85°C
- Deflection: 0.05 mm at rated load
- Input Resistance: 2.4-3.6 kΩ
- Output Resistance: 1.76-2.64 kΩ
- Dimensions: Compact coin cell package, anti-rotation mounting features
- CE Compliance: Yes
- Cycle Life: Essentially unlimited
Buy the TE Connectivity Series FX19 Compression Load Cell: FX1901
Enhance your force measurement capabilities with the TE Connectivity FX1901 compression load cell. Engineered for medical, consumer, and OEM applications, it offers high reliability, excellent stability, and CE compliance. Its compact design with Microfused™ technology ensures long-term performance and resistance to over-range stress in space-constrained environments. Perfect for testing, weighing, and force sensing in appliances, hand tools, and physical therapy devices. Purchase online now to equip your systems with precise, durable force measurement today.
Get TE Connectivity FX1901 compression load cell today—designed for precision force measurement in medical, OEM, and appliance systems with long-lasting durability.
