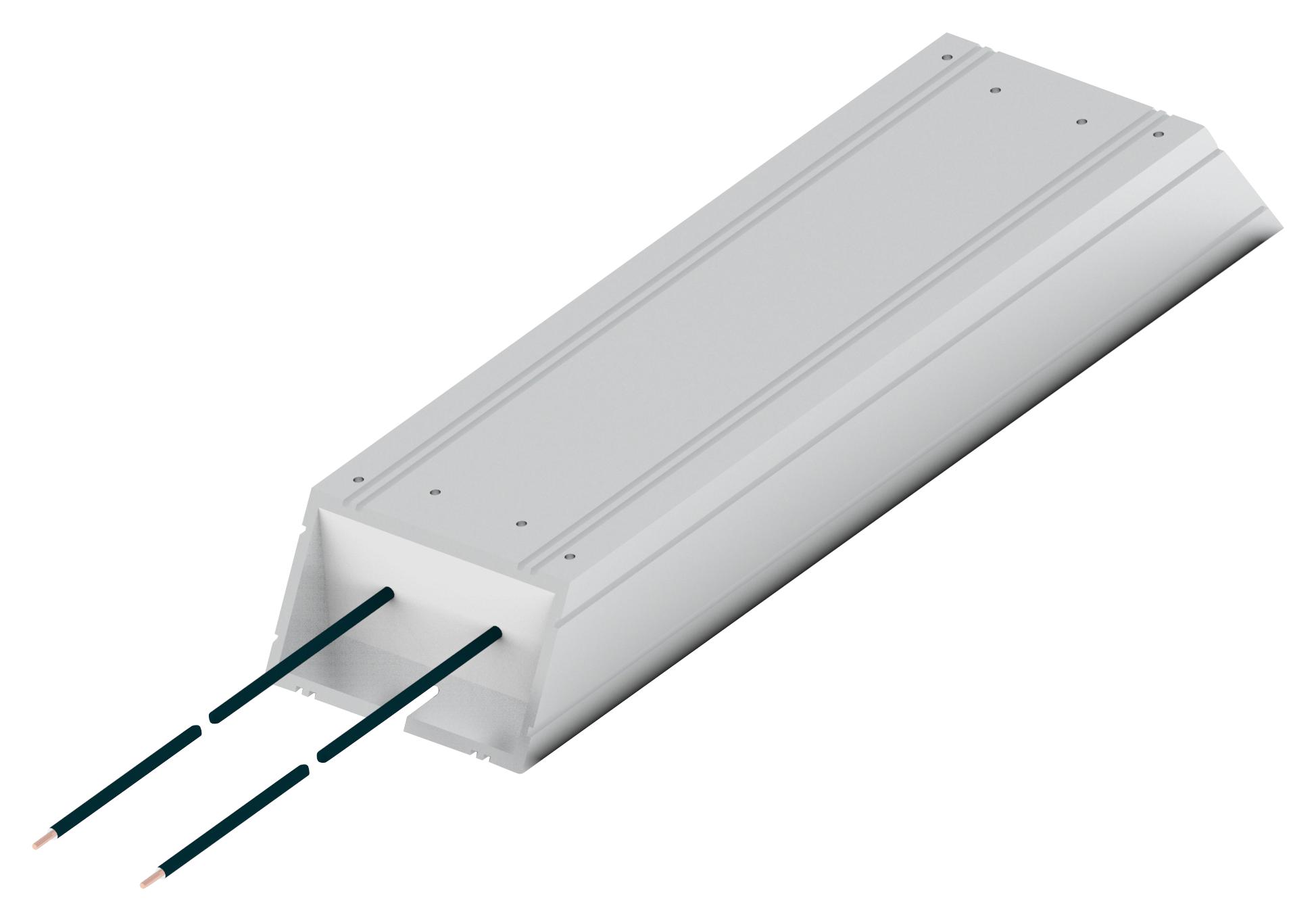

TE CONNECTIVITY HCH215J47RJ Braking Resistor
The aluminium housed braking resistor type HCH series is designed for high power overload capacity, making it ideal for braking applications in industrial drive systems. Featuring IP54 ingress protection, PTFE insulated flying leads for flexible connections, and a rugged aluminium body with anodized profile, these resistors offer reliable thermal and electrical performance. Rated for continuous voltages up to 1100V and power ratings between 200W and 500W, they undergo rigorous testing for load life, insulation resistance, and dielectric strength. Suitable for demanding environments requiring durability and high overload handling ability.
TE CONNECTIVITY HCH215J47RJ Braking Resistor Specifications:
- Power Rating: 200W to 500W at 40°C
- Maximum Temperature: 320°C to 375°C depending on model
- Resistance Range: 680Ω to 2200Ω
- Overload Pulse Load: 1s, 5s, 40s cycles with tested wattages
- Ingress Protection: IP54 for dust and moisture resistance
- Insulation Resistance: >100МО at 1000VDC
- Dielectric Strength: 3500VAC for 1m
- Body Material: Anodized extruded aluminium profile
- Lead Length: 300mm PTFE insulated flying leads
- Dimensions: HCH165 – 165mm L, HCH215 – 215mm L, HCH265 – 265mm L, HCH335 – 335mm L
- Rated Continuous Working Voltage: up to 1100V
- Certifications: Compliant with relevant industrial standards
- Environmental Ratings: Load Life AR 45%, Damp Heat, IP54 ingress protection
Buy the TE Connectivity HCH215 U+2013 Reliable Braking Resistor for Industrial Applications
Purchase the TE Connectivity aluminium housed braking resistor online today to ensure your industrial drive systems perform reliably under high overload conditions. Designed with IP54 protection and PTFE insulated leads, these resistors are built for demanding environments needing durable and high-capacity braking solutions. With power ratings from 200W to 500W and a maximum temperature of up to 375°C, they undergo rigorous testing for load life and insulation quality. Order now to get fast delivery and dependable performance for your industrial applications.
Order your TE Connectivity HCH215J47RJ aluminium housed braking resistor today and enhance your industrial drive systems with reliable overload capacity and durable construction.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH215J47RJ?
You can click on the BUY or RFQ button to purchase HCH215J47RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH215J47RJ?
You can download the HCH215J47RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH215J47RJ?
TE CONNECTIVITY
