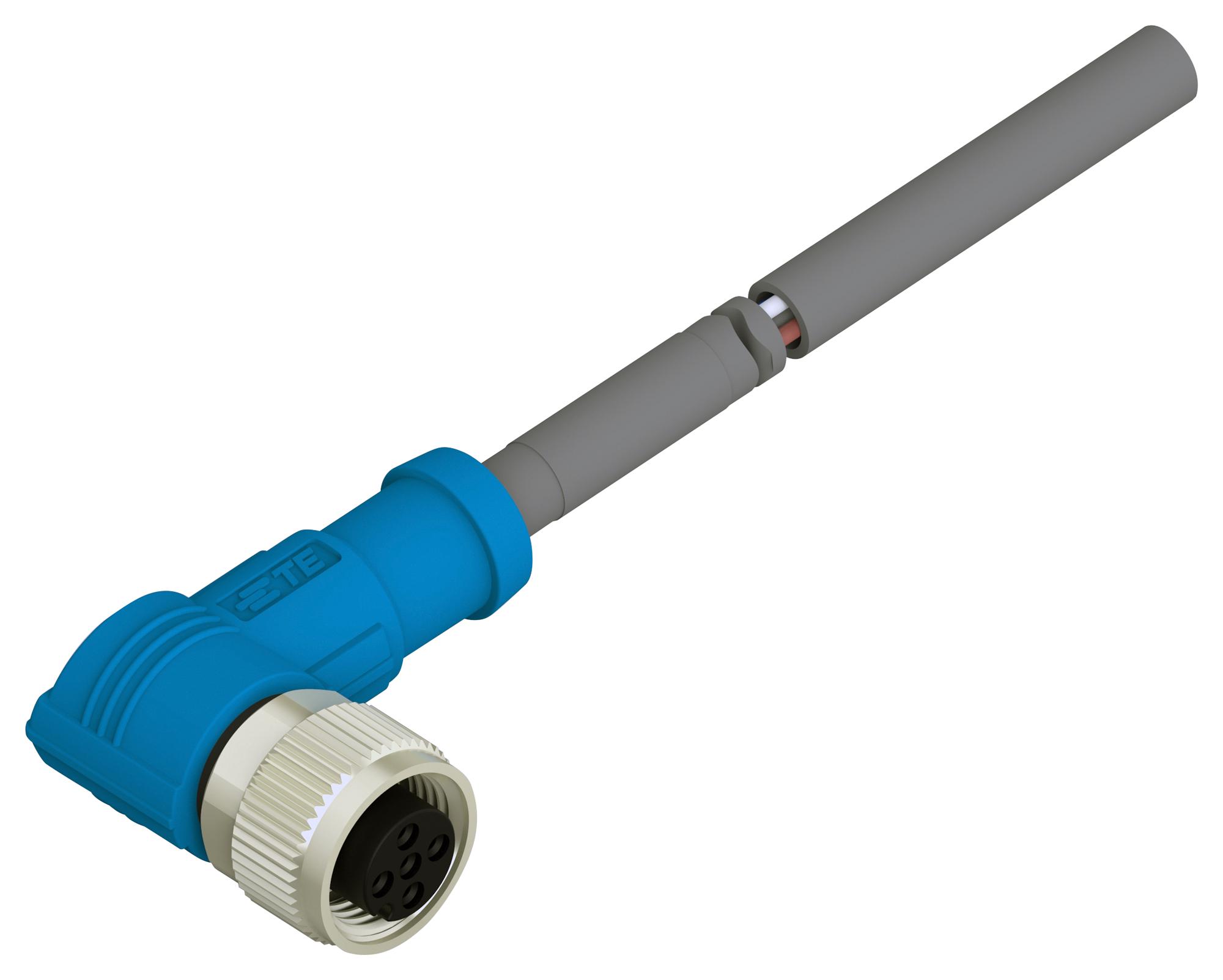

TE CONNECTIVITY T4161420003003 Sensor/Actuator Cable Assembly
This M8/M12 cable assembly is designed for sensor and actuator applications, featuring a 3-position A keying receptacle with a right-angle M12 pigtail connector. Made with a durable gray nylon housing and copper alloy contacts, it supports up to 250 VDC and 4 A current rating. The cable, approximately 1500 mm long, is shielded, field-serviceable, and ideal for industrial automation requiring reliable data and power transmission with environmental protection standards and compliance with European and Chinese regulatory directives.
TE CONNECTIVITY T4161420003003 Sensor/Actuator Cable Assembly Specifications:
- Application Type: Sensor/Actuator
- Number of Positions: 3
- Connection Type: Receptacle, M12 Pigtail, Right Angle
- Housing Material: GF Nylon
- Conductor Material: Copper Alloy
- Cable Color: Gray
- Cable Exit Angle: Right Angle
- Cable Length: Approximately 1500 mm
- Wire Size: 22 AWG
- Voltage Rating: 250 VDC
- Current Rating: 4 A
- Environmental Protection: Compliant with RoHS, CE regulations
- Contact Features: Lead-free, plated for corrosion resistance
- Mounting: Field Serviceable
- Compliance: EU RoHS, ELV, China RoHS 2, REACH SVHC compliant
Buy the Buy TE Connectivity M8/M12 Cable Assembly Part Number T4161420003 Online
Enhance your industrial projects with the TE Connectivity M8/M12 Sensor/Actuator Cable Assembly, featuring a 3-position right-angle connector, shielded design, and 1500 mm length. Made from durable GF Nylon housing and copper alloy contacts, it supports 250 VDC and 4 A current. The field-serviceable construction ensures easy installation and maintenance, making it ideal for factory automation, robotics, and process control systems. Purchase online for quick delivery and reliable performance in demanding environments.
Order your TE Connectivity M8/M12 Cable Assembly T4161420003 today and ensure dependable industrial automation connections with durable, field-serviceable design.
