TE CONNECTIVITY GA22K3A1A Thermistor
The 2.2K3A1 Series 1 Thermistor by TE Connectivity is a high-precision NTC thermistor ideal for temperature sensing, control, and compensation in diverse instrumentation applications. It features a resistance of 2252 ohms at 25°C, a temperature range from -40°C to +125°C, and is designed with 32 AWG alloy 180 leads encapsulated in Stycast epoxy. The thermistor offers fast response times (<1 second in liquids) and various resistance tolerance classifications (+0.1°C to +1.0°C), ensuring stability and reliability for tight tolerance instrumentation and probe assembly requirements.
TE CONNECTIVITY GA22K3A1A Thermistor Specifications:
- Resistance: 2252 ohms at 25°C
- Resistance tolerances: +0.1°C to +1.0°C
- Temperature range: -40°C to +125°C
- Alpha value at 25°C: 4.39%/°C
- Beta value 25/85 K: 3976
- Time response in liquids: <1 second
- Dissipation constant: 0.75 mW/°C
- Lead wires: 32 AWG alloy 180 leads
- Dimensions: 76 ± 2 mm length, maximum diameter 2.4 mm
- Encapsulation: Stycast 2850ft epoxy coating
- RoHS compliant, stable, reliable

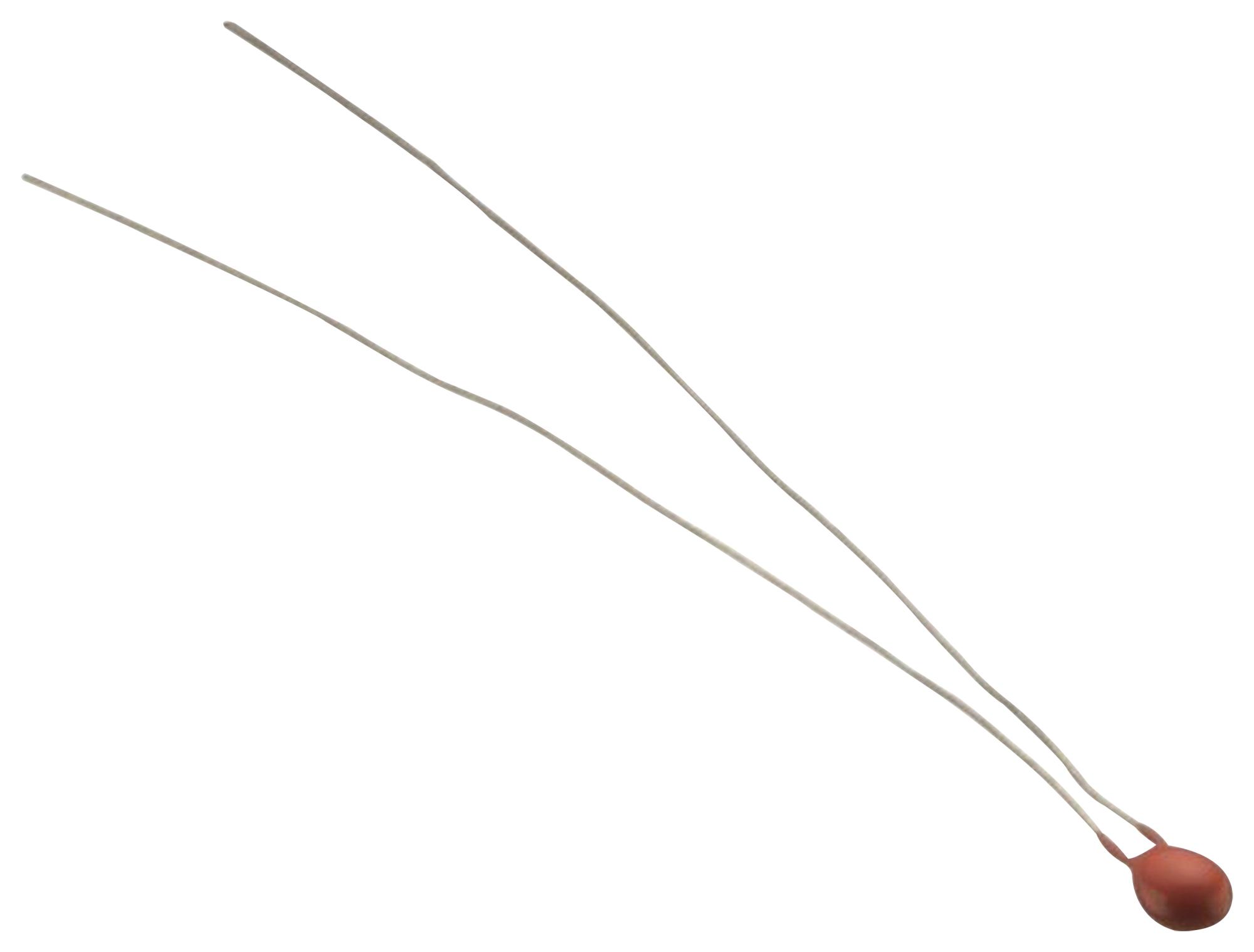

Buy the Buy TE Connectivity 2.2K3A1 Thermistor Part Number GA22K3A1A Online
Order the TE Connectivity 2.2K3A1 Series 1 Thermistor online today to ensure precise temperature sensing for a wide range of industrial and instrumentation applications. Featuring a resistance of 2252 ohms at 25°C, a temperature range from -40°C to +125°C, and encapsulated in durable Stycast epoxy, this thermistor offers fast response times under 1 second in liquids. Its 32 AWG alloy leads provide reliable electrical connections, while the multiple tolerance options guarantee stability and accuracy for tight-tolerance instrumentation, control systems, and probe assemblies.
Buy TE Connectivity 2.2K3A1 thermistor now and experience reliable temperature measurement for instrumentation and control applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY GA22K3A1A?
You can click on the BUY or RFQ button to purchase GA22K3A1A from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part GA22K3A1A?
You can download the GA22K3A1A datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of GA22K3A1A?
TE CONNECTIVITY
