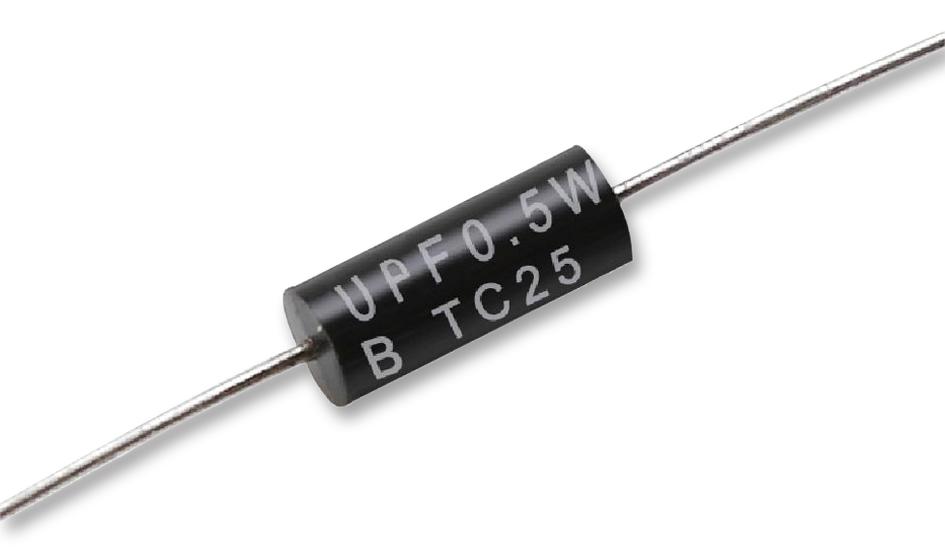

TE CONNECTIVITY UPF25B50RV High Precision Metal Film Resistor
The TE UPF series high precision metal film leaded resistors offer extremely tight tolerance down to +0.02% and low TCR of +5PPM/C, ensuring high stability and accuracy in measurement and precision equipment. Featuring ceramic alumina ceramic cores, nickel alloy resistor elements, and tinned annealed copper leads, these resistors provide excellent thermal and environmental reliability. Available in power ratings from 1/4W to 1/2W and voltages up to 600V, the resistors meet demanding standards for durability, surface insulation, and solderability, making them ideal for precision electronic applications.
TE CONNECTIVITY UPF25B50RV High Precision Metal Film Resistor Specifications:
- Power Ratings: 1/4W (250V), 1/2W (500V), 3/4W (600V)
- Tolerance: ±0.02%
- Temperature Coefficient of Resistance: ±5PPM/°C
- Resistance Range: 1Ω to 1MΩ
- Operating Temperature: -55°C to +125°C
- Dimensions: UPF25: 7.0×0.3mm; UPF50: 10.2×0.3mm
- Material: Alumina ceramic core, nickel alloy resistor element, tinned copper lead wires
- Insulation Resistance: > 1,000MΩ at 800V for 1 min
- Voltage Ratings: 250V, 500V, 600V
- Environmental Standards: MIL-STD-202F methods for overload, solderability, thermal shock, and humidity resistance
- Solderability: 95% min. coverage at 245°C for 5 sec
- Resistance to Soldering Heat: ±0.05% at 350°C for 3 sec or 260°C for 10 sec
- Terminal Strength: Tensile 22.5kg, torsional tested
- Pulse Overload: 4x RCWV for 10,000 cycles
- Temperature Cycling: -25°C to +85°C, 5 cycles
- Storage Temperature: -55°C to +125°C, humidity <80%
Buy the TE UPF Series – Reliable High Precision Resistors for Industrial Applications
Discover the TE UPF series high precision metal film leaded resistors, delivering tight tolerance, low TCR, and excellent stability for precise, reliable performance in measurement and industrial applications. These resistors feature alumina ceramic cores, nickel alloy resistor elements, and tinned copper leads, meeting demanding standards for durability, environmental resistance, and surface insulation. Perfect for instrumentation, testing equipment, and industrial electronics, order online today for fast delivery and consistent quality that enhances your project's reliability and precision.
Order your TE UPF series high precision metal film leaded resistor today and ensure your measurement and precision equipment operate with maximum stability and accuracy.
