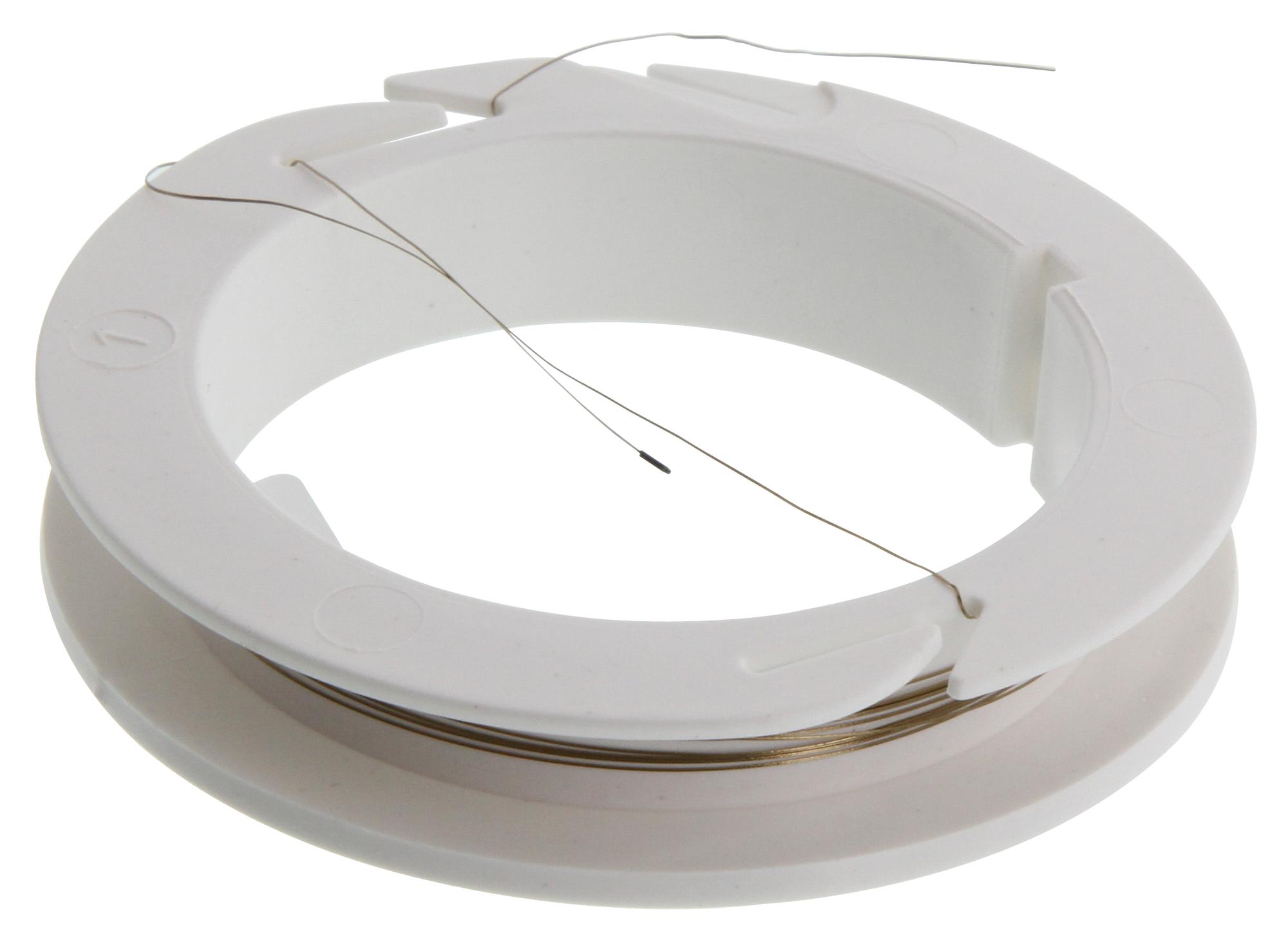

TE CONNECTIVITY GAG22K7MCD419 Temperature Sensor
The Glass Bead Fast Time Response Probe features a hermetically sealed glass-encapsulated thermistor with rapid 30-millisecond response time in liquids, ideal for medical and industrial applications where quick temperature measurements are critical. It is made with a tiny bead diameter (max 0.38mm), resistant to high temperatures, and includes selectable resistance values and temperature characteristics. The probe's robust construction with nickel leads and epoxy resin encapsulation makes it suitable for insertion in catheters, hypodermic needles, or small housings for precise, fast temperature sensing in scientific, medical, and industrial environments.
TE CONNECTIVITY GAG22K7MCD419 Temperature Sensor Specifications:
- Resistance @ +25°C: 22,000 Ohms
- Resistance @ +37°C: 14,004 Ohms
- Resistance tolerance @ 37°C: +15%
- Alpha Value @ 25°C: -3.87%/°C
- Beta Value 25/85 K: 3499
- Time response in liquids: 30 milliseconds
- Dissipation Constant in still air: 0.3 mW/°C
- Temperature range: 0°C to +70°C
- Bead diameter: Max 0.38mm
- Lead wire: 40 AWG solid nickel with brown insulation
- Encapsulation: Glass bead, polyimide tube filled with epoxy resin
- Dimensions: Approximate length 1830mm + 50mm, diameter 1.75mm
- Tested and calibrated at +37°C
Buy the TE Connectivity GAG22K7MCD419 – Reliable Temperature Sensor for Industrial Applications
Enhance your scientific, medical, or industrial temperature measurement with the TE Connectivity Glass Bead Fast Time Response Probe. This highly responsive sensor features a tiny bead that offers a 30-millisecond response time in liquids, making it perfect for medical catheter insertion, hypodermic needles, or small instrument housings requiring quick and accurate temperature readings. Constructed with hermetic glass encapsulation, nickel leads, and epoxy resin fill, it ensures durability and reliable performance in demanding environments. Purchase online now to achieve precise and fast temperature control in your applications.
Buy TE Connectivity GAG22K7MCD419 fast response temperature probe now and experience precise, rapid temperature measurement ideal for medical, scientific, and industrial uses.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY GAG22K7MCD419?
You can click on the BUY or RFQ button to purchase GAG22K7MCD419 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part GAG22K7MCD419?
You can download the GAG22K7MCD419 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of GAG22K7MCD419?
TE CONNECTIVITY
