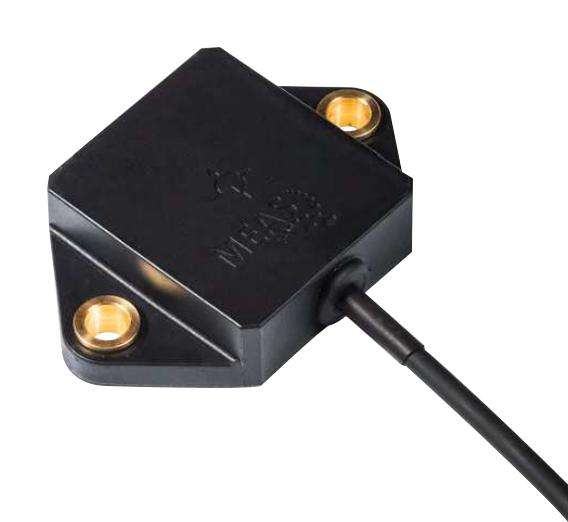

TE CONNECTIVITY GNSDOG1006 Voltage Inclinometer
The DOG1 MEMS Series Voltage Inclinometer is a precise, single-axis tilt sensor designed for both mobile and stationary applications. It measures tilt angles up to +180°, with high accuracy of typically 0.6° at -40°C to +85°C and 0.2° at 25°C. Featuring a 12-bit resolution, 100 Hz refresh rate, and a compact design (70.5 x 45 x 15 mm), it is suitable for cranes, lift platforms, vehicles, and construction machinery. Its robust IP-rated housing and voltage output (0.5 to 4.5 V) ensure reliable operation in harsh environments, making it ideal for OEM and industrial use.
TE CONNECTIVITY GNSDOG1006 Voltage Inclinometer Specifications:
- Measurement range: +180° (single axis), other axis within +90° range
- Accuracy: typically 0.6° at -40°C to +85°C, 0.2° at 25°C
- Resolution: 12-bit
- Refresh rate: 100 Hz
- Supply voltage: 8 to 30 V DC
- Output: 0.5 to 4.5 V voltage signal
- Connector: AMP Superseal 1.5-Series, 3-pos
- Cable: 3-wire PUR, 400 mm length
- Operating temperature: -40°C to +85°C
- Storage temperature: -40°C to +85°C
- Weight: approximately 60 g
- Dimensions: 70.5 mm x 45 mm x 15 mm
- Outer diameter: 93.9 mm
- Pin functions: 1 - Power (+), 2 - Ground, 3 - Output voltage
- Survivable in harsh environments, suitable for oil, grease, and fuel exposure
Buy the TE Connectivity Series DOG1 Voltage Inclinometer: GNSDOG1006
Enhance your engineering projects with the TE Connectivity DOG1 Series Voltage Inclinometer, offering precise tilt measurement up to +180°, high resolution, and fast response time. Designed for industrial, mobile, and construction applications, it features a rugged IP-rated housing, stable voltage output, and reliable operation across a wide temperature range. Whether for cranes, vehicles, or building controls, this compact sensor ensures accurate, real-time angle detection. Easily integrate it into your OEM systems and improve safety, accuracy, and efficiency today.
Order your TE Connectivity Series DOG1 voltage inclinometer today and ensure accurate tilt measurement for your industrial and mobile projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY GNSDOG1006?
You can click on the BUY or RFQ button to purchase GNSDOG1006 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part GNSDOG1006?
You can download the GNSDOG1006 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of GNSDOG1006?
TE CONNECTIVITY
