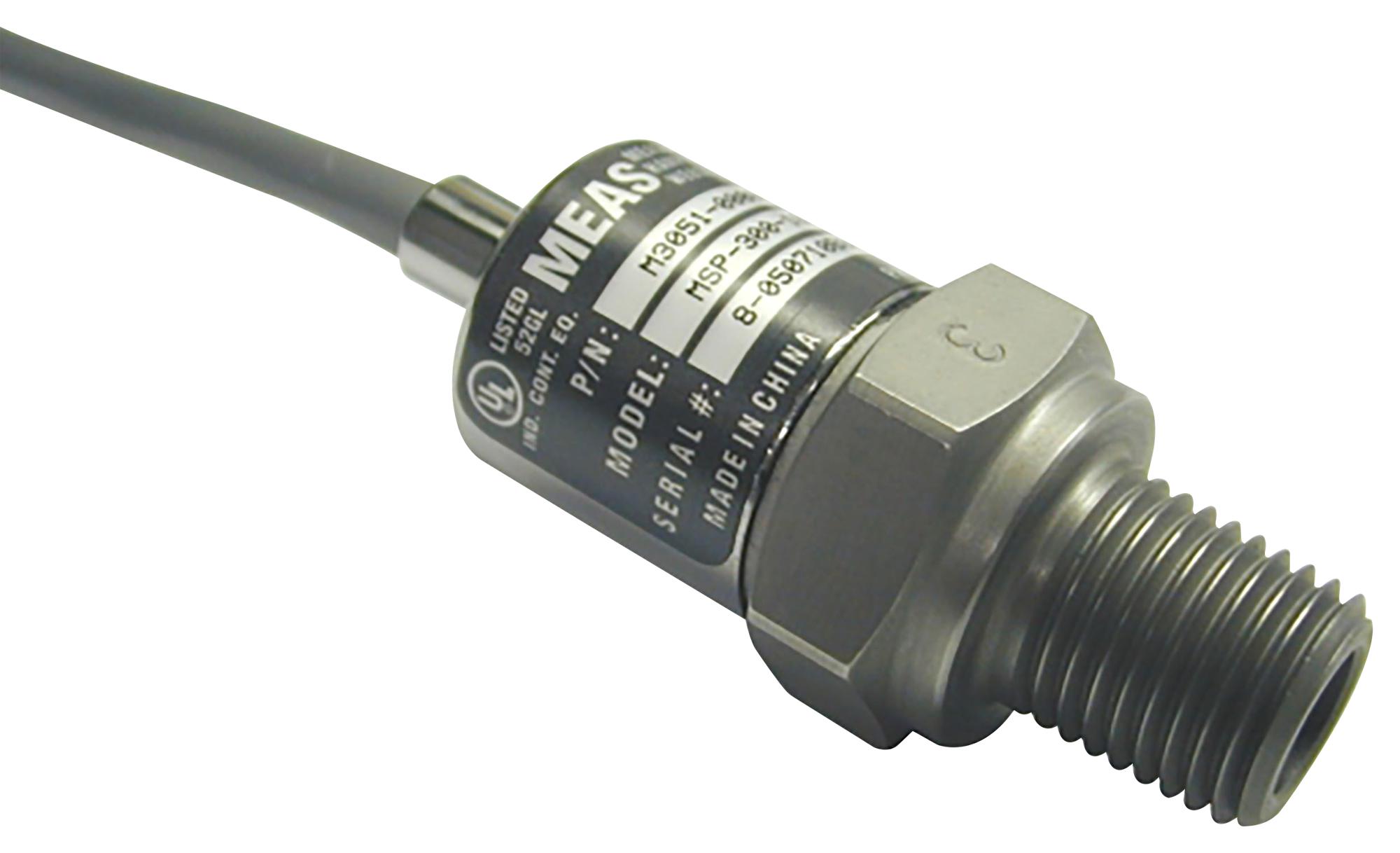

TE CONNECTIVITY M302100000501KPG Pressure Transducer
The MSP300 pressure transducer features a one-piece stainless steel construction, suitable for measuring liquid and gas pressures in challenging environments like contaminated water, steam, and mildly corrosive fluids. It employs TE's Microfused silicon piezoresistive strain gages fused with high-temperature glass, delivering high stability and durability. Available with analog or digital output options, it includes standard ranges up to 15,000 psi, 17-4PH or 316L stainless steel materials, and leak-proof 1/4 NPT threaded pressure cavities, making it ideal for industrial, OEM, and medical applications requiring precise pressure measurement.
TE CONNECTIVITY M302100000501KPG Pressure Transducer Specifications:
- Measurement Range: 0 to 15,000 psi (0 to 1,000 bar)
- Materials: 17-4PH or 316L stainless steel
- Output Options: Analog 0-50mV, 0-100mV, 0.5-4.5V, 1-5V, 4-20mA; Digital SPI or I2C
- Supply Voltage: 3.3V to 5V (digital), 5V (analog)
- Accuracy: ±1% Span
- Temperature Range: -40°C to +85°C (operating), -40°C to +85°C (storage)
- Pressure Port: 1/4 NPT threaded, leak-proof design
- Construction: Single-piece stainless steel, corrosion resistant
- Response Time: <1ms
- Shock & Vibration: Meets MIL-STD-810C standards
- Protection: IP67 rated for water and dust resistance
Buy the TE MSP300 Reliable Pressure Transducer for Industrial Applications
Secure your TE MSP300 pressure transducer online today for reliable and precise pressure measurement in demanding environments. Crafted with stainless steel and employing TE's advanced Microfused technology, it provides a robust solution for industrial, medical, and OEM applications. Choose from multiple analog and digital output options, all rated for pressures up to 15,000 psi. Easy to install with standard 1/4 NPT threaded ports, it ensures leak-proof operation and long-term stability. Improve your project efficiency and measurement accuracy—buy now for quick delivery and dependable performance.
Order your TE MSP300 pressure transducer today and enhance your industrial systems with highly durable, accurate pressure measurement solutions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY M302100000501KPG?
You can click on the BUY or RFQ button to purchase M302100000501KPG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part M302100000501KPG?
You can download the M302100000501KPG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of M302100000501KPG?
TE CONNECTIVITY
