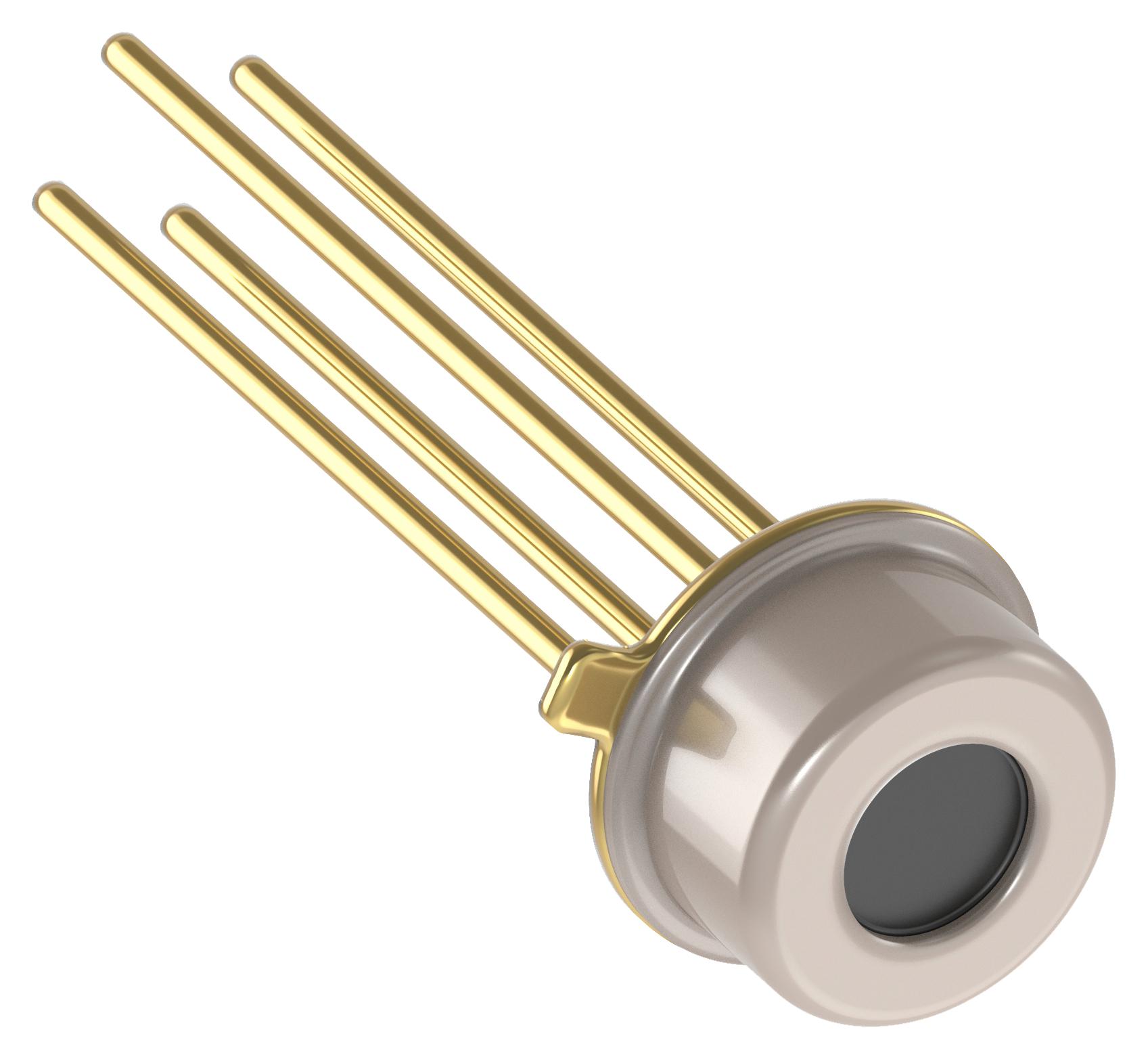

TE CONNECTIVITY GTPCO032 Infrared Temperature Sensor
The GTPCO032 analog infrared thermopile is a highly accurate non-contact temperature sensor designed for industrial, medical, and surface temperature measurements. Encased in an TO-18 package with an 110° field of view, it features a voltage response of 8.4mV at +25°C and a spectral transmission range of 5.5 micrometers. Its robust hermetic enclosure makes it suitable for harsh environments. This thermopile's reliable resistance characteristics and fast response time of 12 ms ensure precise readings, making it ideal for remote surface temperature detection and industrial automation applications.
TE CONNECTIVITY GTPCO032 Infrared Temperature Sensor Specifications:
- Package: TO-18
- Field of View: 110°
- Voltage Response: 8.4mV at +25°C
- Spectral Transmission Range: 5.5 micrometers
- Temperature Coefficient of Voltage Response: -0.45%/K
- Resistance: 40-100 kΩ at +25°C
- Response Time: 12 ms
- Noise Equivalent Voltage: 45 nV/√Hz
- Operating Temperature Range: -20°C to 85°C
- Maximum Operating Temperature: 100°C for 1 hour
- Humidity Range: 0-95% RH, non-condensing
- Filter Transmission Efficiency: 77.0% in 7.5-13.5μm range
- Resistance Temperature Coefficient (RTD): 6028-6328 ppm/K
- Dimensions: Approximate diameter 3.80 mm, length 5.08 mm
- Hermetic seal for durability in demanding environments
Buy the TE Connectivity GTPCO032 – Reliable Infrared Temperature Sensor for Industrial Applications
Purchase the TE Connectivity GTPCO032 infrared thermopile online today and ensure precise non-contact temperature measurements in your industrial or medical projects. Its high sensitivity, fast response, and hermetic enclosure make it perfect for remote surface detection and process monitoring. Enjoy ease of ordering and fast shipping while upgrading your equipment with this dependable infrared sensor designed for demanding environments. Click now to get your reliable temperature sensing solution online and improve your operational accuracy and efficiency.
Order your TE Connectivity SeriesGTPCO032 infrared thermopile today and enhance your temperature measurement accuracy with reliable non-contact sensing.
