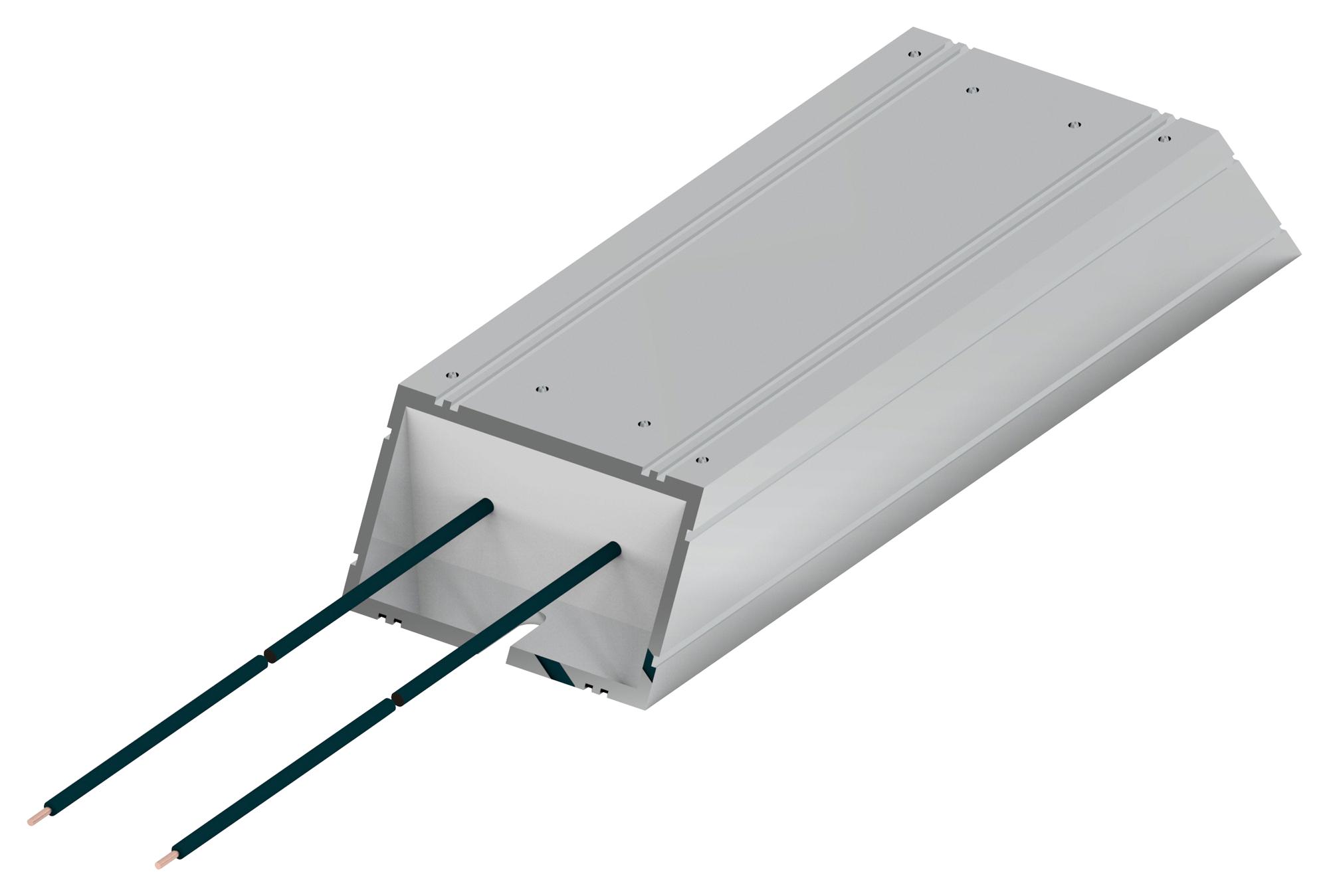

TE CONNECTIVITY HCH165J100RJ Braking Resistor
The Aluminium Housed Braking Resistor series provides high power overload capacity, IP54 protection, and PTFE insulation. Designed for braking applications, these wire wound resistors come with flying leads for flexible connection, withstand temperatures up to 375°C, and feature anodized aluminium profile bodies. They offer reliable electrical characteristics, including substantial resistance ranges (680-2200Ω), maximum voltage of 1100V, and robust ingress protection. These resistors are tested for load life, damp heat, insulation resistance, dielectric strength, and ingress protection, ensuring durability in demanding industrial settings.
TE CONNECTIVITY HCH165J100RJ Braking Resistor Specifications:
- Power Rating: 200W to 500W at 40°C
- Maximum Temperature: 320°C to 375°C depending on model
- Resistance Range: 680Ω to 2200Ω
- Voltage Rating: Up to 1100V
- Ingress Protection: IP54
- Insulation Resistance: >100MQ @ 1000VDC
- Dielectric Strength: 3500VAC for 1m
- Resistor Element: Wire Wound
- Body Material: Anodized extruded aluminium profile
- Flying Leads: 300 mm PTFE insulated, 1000V, 200°C
- Dimensions: Length varies between 165 mm to 335 mm depending on model
- Environmental Testing: Load life, damp heat, insulation resistance, dielectric strength
- Packaging: Individually boxed
- Marking: Type, resistance value, tolerance, batch code
Buy the TE CONNECTIVITY Series HCH165 Braking Resistor: Reliable Industrial Overload Protection
Order the TE Connectivity aluminium housed braking resistor today to ensure reliable overload capacity, high temperature resistance up to 375°C, and IP54 protection. Designed with PTFE insulated flying leads for flexible connections, these resistors are perfect for industrial braking applications. They undergo rigorous testing for load life, damp heat, insulation, and dielectric strength, making them durable and dependable in demanding environments. Secure your industrial systems with these high-performance resistors available for purchase online, delivered quickly, and built to last.
Get TE Connectivity HCH165 today—built for precision, high power overloads, and long-lasting durability in industrial braking systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH165J100RJ?
You can click on the BUY or RFQ button to purchase HCH165J100RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH165J100RJ?
You can download the HCH165J100RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH165J100RJ?
TE CONNECTIVITY
