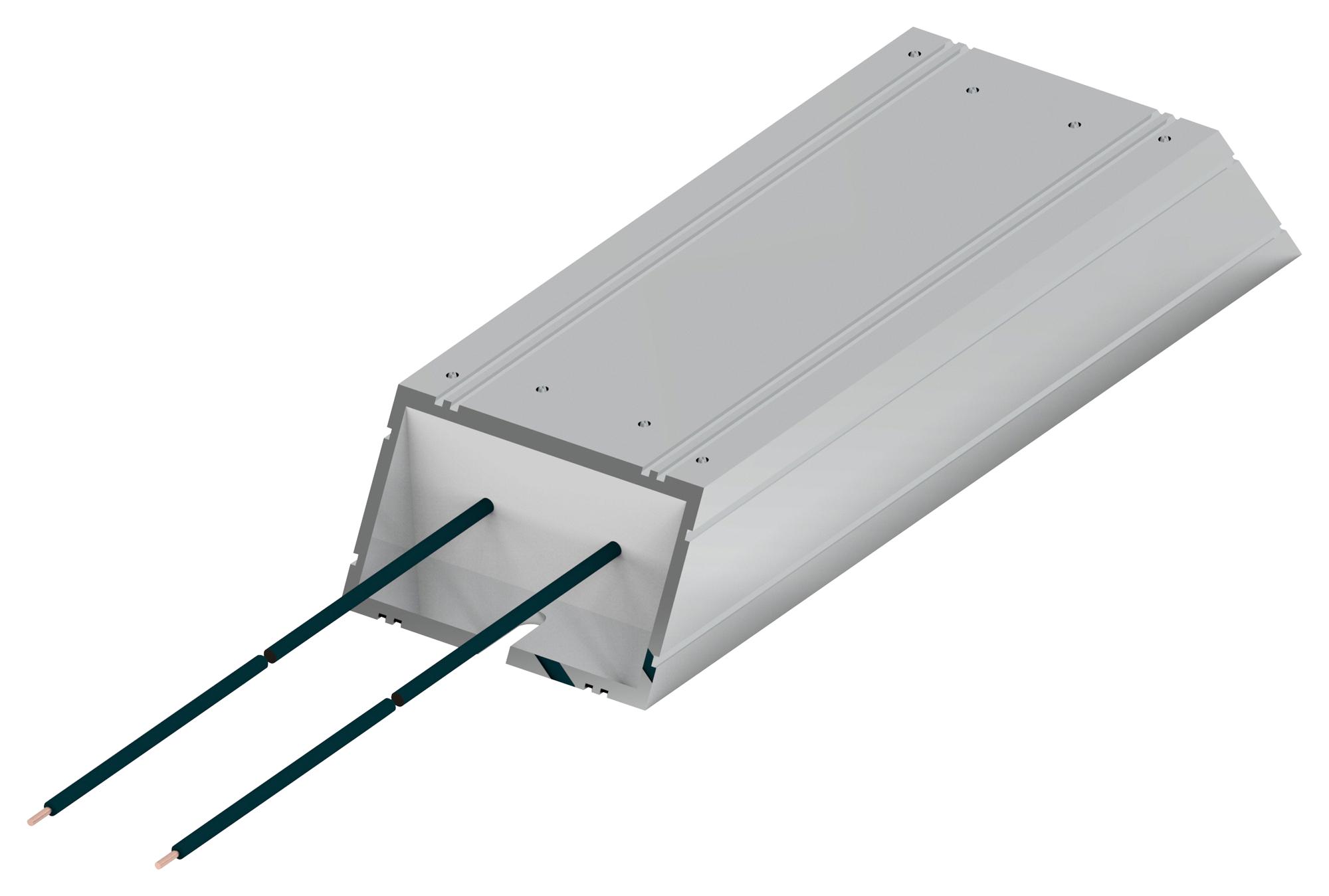

TE CONNECTIVITY HCH165J47RJ Braking Resistor
The Aluminium Housed Braking Resistor from TE Connectivity is designed for high-power overload applications, featuring IP54 ingress protection and PTFE insulation. Available in multiple power ratings ranging from 200W to 500W, these resistors have a maximum temperature of up to 375°C and are suitable for braking in drive systems. They feature flying leads for flexible connections, wire-wound elements, and anodized aluminium bodies that ensure durability and efficient heat dissipation. Ideal for industrial applications requiring reliable performance under overload conditions.
TE CONNECTIVITY HCH165J47RJ Braking Resistor Specifications:
- Power Rating: 200W to 500W
- Maximum Temperature: 320°C to 375°C depending on model
- Resistance Range: 680-2200Ω
- Ingress Protection: IP54
- Insulation Resistance: >100MO at 1000VDC
- Dielectric Strength: 3500VAC for 1m
- Body Material: Anodized aluminium
- Resistor Element: Wire wound
- Lead Length: 300mm PTFE insulated flying leads
- Tolerance: +5%, +10%
- Rated Continuous Working Voltage: up to 1100V
- Load Life: 1000 hours at 45% load
- Damp Heat: 40°C/95% humidity for 56 days
- Dimensions vary by model, with lengths from 165mm to 335mm
- Certifications: UL, CSA, IEC standards
Buy the TE Connectivity Series HCH165 Braking Resistor 500W: Durable Industrial Load Management
Purchase the TE Connectivity aluminium housed braking resistor today for reliable, high-power overload management in industrial drive systems. Designed with PTFE insulated flying leads, IP54 protection, and wire wound elements, these resistors ensure durability and optimal performance under demanding conditions. Available in various power ratings up to 500W and temperatures up to 375°C, they are ideal for braking in applications requiring consistent and safe operation. Secure your industrial components now for enhanced system reliability and safety.
Get TE Connectivity HCH165 today—built for precision and long-lasting durability in industrial braking systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH165J47RJ?
You can click on the BUY or RFQ button to purchase HCH165J47RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH165J47RJ?
You can download the HCH165J47RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH165J47RJ?
TE CONNECTIVITY
