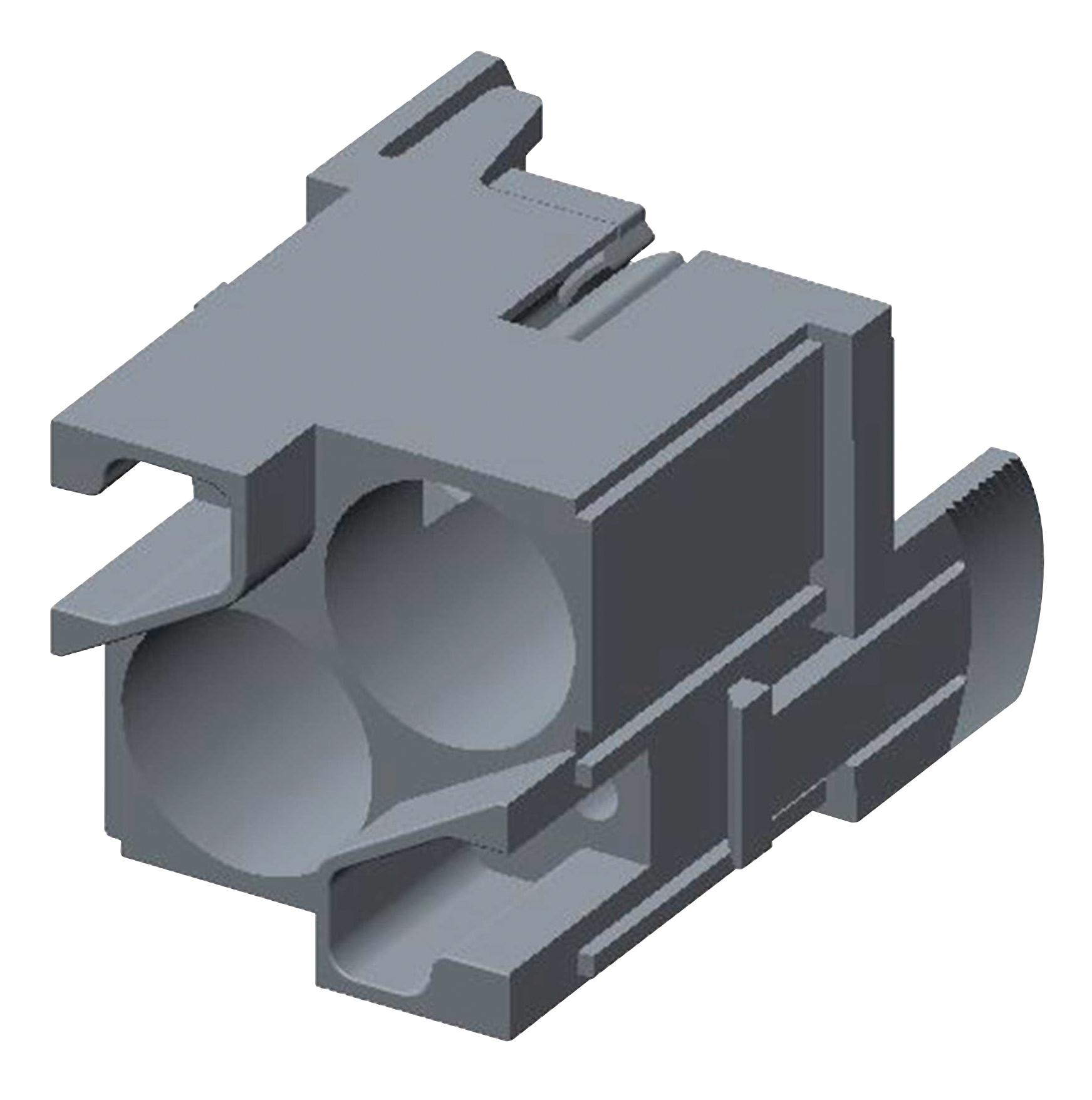

TE CONNECTIVITY T2111027101701 railway connector insert
The HMN series modular insert offers high flexibility for railway connector systems, complying with EN 45545 for flame resistance, smoke density, and toxicity at HL3. Designed for railway rolling stock, it features reliable electrical connections, easy assembly for quick installation, and modular design to reduce costs. Operating within -40°C to 125°C, these inserts support signal, data, and power transfer with various pin configurations from 1 to 216. Crimp contacts are sold separately, making it ideal for traction converters, power distribution, and inter-car jumpers in rail applications.
TE CONNECTIVITY T2111027101701 railway connector insert Specifications:
- Operating temperature range: -40°C to 125°C
- flame retardancy: EN 45545 HL3 compliant
- Pin configurations: from 1 to 216 pins
- Electrical ratings: varies per series, typically 16A/500V
- Material: R22 and R23 standard approved, flame retardant
- Compatible with signal, power, and data transmission
- Modular system with easy assembly
- Crimp contacts sold separately
- Supports railway applications including traction converters and inter-car jumpers
- Compliance: EN 61984, EN 50467, IEC 60512, IEC 60664-1, EN 61373
Buy the TE Series HMN: Railway Connector Standard - R22 R23, HL3
Enhance your railway systems with the TE Series HMN connector insert, designed for high flexibility, safety, and easy installation. It complies with EN 45545 HL3 flame retardancy standards, making it suitable for traction converters, power distribution, and inter-car jumpers. With operating temperatures from -40°C to 125°C, it ensures reliable performance in demanding rail environments. The modular design supports pin configurations from 1 to 216, reducing overall installation costs and providing adaptable, high-quality electrical connections. Crimp contacts are sold separately for customization.
Order your TE Series HMN heavy-duty railway connector insert today and benefit from quick assembly, modular flexibility, and reliable safety in rail projects.
