TE CONNECTIVITY HCH215J10RJ Braking Resistor
The Aluminium Housed Braking Resistor is designed for high power overload capability in industrial braking applications. Featuring IP54 ingress protection and PTFE insulated flying leads, this series ensures reliable performance under demanding conditions. With robust anodized aluminium profiles, resistance values ranging from 680 to 2200 ohms, and power ratings up to 300W at 40°C, these resistors are tested for overloads, load life, and environmental resistance. Ideal for drive systems, they combine durability, high temperature tolerance, and efficient heat dissipation, making them suitable for various industrial automation and motor control systems.
TE CONNECTIVITY HCH215J10RJ Braking Resistor Specifications:
- Power Rating: 200W at 40°C, max temperature 330°C for HCH215
- Resistance Range: 680-2200 ohms, higher/lower values available on request
- Maximum Working Voltage: 1100V, Insulation Resistance: >100MO @ 1000VDC
- Ingress Protection: IP54, Dielectric Strength: 3500VAC for 1m, Material: Anodized aluminium profile
- Resistor Element: Wire wound, TCR: +200ppm/°C, Flanged Lead Length: 300mm, PTFE insulated
- Environmental Tests: Load life 1000 hours at 90 minutes on/30 off cycle, humidity 40°C/95%, dielectric leakage <500HA
- Dimensions: Length varies by model, HCH215 length 215mm, width 196mm, suitable for industrial installation

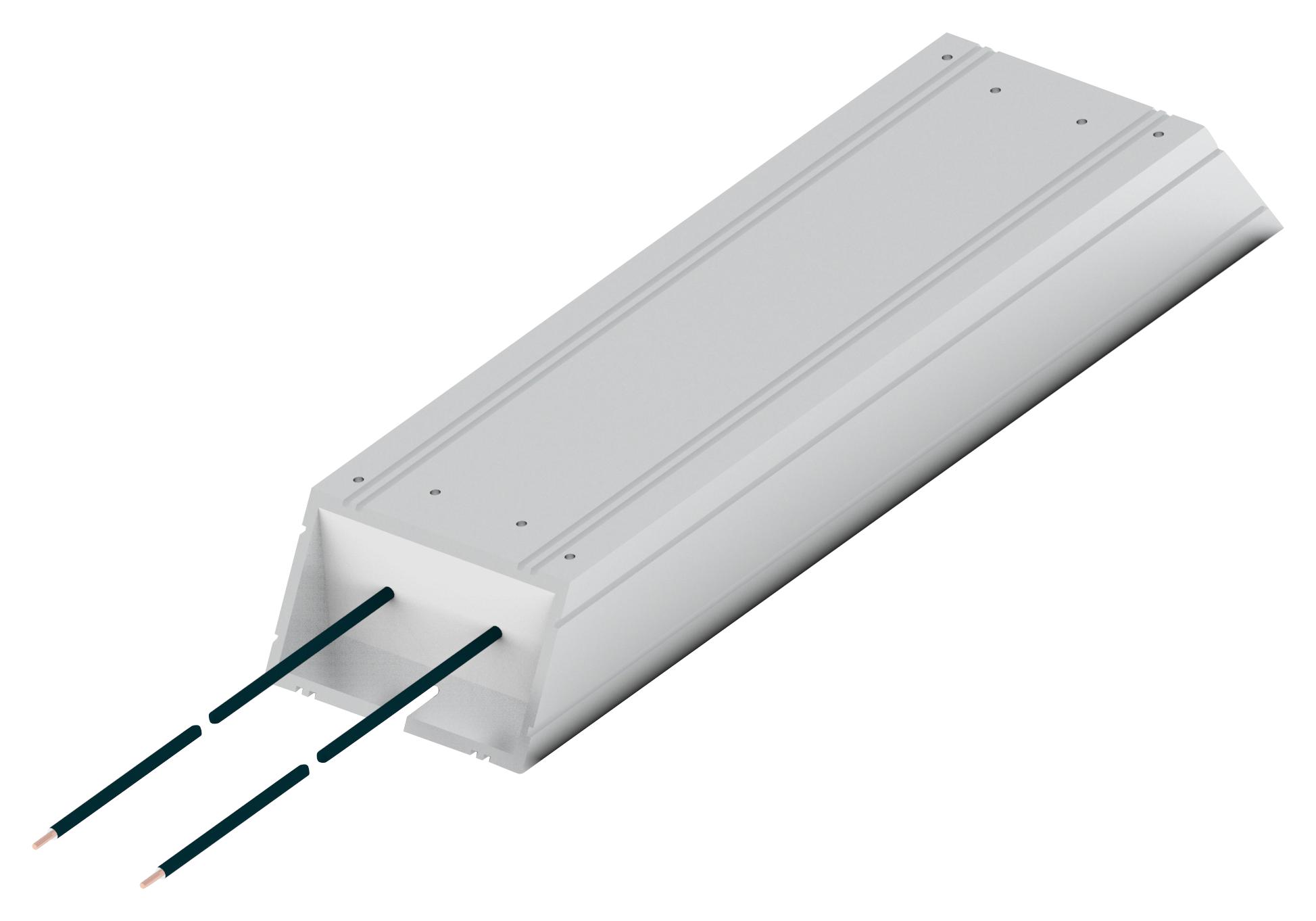

Buy the TE Connectivity HCH215 U–Reliable Braking Resistor for Industrial Applications
Secure your industrial drive systems with the reliable aluminium housed braking resistor from TE Connectivity. Designed for high overloads, it features IP54 protection, PTFE insulated leads, and robust aluminium construction for durability and efficient heat dissipation. Suitable for various motor control and automation applications, this resistor offers excellent environmental and electrical performance. Purchase online today to ensure your machinery operates smoothly under demanding conditions, benefiting from proven quality and easy installation, all supported by TE's extensive expertise in industrial resistors.
Order your TE Connectivity SeriesHCH215 Aluminium Braking Resistor today and enhance your drive system performance with dependable overload protection.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH215J10RJ?
You can click on the BUY or RFQ button to purchase HCH215J10RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH215J10RJ?
You can download the HCH215J10RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH215J10RJ?
TE CONNECTIVITY
