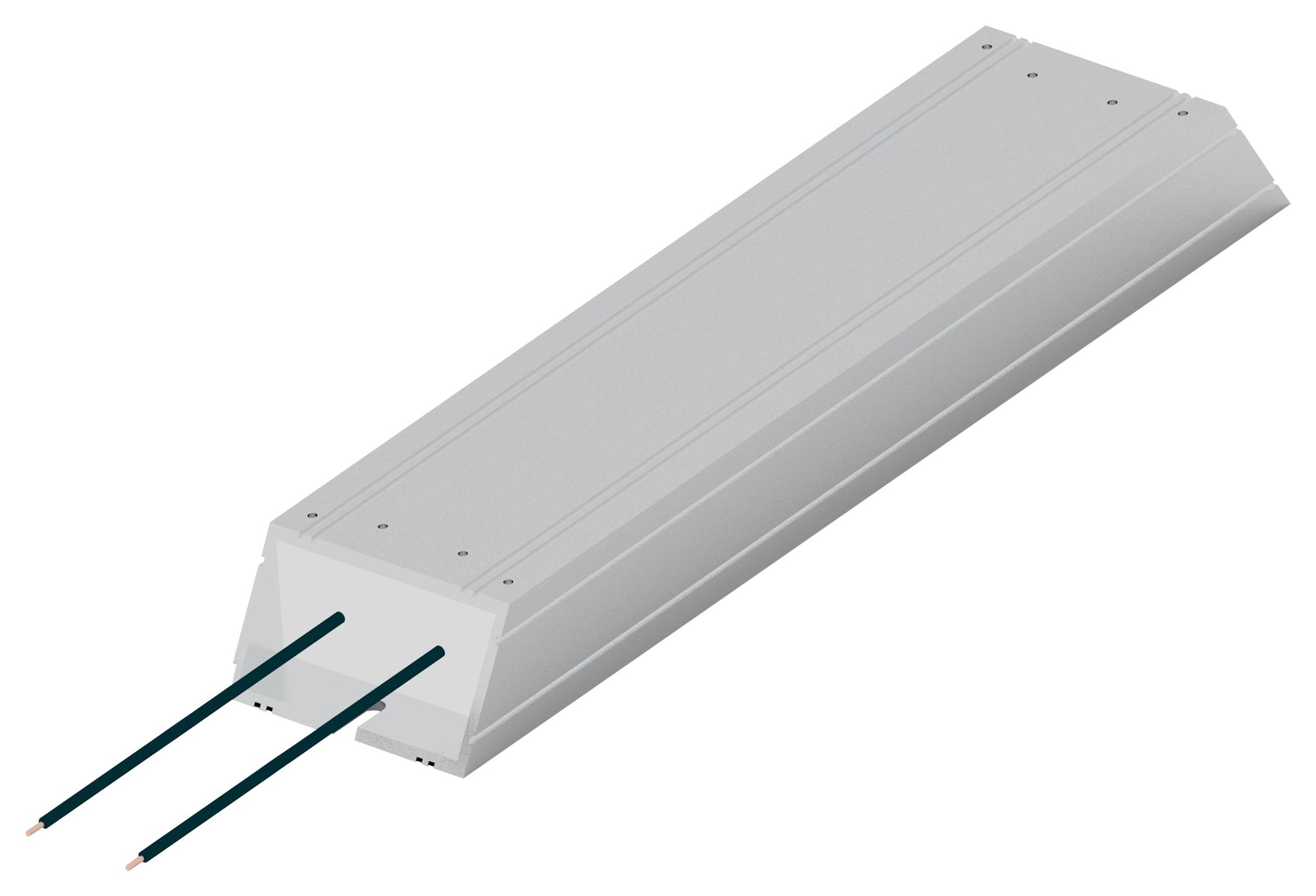

TE CONNECTIVITY HCH265J220RJ Aluminium Braking Resistor
The aluminium housed braking resistor series is designed for high-power overload applications in drive systems. With IP54 protection and PTFE insulated flying leads, these resistors offer reliable performance, high thermal capacity up to 375°C, and extensive overload ratings for pulse loads. Suitable for dynamic braking, the resistor bodies are extruded aluminium with anodized finishes to ensure durability. The series includes various power ratings from 200W to 500W, with resistance ranges from 680Ω to 2200Ω. They are tested for load life, damp heat, insulation resistance, and ingress protection, making them ideal for industrial braking applications.
TE CONNECTIVITY HCH265J220RJ Aluminium Braking Resistor Specifications:
- Power Ratings: 200W to 500W at 40°C
- Maximum Temperature: 375°C
- Resistance Range: 680Ω to 2200Ω
- Insulation Resistance: >100MΩ at 1000VDC
- Dielectric Strength: 3500VAC for 1 minute
- Ingress Protection: IP54
- Resistor Element: Wire wound
- Resistor Body: Anodized extruded aluminium profile
- TCR: +200ppm/°C
- Flying Leads: 300 mm, PTFE insulated, 1000V, 200°C
- Dimension L: 165-335 mm, L1: 146-316 mm
- Rated Continuous Working Voltage: up to 1100V
- Rated Load Life: 1000 hours at specified conditions
- Environmental Tests: Load life, damp heat, insulation resistance
- Certifications: UL, CE
Buy the Buy TE Connectivity Aluminium Housed Braking Resistor Part Number HCH265J220RJ Online
Purchase the TE Connectivity aluminium housed braking resistor HCH265J220RJ online today for high power handling and superior overload capacity. Designed for dynamic braking applications, this resistor offers exceptional durability with IP54 ingress protection, PTFE insulated flying leads, and an anodized aluminium body that ensures longevity in demanding environments. With power ratings up to 500W and resistance values spanning from 680Ω to 2200Ω, it’s ideal for industrial drive systems requiring precise and reliable braking performance. Order now to enhance your energy dissipation and system efficiency.
Buy TE Connectivity aluminium housed braking resistor HCH265J220RJ now and experience reliable high-power performance for industrial drive systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH265J220RJ?
You can click on the BUY or RFQ button to purchase HCH265J220RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH265J220RJ?
You can download the HCH265J220RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH265J220RJ?
TE CONNECTIVITY
