TE CONNECTIVITY HCH265J33RJ Aluminium Braking Resistor
The aluminium housed braking resistor series offers high power overload capability, ingress protection IP54, and PTFE insulated flying leads. Designed for braking applications, these wire-wound power resistors have a robust aluminium body, high insulation resistance, and can handle overload pulses with excellent thermal performance. Ranging from 200W to 500W, they are tested to withstand duty cycles and heat cycles typical in drive systems. Suitable for industrial automation, motor control, and braking systems, they combine durability, efficiency, and easy installation in demanding environments.
TE CONNECTIVITY HCH265J33RJ Aluminium Braking Resistor Specifications:
- Power Ratings: 200W, 300W, 400W, 500W
- Maximum Temperature: 320°C to 375°C depending on model
- Resistance Range: 680Ω to 2200Ω
- Resistance Tolerance: ±5%, ±10%
- Maximum Working Voltage: 1100V
- Insulation Resistance: >100MO @ 1000VDC
- Dielectric Strength: 3500VAC for 1m
- Body Material: Anodized extruded aluminium profile
- Ingress Protection: IP54
- Flying Leads: 300mm PTFE insulated, rated 1000V
- Pulse overload ratings vary by model, tested in duty cycles up to 33.3%
- Dimensions (L x L1): HCH165 - 165mm x 146mm; HCH215 - 215mm x 196mm; HCH265 - 265mm x 246mm; HCH335 - 335mm x 316mm
- Environmental Tests: Load life, damp heat, insulation resistance, dielectric strength, ingress protection

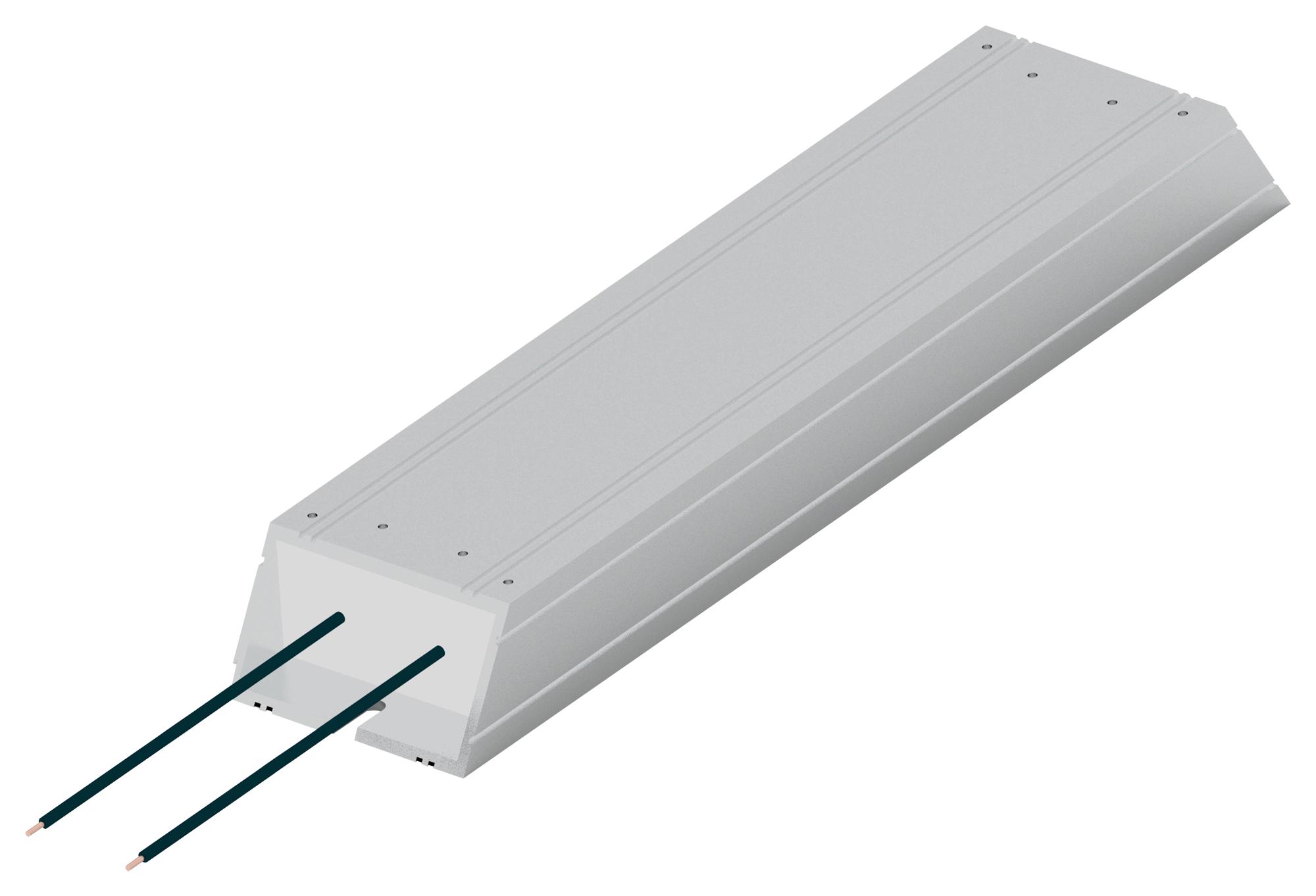

Buy the TE Series Braking Resistor: HCH265 220W
Enhance your industrial motor control and braking systems with the TE aluminium housed braking resistor HCH265 220W. Featuring high overload capacity, IP54 protection, PTFE insulation, and robust aluminium construction, this resistor ensures reliable thermal management and durable performance in demanding environments. Suitable for high-power applications, it offers easy installation, excellent insulation resistance, and tested pulse overload ratings, making it ideal for drive systems, automation, and system braking needs. Purchase online now for quick delivery and optimal system performance.
Buy TE aluminium housed braking resistor HCH265 220W now and experience unmatched reliability and performance in your industrial drive and braking systems.
