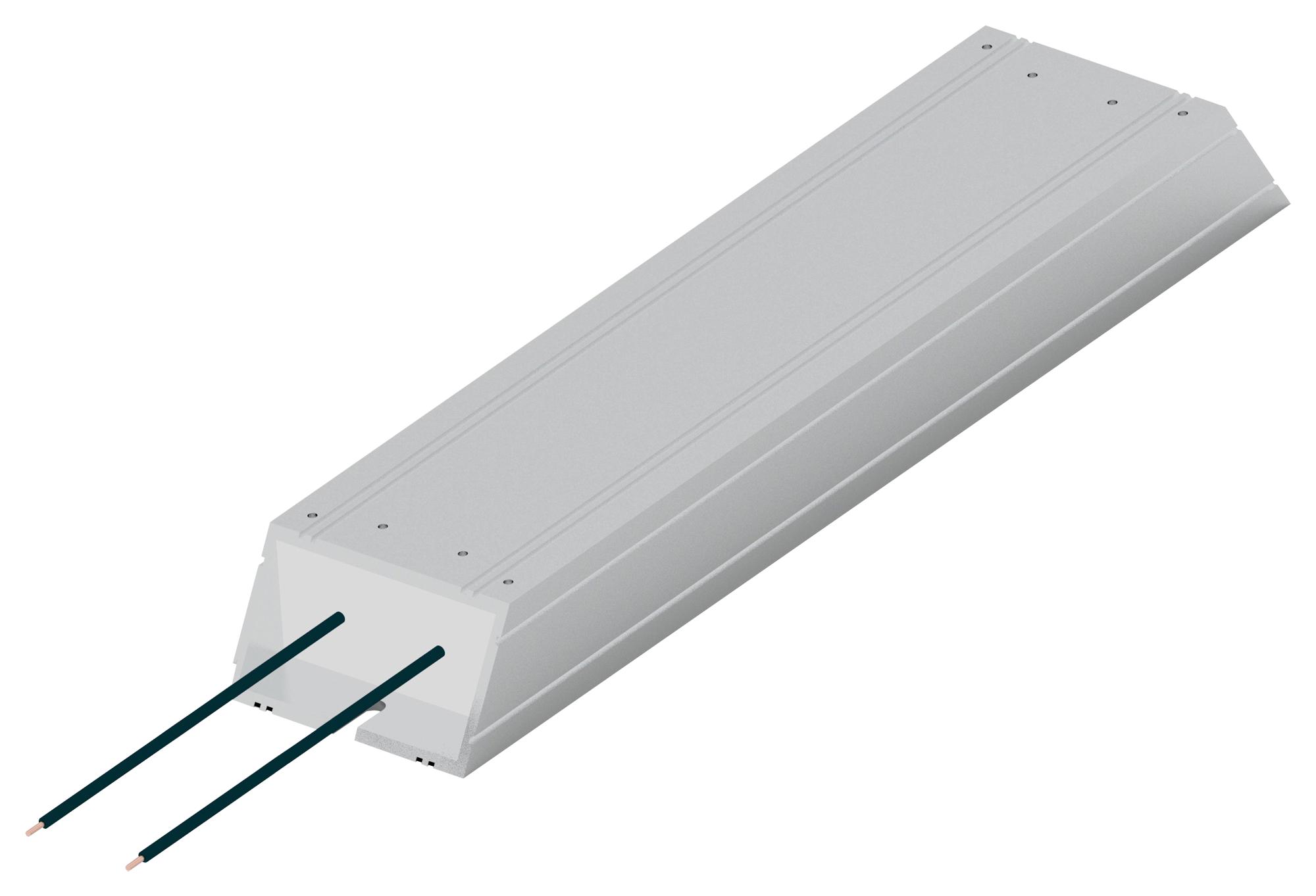

TE CONNECTIVITY HCH265J47RJ Aluminium Braking Resistor
The aluminium housed braking resistor series offers high power overload capacity with IP54 protection, ideal for industrial braking systems. Designed with PTFE insulated wire wound elements and anodized aluminium profiles, these resistors can handle high pulse loads and temperature ranges up to 375°C. The series includes models like HCH165, HCH215, HCH265, and HCH335, with power ratings from 200W to 500W, and maximum resistance values from 680 to 2200 ohms. Suitable for demanding drive and braking applications, they feature flying leads for flexible connections and are tested for durability under load and environmental conditions.
TE CONNECTIVITY HCH265J47RJ Aluminium Braking Resistor Specifications:
- Power Ratings: 200W to 500W at 40°C
- Maximum Temperature: up to 375°C
- Resistance Range: 680Ω to 2200Ω
- Ingress Protection: IP54
- Insulation Resistance: >100MO at 1000VDC
- Dielectric Strength: 3500VAC for 1m
- Wire Wound Element with PTFE insulated flying leads
- Body Material: Anodized extruded aluminium profile
- Overload Rating: Tested with specified overload powers for 1, 5, and 40 seconds
- Environmental Testing: Load life, damp heat, and ingress protection
- Dimensions: Length varies with model, typical length 165mm to 335mm, with designated L and L1 dimensions
- Connection: Flying leads, 300mm PTFE insulated cables
- Certification: Compliant with IEC standards, tested for dust and moisture ingress
Buy the Buy TE Connectivity Aluminium Housed Braking Resistor Part Number HCH265J47RJ Online
Order the high power aluminium housed braking resistor series from TE Connectivity online today. Engineered to handle high overloads, these resistors feature PTFE insulated wire windings and IP54 ingress protection, ensuring durability in industrial environments. With models like HCH165, HCH215, HCH265, and HCH335, offering power ratings from 200W to 500W and temperature capabilities up to 375°C, these resistors are ideal for drive and braking applications requiring reliable performance, flexibility via flying leads, and rigorous environmental durability.
Buy TE Connectivity aluminium housed braking resistor HCH265J47RJ now and ensure reliable high-performance braking in demanding industrial systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH265J47RJ?
You can click on the BUY or RFQ button to purchase HCH265J47RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH265J47RJ?
You can download the HCH265J47RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH265J47RJ?
TE CONNECTIVITY
