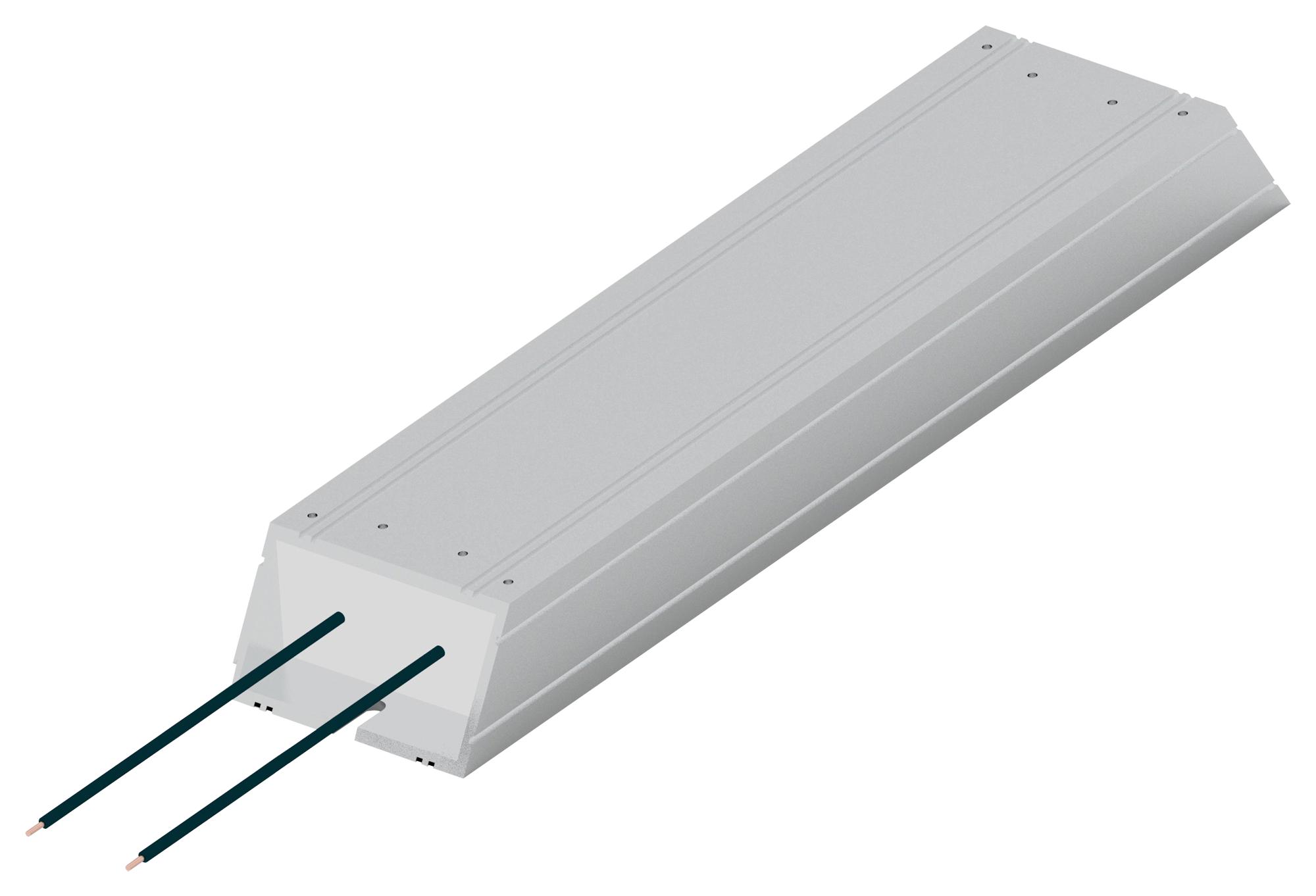

TE CONNECTIVITY HCH265J68RJ industrial braking resistor
This aluminium housed braking resistor series from TE Connectivity is designed for high power overload applications, particularly braking in drive systems. It features IP54 ingress protection, PTFE insulated flying leads for flexible connections, and a wire-wound resistor element on an anodized aluminium profile body. Suitable for demanding industrial environments, these resistors are rated from 200W to 500W with varying resistance ranges and pulse overload capacities up to 75,000W for short durations. They ensure reliable performance with high dielectric strength and resistance characteristics, making them ideal for industrial braking and power dissipation needs.
TE CONNECTIVITY HCH265J68RJ industrial braking resistor Specifications:
- Power Rating: 200W, 300W, 400W, 500W depending on model
- Maximum Temperature: 320°C to 375°C depending on model
- Resistance Range: 680Ω to 2200Ω, higher/lower resistance available on enquiry
- Pulse Overload: Up to 75,000W with specified pulse durations
- Rated Voltage: 1100V maximum
- Insulation Resistance: >100MΩ at 1000VDC
- Dielectric Strength: 3500VAC for 1 minute
- Ingress Protection: IP54
- Dimensions (L): 165mm to 335mm depending on model; L1: 146mm to 316mm
- Resistor Body: Anodized extruded aluminium profile
- Lead Length: 300mm PTFE insulated flying leads
- Operating Conditions: Vertical mounting, damp heat testing for 56 days, load life testing over 1000 hours
- Certification: Complies with industry standards
Buy the TE Connectivity HCH Series – Reliable Braking Resistors for Industrial Applications
Buy your TE Connectivity aluminium housed braking resistor online today. Designed for high overload power dissipation, IP54 protection, and PTFE insulated flying leads, these resistors deliver dependable performance for demanding industrial braking applications. Available in multiple power ratings from 200W to 500W, with resistance values up to 2200Ω, they offer high dielectric strength, insulation resistance, and pulse overload capabilities. Enhance your system's reliability with these durable, high-quality resistors suitable for drive systems and industrial power control projects.
Order your TE Connectivity Series HCH265 braking resistor today and ensure robust power dissipation for industrial drive systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH265J68RJ?
You can click on the BUY or RFQ button to purchase HCH265J68RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH265J68RJ?
You can download the HCH265J68RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH265J68RJ?
TE CONNECTIVITY
