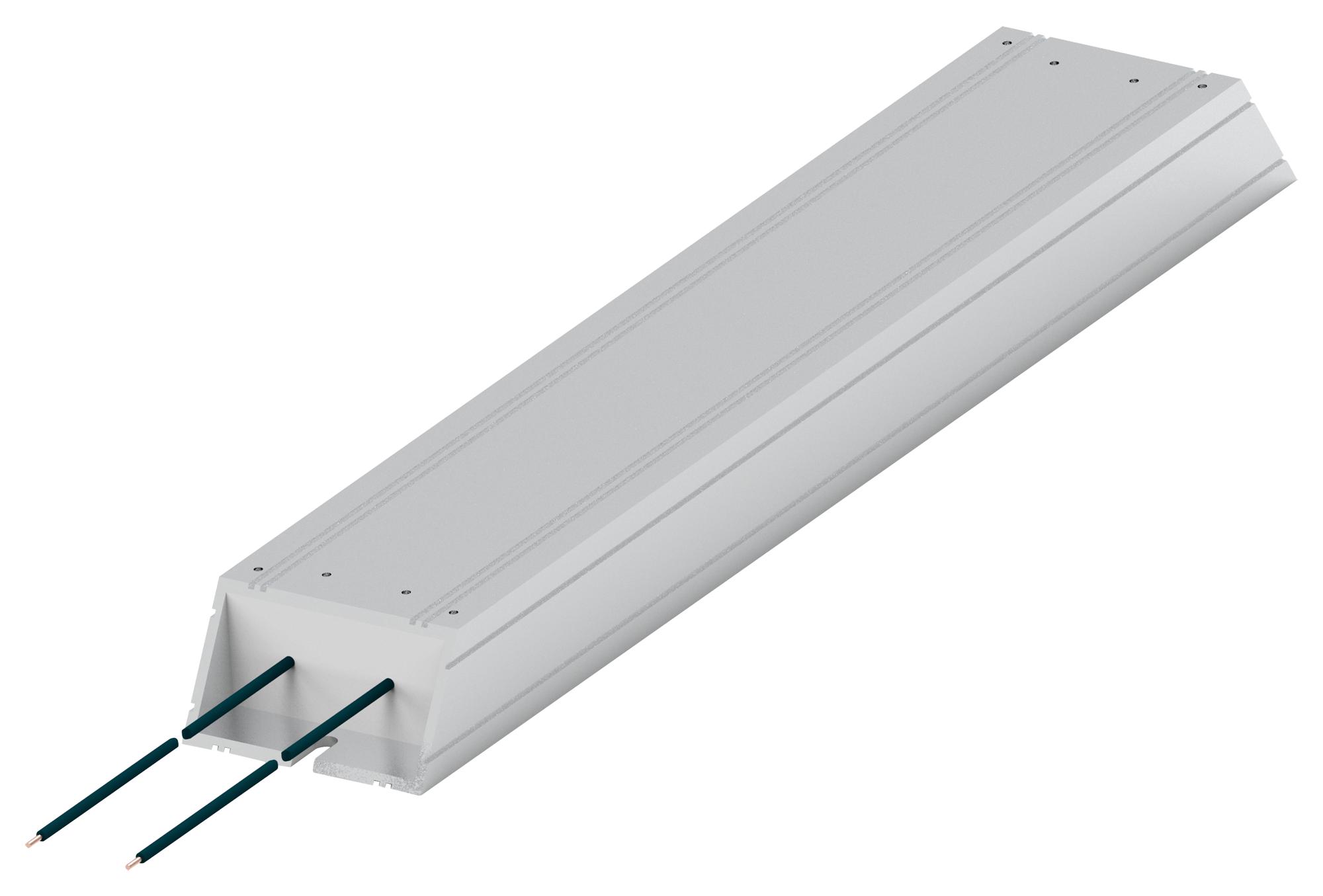

TE CONNECTIVITY HCH335J10RJ Braking Resistor
The Aluminium Housed Braking Resistor series offers high power overload capacity, IP54 ingress protection, and PTFE insulated flying leads. Designed for braking applications, this resistor range features wire-wound elements housed in anodized aluminum profiles, capable of handling power ratings from 200W to 500W at 40°C with maximum temperatures reaching 375°C. They are tested for overload cycles, load life, and environmental resistance, ensuring durability and reliable performance in demanding industrial environments. The resistors are marked with type, resistance value, tolerance, and batch codes, suitable for use in drive systems and industrial braking solutions.
TE CONNECTIVITY HCH335J10RJ Braking Resistor Specifications:
- Power Ratings: 200W to 500W at 40°C, with maximum temperatures up to 375°C
- Resistance Range: 680 ohms to 2200 ohms (higher or lower resistance available on request)
- Maximum Working Voltage: 1100V, Insulation Resistance >100MO at 1000VDC
- Ingress Protection: IP54, tested for dust and moisture ingress resistance
- Body Material: Anodized extruded aluminium profile
- Resistor Element: Wire wound
- Flying Lead Length: 300 mm, PTFE insulated, rated for 1000V and 200°C
- Dimensions (L): Ranges from 165mm to 335mm depending on model
- Pulse Load Ratings: Ranged between 6.8W to 220W for 1s, 5s, and 40s pulses at 40°C
- Environmental Tests: Load life, damp heat, insulation resistance, dielectric strength, and physical durability assessments
- Certifications: Ingress protected, UL and CSA compliant
Buy the TE Connectivity HCH335 – Reliable Braking Resistor for Industrial Applications
Enhance your industrial drive systems with our high-performance aluminium housed braking resistors. Designed for demanding applications, these resistors feature IP54 ingress protection, PTFE insulated flying leads, and a wire-wound element capable of handling power ratings up to 500W at 40°C. They are tested for overload, load life, and environmental durability, offering reliable operation in industrial environments. Easily order online and benefit from quick delivery, durable construction, and technical support for your automation and braking needs.
Order your TE Connectivity Aluminium Housed Braking Resistor today and ensure your drive systems operate with dependable overload capacity and robust design.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH335J10RJ?
You can click on the BUY or RFQ button to purchase HCH335J10RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH335J10RJ?
You can download the HCH335J10RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH335J10RJ?
TE CONNECTIVITY
