TE CONNECTIVITY HCH335J220RJ Industrial Brake Resistor
The aluminium housed braking resistor is designed for high power overload capacity with IP54 protection and PTFE insulated flying leads. Suitable for braking applications, these resistors feature wire wound elements and anodized aluminium bodies with a maximum working voltage of 1100V. The series includes models ranging from 200W to 500W power ratings, capable of absorbing overloads during brake cycles, with temperature ratings up to 375°C. Their robust construction ensures durability in demanding industrial drive systems, providing reliable performance and steady resistance values in various resistance ranges.
TE CONNECTIVITY HCH335J220RJ Industrial Brake Resistor Specifications:
- Power Rating: 200W to 500W depending on model
- Maximum Working Voltage: 1100V
- Resistance Range: 680-2200Ω, 102-2200Ω, 100-2200Ω, 680-2200Ω for different models
- Ingress Protection: IP54
- Body Material: Anodized extruded aluminium profile
- Insulation Resistance: >100MO @ 1000VDC
- Dielectric Strength: 3500VAC for 1m
- Resistor Element: Wire wound
- Operating Temperature: Up to 375°C
- Flammability: UL 94V-0
- Lead Length: 300mm PTFE insulated flying leads
- Dimensions: Vary by model; for example, HCH335L = 335mm length
- Rated Continuous Working Voltage: Based on VP*R, not exceeding 1100V

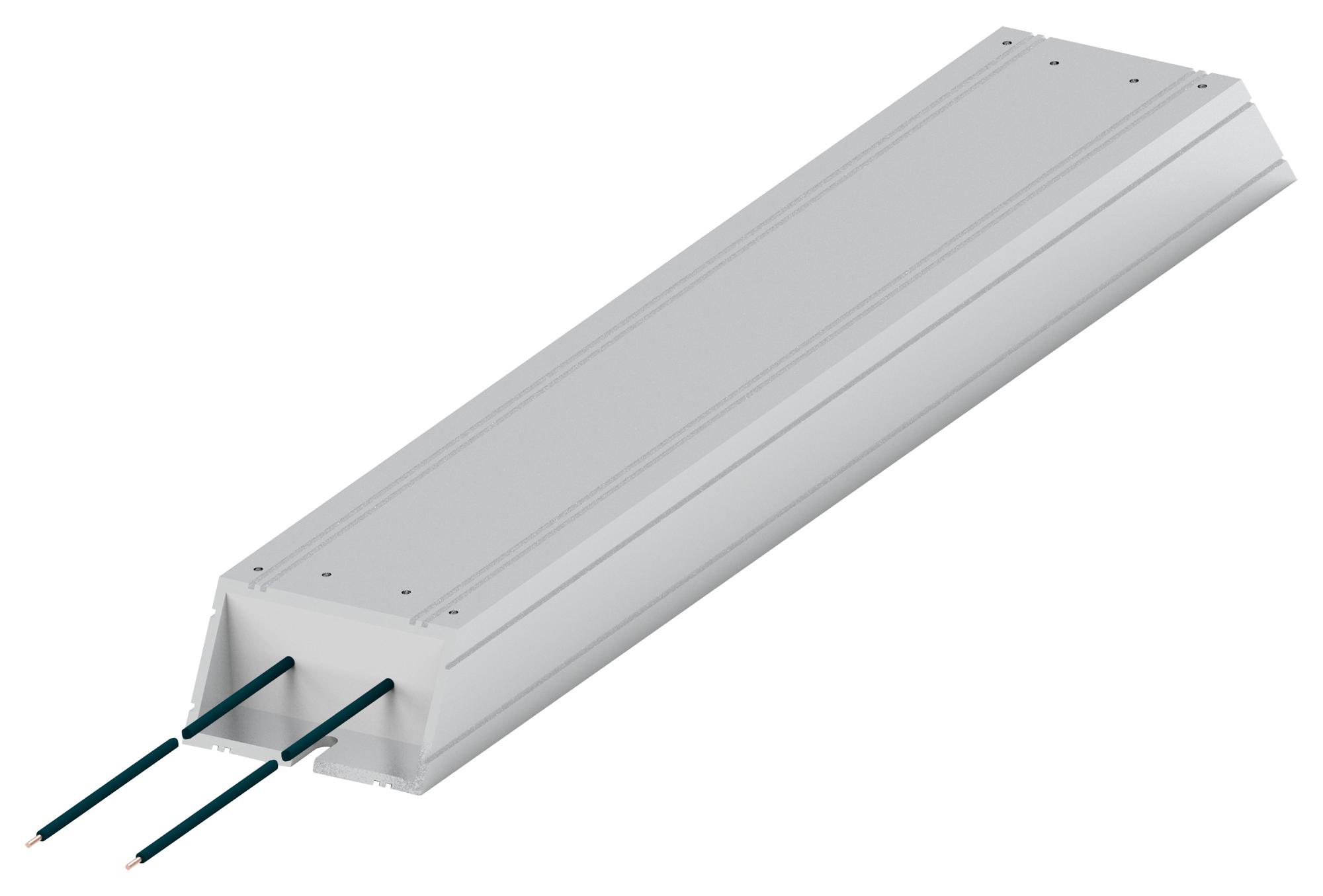

Buy the TE 1773309-4 – Reliable Braking Resistor for Industrial Applications
Purchase the TE aluminium housed braking resistor online today to ensure your drive systems operate efficiently under high overload conditions. These resistors are engineered with wire wound elements and anodized aluminium bodies for maximum durability. Featuring IP54 ingress protection, PTFE insulated flying leads, and thermal ratings up to 375°C, they are ideal for braking applications requiring reliable power absorption. Easy to order in various power ratings including 200W, 300W, 400W, and 500W, ensuring you find the right fit for your industrial needs.
Order your TE Connectivity Series HCH335 aluminium braking resistor today and enhance your industrial drive systems with dependable overload performance and durable design.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH335J220RJ?
You can click on the BUY or RFQ button to purchase HCH335J220RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH335J220RJ?
You can download the HCH335J220RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH335J220RJ?
TE CONNECTIVITY
