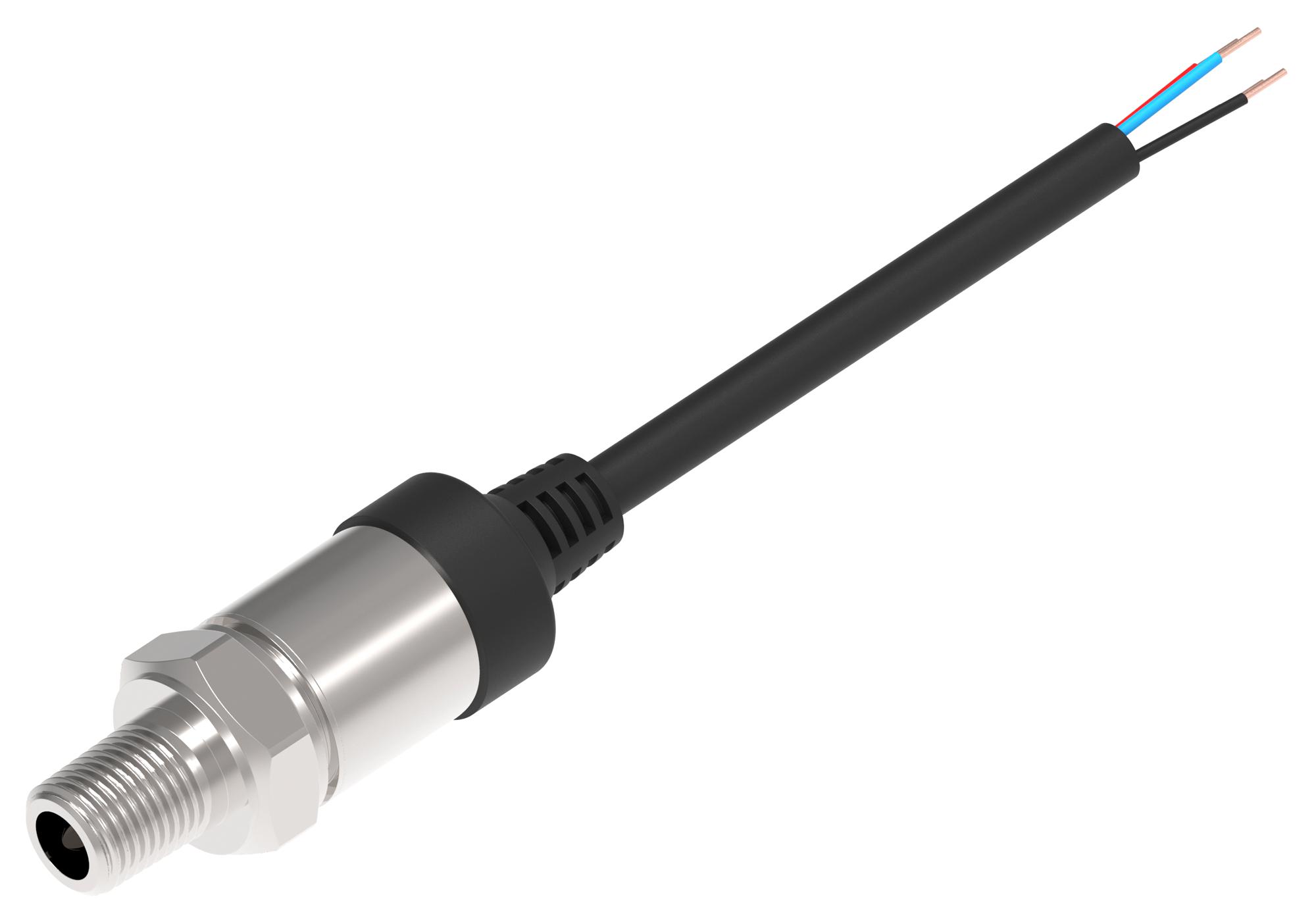

TE CONNECTIVITY M325M000005100PG Pressure Transducer
The M3200 pressure transducer by TE Connectivity offers precise measurement of liquid or gas pressure with stainless steel construction and optional analog or digital outputs. Its compact design, weatherproof IP67 rating, and high durability make it suitable for industrial applications such as pumps, compressors, hydraulic systems, and leak detection. Featuring proprietary Microfused technology with silicon piezoresistive strain gages fused to stainless steel diaphragms, it ensures media compatibility and long-term stability. Standard ranges span from 0 to 10,000 psi, with accuracy within 0.28% and temperature operation from -40°C to +125°C, making it ideal for demanding environments.
TE CONNECTIVITY M325M000005100PG Pressure Transducer Specifications:
- Materials: 17-4PH Stainless Steel, Silicon Piezo-resistive Strain Gages
- Pressure Ranges: 0 to 100 psi up to 0 to 10,000 psi (0 to 7 bar to 700 bar)
- Accuracy: 0.28% total error band, 0.5% zero offset, 1.5% total accuracy
- Outputs: 14-Bit Digital, Analog V/mA, 0.5-4.5V, 4-20mA, 0-5V, 0-10V options
- Electrical: Supply voltage 5-30V, Current consumption 5mA, 35mA in digital mode
- Environmental: Temperature range -40°C to +125°C, Weatherproof IP67/IP66/IP65
- Mechanical: Dimensions suitable for pipe installations, 1/4 NPT thread, withstands 50g shock, 420g vibration
- Performance: Long-term stability 0.25% span/year, Response time <3ms digital, <2ms analog
- Certifications: CE, EN 55022/55011 emissions, IEC 61000 standards, explosion-proof options available
- Connections: M12, Packard, or Form C connectors, vented pressure port options
- Durability: Leak-proof all-metal sealed system, no welds or organics exposed, suitable for contaminated media
- Application range: Pumps, compressors, hydraulic/pneumatic systems, leak detection, medical gases, energy/water management
Buy the TE Series M3200 Pressure Transducer: PhantomPartNumber
Experience accurate pressure measurement with the TE M3200 pressure transducer, designed for industrial applications. Made from durable stainless steel and offering both digital and analog outputs, it ensures reliable performance in harsh environments. Featuring weatherproof ratings, high stability, and a broad range of pressure options up to 10,000 psi, this sensor is ideal for pumps, compressors, leak detection, medical gases, and more. Easily installable with various connectors, it provides dependable, precise data vital for critical system monitoring and control.
Get TE M3200 pressure transducer today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY M325M000005100PG?
You can click on the BUY or RFQ button to purchase M325M000005100PG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part M325M000005100PG?
You can download the M325M000005100PG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of M325M000005100PG?
TE CONNECTIVITY
