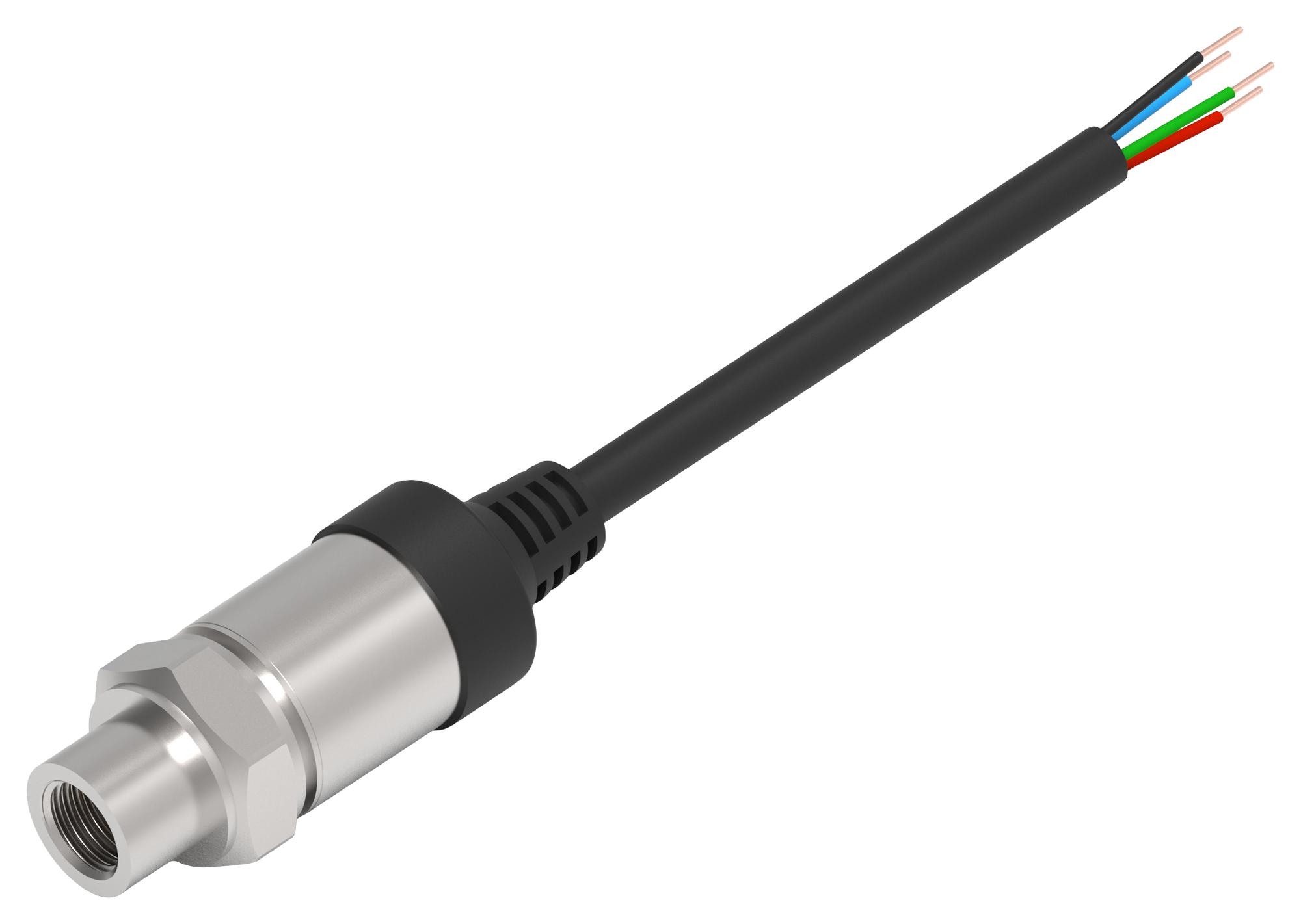

TE CONNECTIVITY M325M00000P250PG Pressure Transducer
The M3200 is a high-precision pressure transducer constructed from durable 17-4PH stainless Steel, suitable for liquid and gas pressure measurement, even in corrosive or contaminated media. Featuring digital or analog outputs, it employs TE's proprietary Microfused silicon piezoresistive technology, ensuring media compatibility and sensor stability. Equipped with multiple standard pressure ranges up to 10,000 psi (700 bar) and weatherproof ratings, it offers exceptional accuracy, long-term stability, and robust construction ideal for industrial OEM applications such as pumps, hydraulic systems, medical gases, and leak detection.
TE CONNECTIVITY M325M00000P250PG Pressure Transducer Specifications:
- Material: 17-4PH Stainless Steel
- Pressure Range: 0 to 100 psi (0 to 7 bar) up to 0 to 10,000 psi (700 bar)
- Output Types: Digital (Counts) and Analog (Voltage/Milliampere)
- Accuracy: 0.28% combined linearity, hysteresis & repeatability
- Zero Offset: 0.5% F.S at 25°C
- Temperature Range: -40°C to 125°C, compensated up to 55°C
- Burst Pressure: 5x rated pressure
- Proof Pressure: 2x rated pressure
- Ingress Protection: IP67 (cable & M12), IP66/IP65 (other configurations)
- Shock Resistance: 50g, MIL-STD-202G
- Vibration: 20g, MIL-STD-810C
- Long-term Stability: 0.25% span per year
- Power Supply: 3.3V for digital; 5V, 8-30V for analog
- Response Time: 3-84 ms depending on output mode
- Temp. Coefficient: ±0.02% F.S/°C
- Connectors: M12, Packard, or Cable Options
- Weatherproof rating: IP67 and IP66/IP65 as per configuration
Buy the TE Series M3200 Pressure Transducer: 250 PSI
Purchase the TE Series M3200 pressure transducer online today and experience precise, reliable pressure measurement for your industrial applications. Crafted from durable stainless steel and capable of measuring pressures up to 10,000 psi, this transducer offers both digital and analog outputs, ensuring seamless integration into your systems. Its weatherproof design and high accuracy make it ideal for hydraulic, pneumatic, medical gas, leak detection, and energy systems. Order now to enhance your operational efficiency with this robust and dependable pressure sensing device.
Get TE Series M3200 pressure transducer today—built for precision, durability, and versatile industrial pressure measurement solutions.
