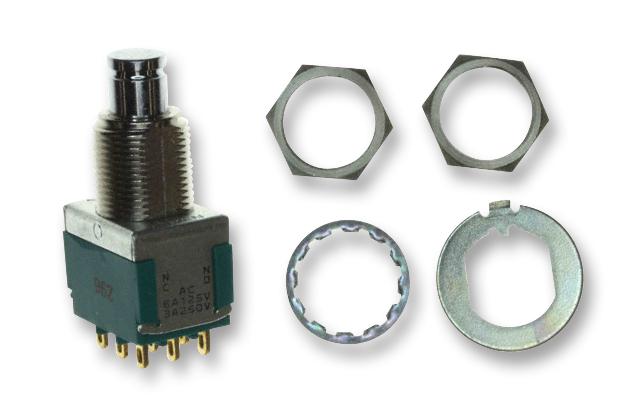

TE CONNECTIVITY MPG306F Pushbutton Switch
The MPG Series Mustang Pushbutton features a 15/32-inch bushing, rated for 6 Amps, with silver-clad copper contacts and gold flash finish. It includes a rugged thermoset case, with a break-before-make contact timing, offering reliable performance at 125/250 VAC. The device operates within -20°C to +80°C, with an actuation force of 2.7–3 lbs. and a life expectancy of 50,000 actuations. Designed for industrial automation, it supports push-on/push-off and momentary functions with various terminal options and durable construction.
TE CONNECTIVITY MPG306F Pushbutton Switch Specifications:
- Contacts: Silver clad copper with gold flash
- Contact Rating: 0.6 A @ 125 VAC, 3 A @ 250 VAC
- Case Material: Thermoset
- Contact Resistance: 10 Milliohms max
- Terminal Seal: Molded in insulation
- Insulation Resistance: 1,000 Megohms min
- Dielectric Strength: 1,500 Volts RMS @ sea level
- Actuation Force: 2.7–3 lbs
- Operating Temperature: -20°C to +80°C
- Travel: 3.51 inches (38 mm)
- Life Expectancy: 50,000 actuations
- Actuator Travel: 38" (3.51")
- Cap Color: Black supplied
- Model Options: Push on/Push off, Momentary, DPST, 3PDT
Buy the Thomas & Betts Series MPG: Pushbutton with 15/32 Inch Bushing: MPG306F
Order the Thomas & Betts Pushbutton Switch online today and enhance your control panel with a reliable, durable device rated for 6 amps. Featuring silver contacts with gold flash, a rugged thermoset case, and versatile terminal options, this switch ensures dependable performance in industrial settings. Suitable for push-on/push-off or momentary operations, it offers a 50,000-cycle life span, operating efficiently from -20°C to +80°C. Perfect for automation, control systems, and manufacturing use, providing top-tier quality and durability.
Get Thomas & Betts MPG306F today—built for precise control and long-lasting durability in industrial automation environments.
