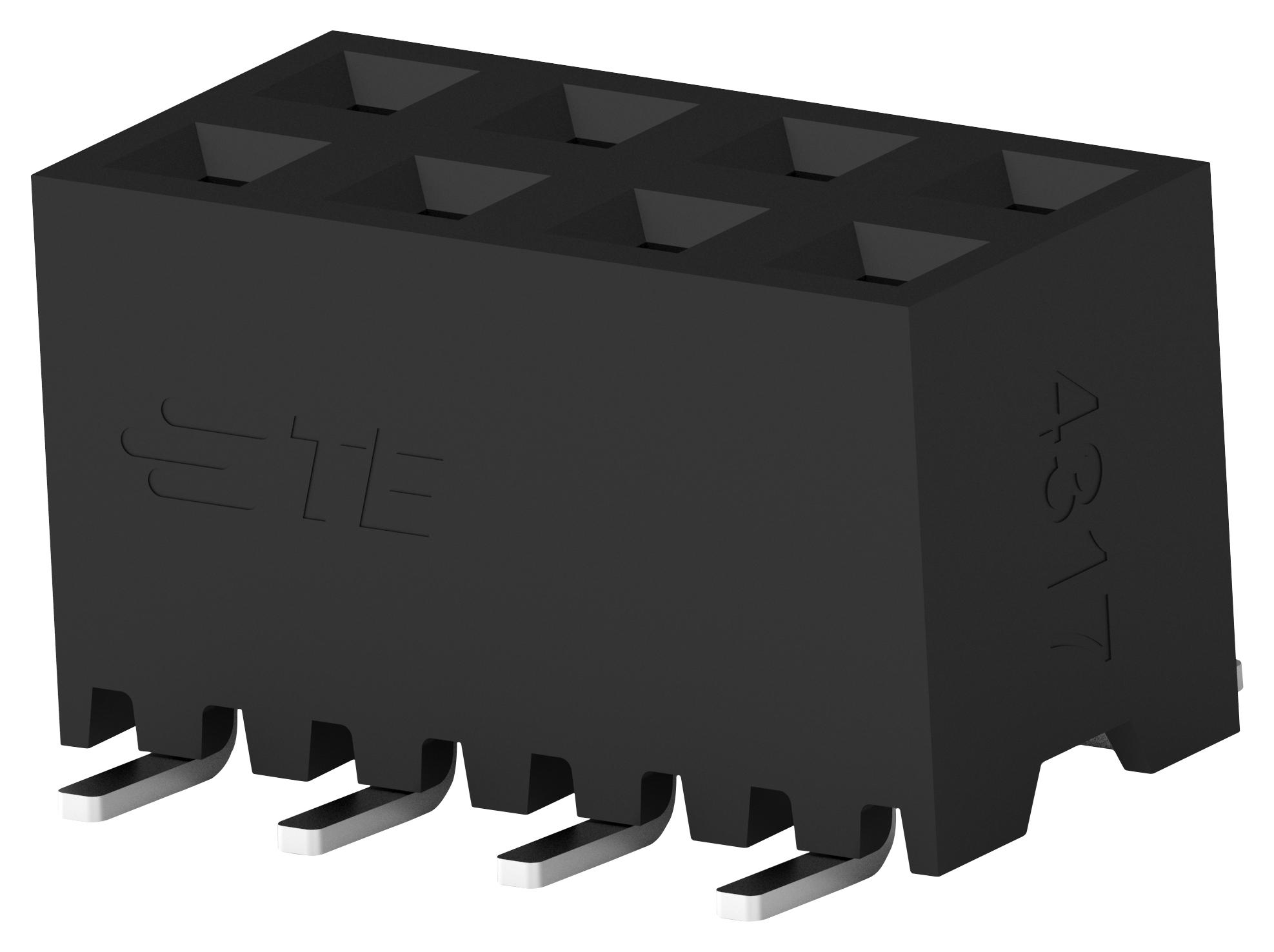

TE CONNECTIVITY 23148468 Industrial Breakaway Header
The TE Connectivity AMPMODU 2mm Breakaway Header offers a space-efficient solution for industrial PCB designs, featuring 2A current rating, gold or tin plating, and a temperature range of -40°C to 125°C. These headers are suitable for automated surface mounting, through-hole reflow, and traditional mounting, with a centerline of 2mm that saves 38% PCB space compared to standard connectors. They are ideal for applications like PLCs, servo drives, and industrial controls, and are compliant with RoHS and REACH standards for environmental safety.
TE CONNECTIVITY 23148468 Industrial Breakaway Header Specifications:
- Centerline: 2.00mm [0.079]
- Contact Dimension: 0.50mm [0.02"] square pins
- Number of Positions: 2 to 25 per row, available in single and double row configurations
- PCB Thickness Compatibility: 1.6mm to 2.4mm [0.063” to 0.094”]
- Operating Temperature: -40°C to 125°C
- Current Rating: 2A (max.)
- Plating Options: 0.76um [30p"] Gold, 0.38um [15u"] Gold, or Tin
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Housing Material: High Temperature Plastic, UL 94VO, Black
- Contact Material: Brass
- Reflow Capability: Up to 260°C
- Environmental Compliance: RoHS & REACH
- Vibration Resistance: No electrical discontinuity greater than 1 microsecond, UL Certified
Buy the TE Connectivity 23148468 – Reliable Breakaway Header for Industrial Applications
Purchase the TE Connectivity Breakaway Header online today to ensure dependable, space-saving connectivity for your industrial PCB assemblies. Designed for automated surface mounting, through-hole reflow, and traditional mounting methods, this connector offers a 2mm centerline that reduces PCB space by 38%. Suitable for PLCs, servo drives, and industrial controls, it features a current rating of 2A, gold or tin plating, and a temperature range of -40°C to 125°C. RoHS and REACH compliant, ensuring both performance and environmental safety.
Buy TE Connectivity 23148468 now and experience unmatched reliability and high-performance PCB connections for industrial controls and automation systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23148468?
You can click on the BUY or RFQ button to purchase 23148468 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23148468?
You can download the 23148468 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23148468?
TE CONNECTIVITY
