TE CONNECTIVITY RN73C2A1K24BTDF Precision Chip Resistor
The RN73 series consists of high accuracy, thin film precision chip resistors designed for applications requiring stable performance and tight tolerances. Featuring resistance values restricted to E96 and E24 grids, these resistors offer excellent TCR down to 5ppm/°C, and tolerances as tight as 0.01%, making them ideal for communications, industrial controls, instrumentation, and medical devices. They are produced with sputtered layers for optimum performance, and are available in multiple sizes including 0402, 0603, 0805, 1206, 1210, 2010, and 2512. Rated power ranges from 0.063W to 0.5W with operating temperature from -55°C to +155°C, and they feature robust dielectric with high insulation resistance. Packaging options include paper tape and embossed plastic tape, suitable for automated assembly, supporting high-volume manufacturing processes.
TE CONNECTIVITY RN73C2A1K24BTDF Precision Chip Resistor Specifications:
- Size options: 0402, 0603, 0805, 1206, 1210, 2010, 2512
- Rated Power @ 70°C: 0.063W to 0.5W depending on size
- Resistance range: 20Ω to 1MΩ, restricted to E96 and E24 value grids
- Tolerance: 0.01%, 0.05%, 0.1%, 1%
- Temperature Coefficient (TCR): 5ppm/°C, 10ppm/°C
- Max Operating Voltage: 25V to 150V depending on size
- Max Overload Voltage: 50V to 300V depending on size
- Operating Temperature Range: -55°C to +155°C
- Insulation Resistance: ≥ 59999 MΩ (dry min.)
- Stability: ±0.05%
- Construction: Alumina substrate, NiCr electrode layers, overcoat (Epoxy)
- Dimensions: Varies by size; for example, 0402: approximately 1.0mm x 0.5mm
- Packaging: Reels, paper tape, embossed plastic tape, compatible with automatic placement equipment

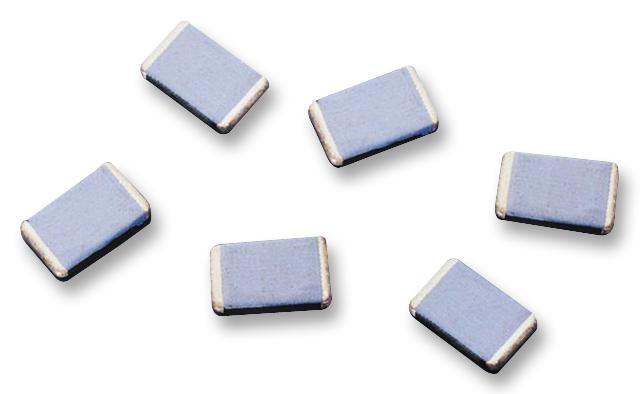

Buy the Buy TE Connectivity RN73 Part Number RN73C2A1K24BTDF Online
Purchase the TE Connectivity RN73 series precision chip resistor online today. Designed for high accuracy and stability, these resistors feature ultra-low TCR of 5ppm/°C, tight resistance tolerances as low as 0.01%, and are suitable for demanding telecommunications, medical, and industrial control environments. Available in various sizes including 0402 to 2512, rated for power from 0.063W to 0.5W, with operating temperatures from -55°C to +155°C. Easy to incorporate into automated manufacturing with tape packaging options, ensuring reliable performance for sensitive circuitry.
Get TE Connectivity RN73C2A1K24BTDF today—built for high stability, ultra-precision, and long-lasting durability in critical applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RN73C2A1K24BTDF?
You can click on the BUY or RFQ button to purchase RN73C2A1K24BTDF from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RN73C2A1K24BTDF?
You can download the RN73C2A1K24BTDF datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RN73C2A1K24BTDF?
TE CONNECTIVITY
