TE CONNECTIVITY RN73C2A1K47BTDF Precision Resistor
The RN73 series are high precision thin film resistor chips showcasing exceptional stability, low TCRs down to 5ppm/°C, and resistance tolerances as tight as 0.01%. Constructed with sputtered Nichrome layers, they are suitable for demanding applications in communications, industrial controls, instrumentation, and medical fields. Available in commonly used sizes like 0402, 0603, 0805, and larger, these resistors feature electroplated matte Sn terminals, robust voltage ratings up to 150V, and operate reliably within -55°C to +155°C. Their physical dimensions and electrical characteristics ensure easy placement and accurate performance in high-precision electronic circuits.
TE CONNECTIVITY RN73C2A1K47BTDF Precision Resistor Specifications:
- Sizes: 0402, 0603 (1.0×0.5 mm), 0805 (2.0×1.25 mm), 1206 (3.2×1.6 mm), 1210 (3.2×2.55 mm), 2010 (4.9×2.55 mm), 2512 (6.3×3.2 mm)
- Resistance Range: 20Ω to 1.5MΩ (depending on size and series)
- Rated Power: 0.063W (0402-0603), 0.125W (0805-1206), 0.25W (1210-2010), 0.5W (2512) at 70°C
- Temperature Coefficient: 5ppm/°C and 10ppm/°C
- Tolerance: 0.01%, 0.05%, 0.1%, 1%
- Max Operating Voltage: 25V to 150V (depending on size)
- Max Overload Voltage: 50V to 300V
- Operating Temperature Range: -55°C to +155°C
- Insulation Resistance: >59999 MΩ (dry min.)
- Stability: ±0.05%
- Material: Nichrome sputtered layers with electroplated matte Sn terminals
- Construction includes alumina substrate, NiCr resistor layer, and external electroplated electrodes
- Packaging: Reels suitable for automatic placement, with peel force of tape approx. 8gf to 60gf
- Soldering: Reflow at 260°C for 10 seconds, wave and iron soldering profile available
- Environmental Standards: MIL-STD-202 tested for thermal shock, moisture, and endurance

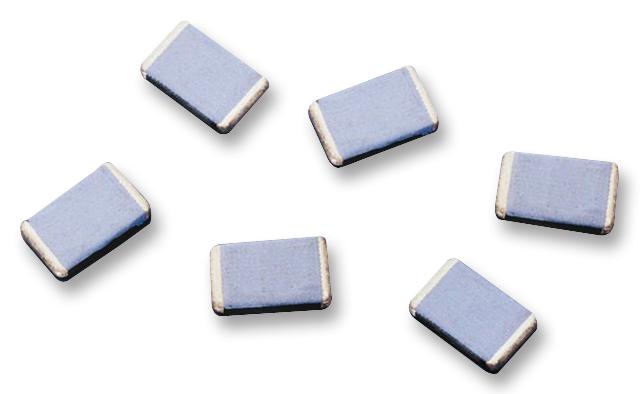

Buy the Buy Connectivity High Precision Resistors Part Number RN73C2A1K47BTDF Online
Purchase the Connectivity RN73C2A1K47BTDF high precision thin film resistor online today. Designed for demanding applications, it offers low resistance tolerances as tight as 0.01%, low temperature coefficient down to 5ppm/°C, and robust construction suitable for industrial, medical, and communication electronics. The resistor's compact sizes and reliable performance ensure easy integration into your high-precision circuits. Order now to benefit from fast delivery, excellent stability, and durable construction engineered for long-lasting, accurate performance in critical applications.
Get Connectivity RN73C2A1K47BTDF today—built for high stability, low TCR, and exact resistance values for your precision circuits.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RN73C2A1K47BTDF?
You can click on the BUY or RFQ button to purchase RN73C2A1K47BTDF from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RN73C2A1K47BTDF?
You can download the RN73C2A1K47BTDF datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RN73C2A1K47BTDF?
TE CONNECTIVITY
