TE CONNECTIVITY RN73C2A226RBTDF Precision Thin Film Resistor
The RN73 series offers high-precision, thin film resistor solutions featuring TCRs as low as 5ppm/°C, resistance tolerances down to 0.01%, and various power dissipation options. These multilayer sputtered resistors provide excellent stability, making them ideal for applications in communications, industrial controls, instrumentation, and medical equipment. Available in compact sizes (0402 to 2512), they have electroplated matte Sn terminals for durability, with specifications that ensure consistent performance under diverse environmental conditions, suitable for high-reliability electronic circuits.
TE CONNECTIVITY RN73C2A226RBTDF Precision Thin Film Resistor Specifications:
- Sizes: 0402 (1.0 x 0.5 mm), 0603 (1.6 x 0.8 mm), 0805 (2.0 x 1.25 mm), 1206 (3.2 x 1.6 mm), 1210 (3.2 x 2.5 mm), 2010 (4.9 x 2.0 mm), 2512 (6.3 x 3.2 mm)
- Rated Power @ 70°C: from 0.063W to 0.5W depending on size
- Resistance Range: 20Ω to 1.5MΩ, restricted to E24 and E96 value grids
- Tolerance: 0.01%, 0.05%, 0.1%, 1%
- Temperature Coefficient (TCR): 5ppm/°C, 10ppm/°C
- Max Operating Voltage: from 25V to 150V depending on size
- Max Overload Voltage: up to 300V
- Operating Temperature Range: -55°C to +155°C
- Insulation Resistance: >59,999MΩ (dry)
- Stability: 0.05%
- Environmental: Meets MIL-STD-202 specifications for overload, insulation resistance, and thermal shock
- Construction: Alumina substrate, NiCr resistor layer, silver electrodes, epoxy overcoat, external Sn terminals
- Packaging: Reels (1000, 4000, 10000, 5000 units) with specified peel tape and carrier layout

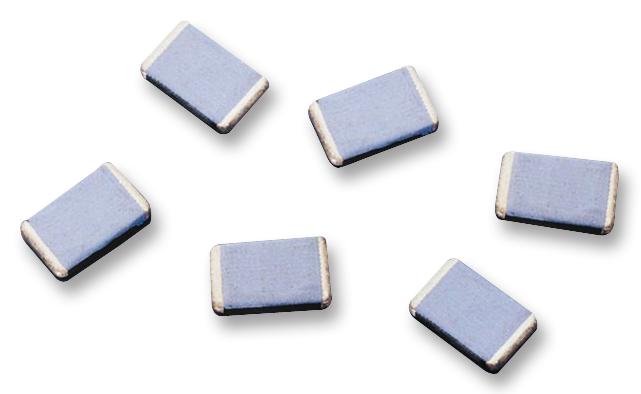

Buy the Connectivity Series RN73 Precision Resistor: RN73C2A226RBTDF
Discover the high-precision Connectivity RN73 series of thin film resistors, offering exceptional stability, low TCR, and tight resistance tolerances. Perfect for critical industrial, medical, and communication applications, these resistors feature sizes from 0402 to 2512 to suit various space requirements. Their durable construction and compliance with MIL-STD-202 ensure reliable operation under demanding environmental conditions. Easily order online today to enhance your electronic designs with these high-performance, dependable resistors that deliver accuracy and longevity for your projects.
Order your Connectivity RN73 Series high-precision resistors today and ensure your electronic projects meet the highest stability and accuracy standards.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RN73C2A226RBTDF?
You can click on the BUY or RFQ button to purchase RN73C2A226RBTDF from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RN73C2A226RBTDF?
You can download the RN73C2A226RBTDF datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RN73C2A226RBTDF?
TE CONNECTIVITY
