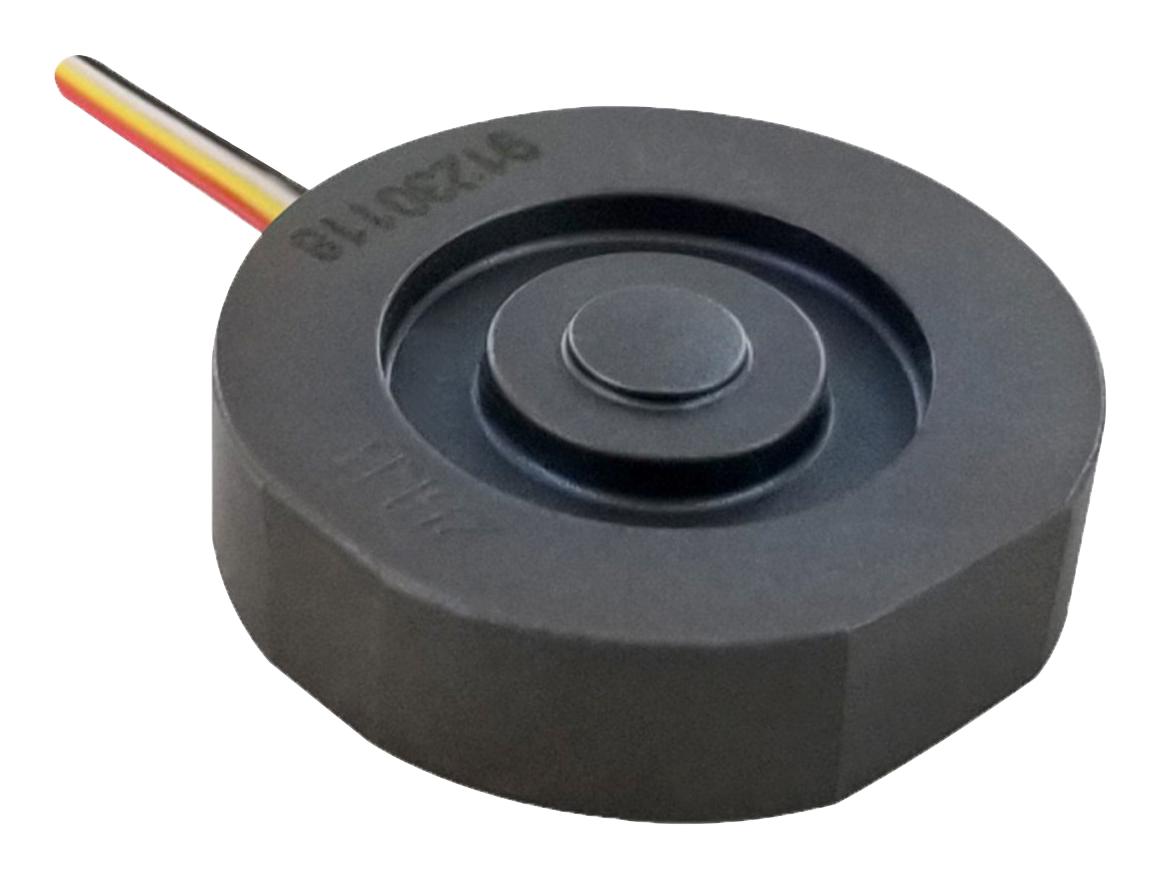

TE CONNECTIVITY FX29K0040B0025L Compression Load Cell
TE Connectivity's FX29 is a versatile, compact compression load cell designed for embedded force sensing applications in medical, industrial, and robotic equipment. Featuring microfused technology with stainless steel enclosure, it offers high stability, low power consumption, and multiple output options including mV, amplified, and digital interfaces. Ranging from 50N to 500N, this rugged sensor provides excellent cycle life and over-range capability, suitable for medical infusion pumps, weighing devices, power tools, and manufacturing equipment, ensuring reliable force measurement in demanding environments.
TE CONNECTIVITY FX29K0040B0025L Compression Load Cell Specifications:
- Load Ranges: 10 lbf (50N), 25 lbf (125N), 50 lbf (250N), 100 lbf (500N)
- Output Types: mV, amplified (0.5-4.5V), digital (I2C)
- Supply Voltage: 5V for analog, 3V for digital
- Maximum Load: 2.5 times rated load
- Cycle Life: 1 million full-scale cycles
- Deflection at Rated Load: 0.03 mm
- Material: Stainless steel build with microfused sensing element
- Ingress Protection: IP43
- Temperature Range: -40°C to +85°C for storage, 0°C to +50°C for operation
- Environmental Resistance: ESD, EMI/RFI protected
- Dimensions: Length ~40mm, cable length options: 40mm or 100mm
- Voltage Output Range: ~20mV/V span with high stability
- A/D Resolution: 14 bits for digital output
- Response Time: 3 ms in digital mode, 2 ms in analog mode
- Insulation Resistance: 50 MΩ at 250VDC
Buy the TE Connectivity Series FX29 Compression Load Cell: FX29K0040B0025L
Enhance your force sensing capabilities today by purchasing the TE Connectivity FX29 compression load cell online. This compact, rugged sensor offers multiple output options—including mV, amplified, and digital—making it suitable for medical, industrial, and robotics applications. With high cycle life, excellent stability, and IP43 protection, the FX29 ensures precise measurements in demanding environments. Order now and integrate reliable force measurement into your design for improved performance and durability, backed by the trusted TE Connectivity brand.
Buy TE Connectivity FX29 compression load cell now and experience unmatched reliability and performance for force measurement in demanding applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY FX29K0040B0025L?
You can click on the BUY or RFQ button to purchase FX29K0040B0025L from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part FX29K0040B0025L?
You can download the FX29K0040B0025L datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of FX29K0040B0025L?
TE CONNECTIVITY
