TE CONNECTIVITY RN73C2A2K74BTDF Thin Film Precision Resistors
The RN73 series comprises high-precision thin film chip resistors designed for demanding applications such as communications, industrial controls, instrumentation, and medical devices. Featuring TCRs as low as 5ppm/°C, resistance tolerances down to 0.01%, and various power dissipations, these resistors utilize sputtered layers for stability and performance. Available in multiple sizes (0402, 0603, 0805, 1206, 1210, 2010, 2512), they offer excellent stability, insulation resistance, and thermal endurance, suitable for precise circuit environments requiring reliable components.
TE CONNECTIVITY RN73C2A2K74BTDF Thin Film Precision Resistors Specifications:
- Physical sizes: 0402 (1.0×0.5mm), 0603 (1.5×0.8mm), 0805 (2.0×1.25mm), 1206 (3.0×1.2mm), 1210 (3.1×2.0mm), 2010 (4.9×2.0mm), 2512 (6.3×2.0mm)
- Rated Power @ 70°C: 0.063W (0402, 0603, 0805), 0.125W (1206, 1210), 0.25W (2010), 0.5W (2512)
- Resistance Range: 20Ω to 1MΩ depending on size and model, within E96/E24 value grids
- Tolerance: 0.01%, 0.05%, 0.1%, 1%
- Temperature Coefficient: 5ppm/°C, 10ppm/°C, or higher as specified
- Max Operating Voltage: 25V to 150V depending on size, overload voltage up to 300V
- Environmental: Operating temperature -55°C to +155°C, insulation resistance >59999 MΩ, stability ±0.05%
- Construction: Alumina substrate with NiCr resistor layer, gold-plated electrodes, epoxy overcoat, and Sn external electrodes
- Soldering Profiles: Reflow peak at 260°C for 10s, wave soldering at 260°C for 10s, iron soldering at 410°C for 5s
- Packaging: Embossed plastic tape, paper tape reels, quantities up to 5000 units per reel
- Compliance: MIL-STD-202 Level 304, 108A, 210E, 302, 1076 for various environmental and electrical tests

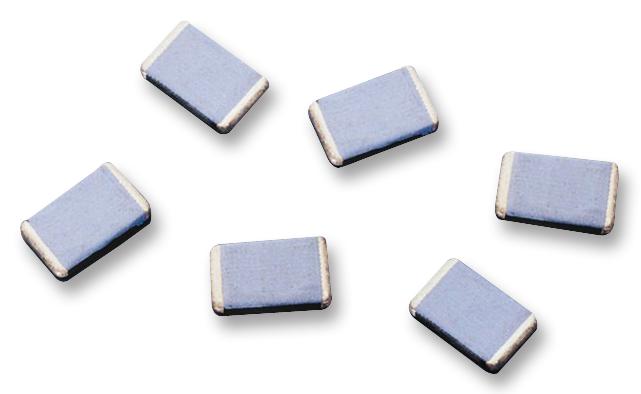

Buy the Buy Connectivity Thin Film Precision Resistors Part Number RN73C2A2K74BTDF Online
Purchase Connectivity RN73 series high-precision thin film resistors online for circuits demanding low TCR, tight tolerances, and exceptional stability. These resistors are ideal for communications, industrial controls, instrumentation, and medical devices. They feature various package sizes, low power dissipation, high insulation resistance, and robust environmental performance, ensuring consistent operation in demanding environments. Buy now to enhance the accuracy and reliability of your electronic systems with these meticulously manufactured, durable precision resistors.
Buy Connectivity RN73 series resistors now and experience unmatched reliability and performance for precise, high-stability circuit applications.
