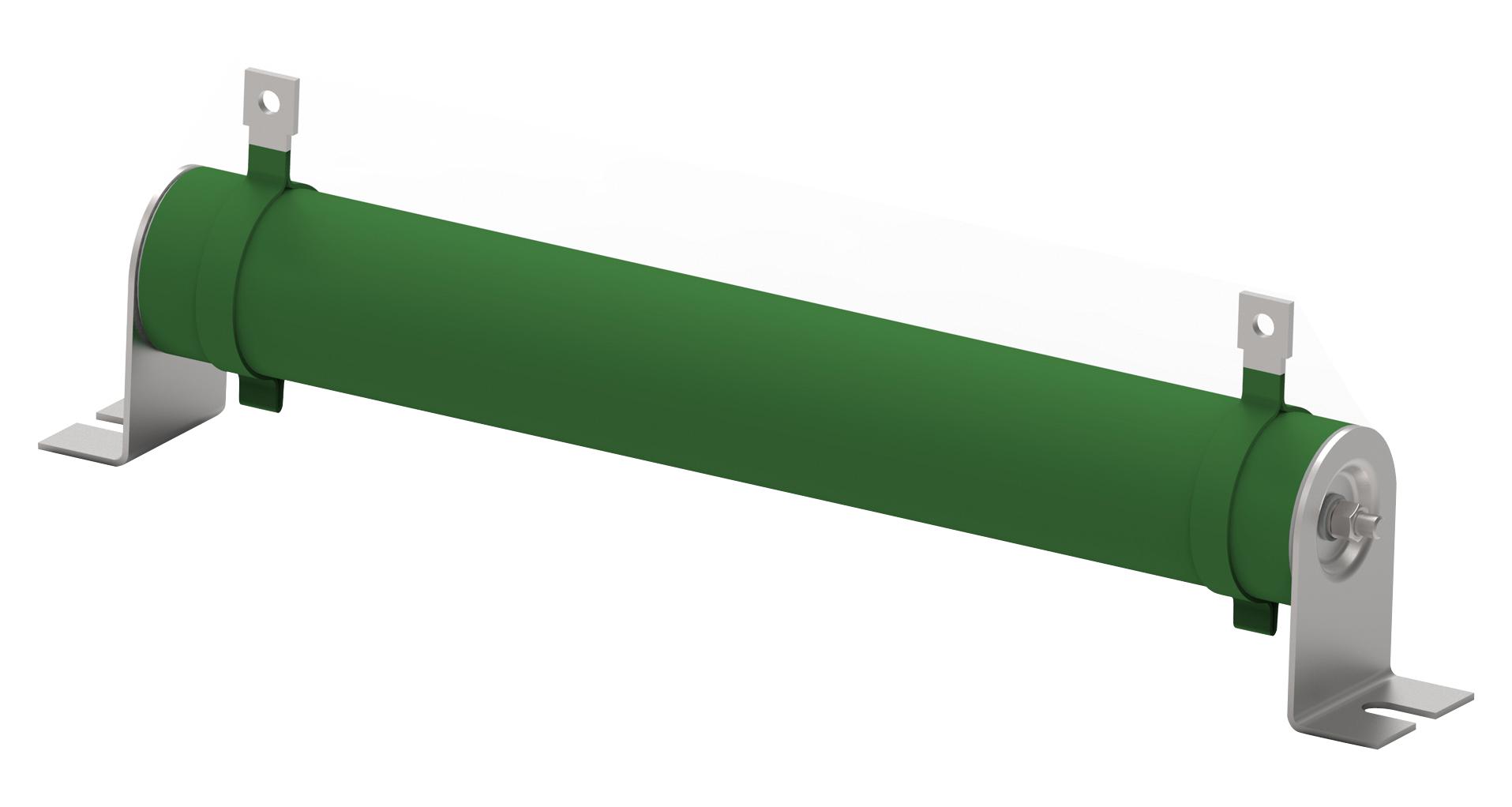

TE CONNECTIVITY TE400B2K7J Power Resistor
The TE Series high-power wire-wound resistors are flameproof coated tubular ceramic core resistors designed with standard and edge-wound winding methods to enhance power capacity. Suitable for heavy machinery, electrical equipment, motor control, and load testing, these resistors offer high stability and reliability. They operate from -55°C to +155°C, can withstand threefold rated power overloads for 5 seconds, and have a dielectric strength of at least 2,500 VAC. The resistors feature UL94V flameproof coating, an insulation resistance of ≥20 MΩ at 500 VDC, and include a mounting bracket for easy installation.
TE CONNECTIVITY TE400B2K7J Power Resistor Specifications:
- Dimensions: 326 x 40 x 81 mm
- Power Rating: 400 W
- Resistance Value: 2.7K Ω
- Resistance Class: 1kΩ - 1MΩ
- Passive Component Tolerance: 5%
- Element Type: Wire Wound
- Flammability: UL 94V-0
- Temperature Range: -55°C to +155°C
- Dielectric Strength: ≥2,500 VAC
- Insulation Resistance: ≥20 MΩ at 500 VDC
- Mounting: Standard bracket included
- Mount Style: Chassis mount with terminals
- Construction: Flameproof coated tubular ceramic core
- Winding Method: Standard and edge-wound (corrugated)
- Material: Ceramic core, flameproof coating
- Usage Conditions: Suitable for heavy-duty industrial applications
Buy the CGS Series Power Resistor: 326 x 40 x 81 mm 400W 2.7K Ω TE400B2K7J
Order the CGS TE power resistor now for high-stress electrical applications requiring durable and reliable components. With a robust ceramic core, flameproof coating, and 400W power capacity, this resistor is ideal for heavy machinery, motor control, and load testing. Easy to install with included mounting brackets, it withstands extreme temperatures from -55°C to +155°C and features high dielectric strength and insulation resistance. Purchase online today for quick delivery and high-performance performance in demanding industrial settings.
Get CGS TE high-power wire-wound resistor today—built for stability, reliability, and demanding industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TE400B2K7J?
You can click on the BUY or RFQ button to purchase TE400B2K7J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TE400B2K7J?
You can download the TE400B2K7J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TE400B2K7J?
TE CONNECTIVITY
