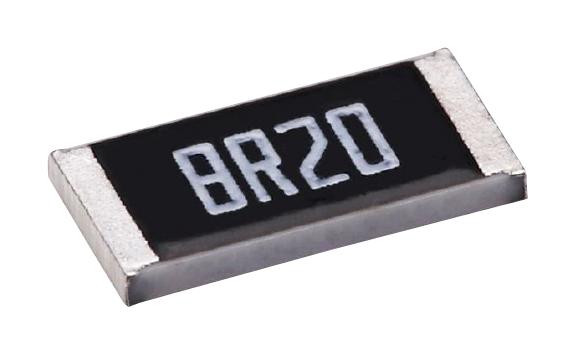

TE CONNECTIVITY RP73PF1E11KBTD Precision Power Resistor
The RP73 series comprises high-precision, SMD thin film power resistors with tolerance down to 0.05% and TCR as low as ±15 ppm/°C. Designed for high reliability, it offers power ratings up to 1.0W, operating voltages up to 200V, and temperature ranges from -55°C to +155°C. Constructed on alumina substrates with nickel-chromium electrodes, these resistors feature precise dimensions, low temperature coefficient, and excellent stability, making them ideal for communications, industrial, medical, and instrumentation applications.
TE CONNECTIVITY RP73PF1E11KBTD Precision Power Resistor Specifications:
- Physical Size: 0402, 0603, 0805, 1206, 1210, 2010, 2512 (all in millimeters and inches as specified)
- Resistance Range: 10Ω to 499KΩ (varies by size)
- Tolerance: ±0.05% and ±1.0% depending on series
- Temperature Coefficient: ±15 ppm/°C to ±50 ppm/°C
- Power Rating: 0.1W (0402), 0.166W (0603), 0.25W (0805), 0.33W (1206/1210/2010), 1.0W (2512)
- Maximum Operating Voltage: 50V to 200V depending on size
- Overload Voltage: Up to 400V for larger sizes
- Operating Temperature Range: -55°C to +155°C
- Insulation Resistance: >1000 MΩ
- Stability: 0.05% to 0.5%
- Material: Alumina substrate with NiCr resistor layer, Sn finish
- Dimensions: Refer to sizes specified, e.g., 0402 - 1.00 x 0.50 mm, 2512 - 6.30 x 0.15 mm
- Construction: Sputtered metal film on high grade alumina, protective overcoat
- Environmental: Tested per MIL-STD-202 methods, high humidity, thermal shock, and vibration resistant
Buy the Buy TE Connectivity RP73 Series Part Number RP73PF1E11KBTD Online
Purchase the TE Connectivity RP73 precision power resistor online today and discover the reliability and high performance ideal for industrial, communication, and medical electronic designs. With tight tolerance, low TCR, and high power capacity, these resistors offer excellent stability in challenging environments. Designed for seamless integration, they provide consistent electrical characteristics, making them suitable for demanding applications that require precision and durability. Buy now to ensure your projects benefit from proven quality and immediate delivery.
Order your TE Connectivity RP73 Power Resistor today and ensure your projects gain the high accuracy and stability needed for demanding electronic applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RP73PF1E11KBTD?
You can click on the BUY or RFQ button to purchase RP73PF1E11KBTD from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RP73PF1E11KBTD?
You can download the RP73PF1E11KBTD datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RP73PF1E11KBTD?
TE CONNECTIVITY
