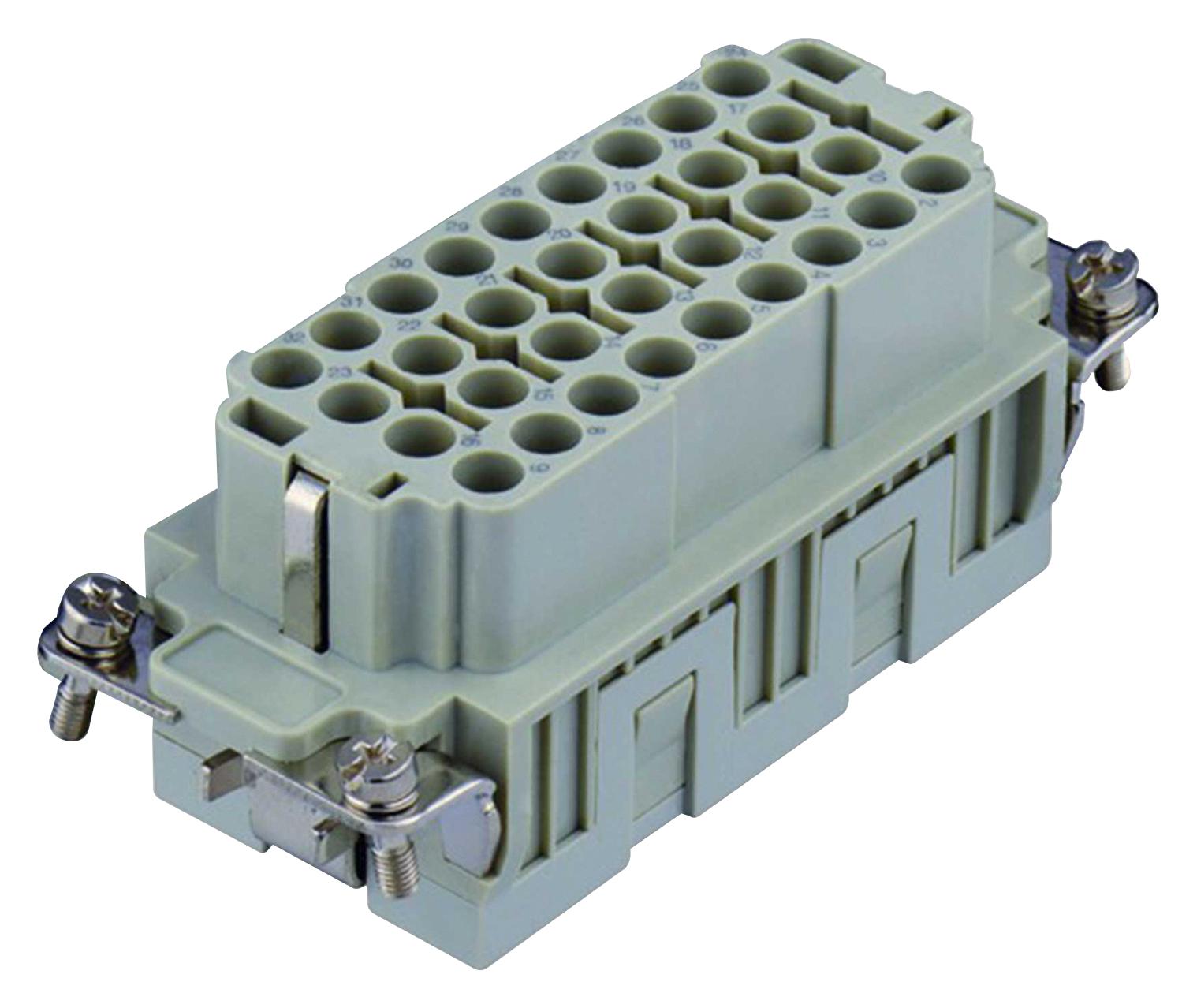

TE CONNECTIVITY T2050642201007 Railway Connector Insert
The EN45545 compliant HDC inserts from TE Connectivity are modular railway connectors designed for high flexibility in signal, data, and power transmission. Capable of holding from 1 to 216 pins, these inserts meet rigorous fire safety standards with the ability to operate in temperatures ranging from -40°C to 125°C. Suitable for applications in rolling stock such as traction converters, power distribution, and inter-car jumpers, these connectors ensure reliable electrical connections, enhanced safety, and easy assembly with system modularity, significantly reducing installation costs.
TE CONNECTIVITY T2050642201007 Railway Connector Insert Specifications:
- Operating Temperature Range: -40°C to 125°C
- Voltage Rating: 250V / 500V / 400V / 1000V
- Current Capacity: 5A to 200A depending on series
- Pin Configuration: 1 to 216 pins
- Material: Flame-retardant, compliant with R22 and R23 hazard levels
- Standards: EN45545, EN61984, EN 50467, IEC 60512, IEC 60664-1, EN 61373
- Flammability: UL 94V-0
- Shock and Vibration: Compliance with EN 61373
- Connector Type: Modular, easy assembly with one-piece frame
- Application: Railway rolling stock, traction converters, power distribution
Buy the Buy TE Connectivity HDC Insert Part Number T2050642201007 Online
Purchase the TE Connectivity HDC insert T2050642201007 online today for dependable railway connection solutions. These modular inserts offer high flexibility, accommodating up to 216 pins for signal, power, and data transmissions. Designed to meet EN45545 fire safety standards and operate from -40°C to 125°C, they are ideal for traction converters, power distribution, and inter-car jumpers in railway vehicles. Easy to assemble and system-modular, they significantly reduce installation time and costs while ensuring safety and reliability in demanding environments.
Order your TE Connectivity HDC T2050642201007 railway connector insert today and ensure reliable, safe, and adaptable connections for your rolling stock systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T2050642201007?
You can click on the BUY or RFQ button to purchase T2050642201007 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T2050642201007?
You can download the T2050642201007 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T2050642201007?
TE CONNECTIVITY
