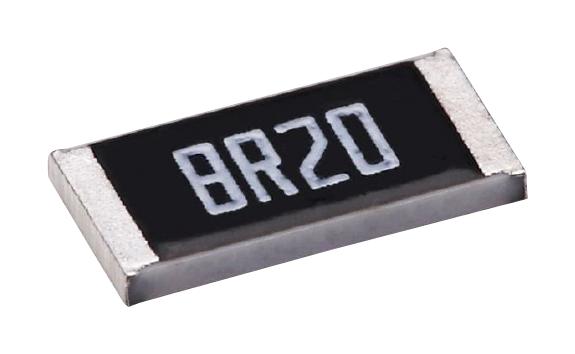

TE CONNECTIVITY RP73PF1E15KBTD High Power Precision Resistor
The RP73 series is a high precision SMD thin film resistor range designed for industrial applications. Offering tolerance down to 0.05% and TCR as low as ±15ppm/°C, these resistors handle power ratings up to 1.0W with voltage ratings close to 200V. Suitable for communications, industrial controls, instrumentation, and medical devices, they are manufactured on alumina substrates with sputtered metal film protection, ensuring high stability, low voltage coefficient, and excellent long-term reliability in demanding environments.
TE CONNECTIVITY RP73PF1E15KBTD High Power Precision Resistor Specifications:
- Physical Sizes: 0402, 0603, 0805, 1206, 1210, 2010, 2512 mm
- Rated Power: 0.1W to 1.0W depending on size
- Resistance Range: 10Ω to 499kΩ or up to 1MΩ for larger sizes
- Tolerance: 0.05%, 0.1%, 1.0%
- Temperature Coefficient: ±15ppm/°C to ±50ppm/°C
- Maximum Operating Voltage: 50V to 200V based on size
- Maximum Overload Voltage: 100V to 400V depending on size
- Operating Temperature Range: -55°C to +155°C
- Insulation Resistance: >1000MΩ
- Stability: 0.5%
- Construction: Alumina substrate with NiCr barrier and Ag electrodes
- Packaging: Tape and reel suitable for automated insertion, sizes from 0402 to 2512
- Environmental Resistance: MIL-STD-202 tested for humidity, thermal shock, vibration, and soldering resistance
Buy the TE-CONNECTIVITY Series RP73 High Power Precision Resistor: RP73PF1E15KBTD
Order TE RP73 precision resistors online today and benefit from high tolerance accuracy down to 0.05%, high stability, and compatible sizes from 0402 to 2512. Designed for demanding applications such as communications, industrial controls, instrumentation, and medical equipment, these resistors provide excellent thermal stability, high voltage handling up to 200V, and power dissipation up to 1.0W. With proven durability and precision manufacturing, purchase online to ensure fast delivery and secure checkout for your critical electronic designs.
Buy TE RP73 high power precision resistors now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RP73PF1E15KBTD?
You can click on the BUY or RFQ button to purchase RP73PF1E15KBTD from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RP73PF1E15KBTD?
You can download the RP73PF1E15KBTD datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RP73PF1E15KBTD?
TE CONNECTIVITY
