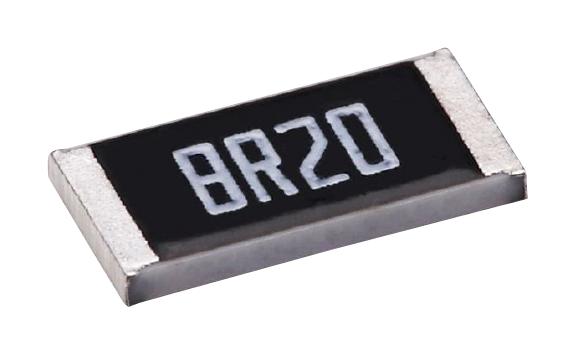

TE CONNECTIVITY RP73PF1E42R2BTDF High Power Precision Resistor
The RP73PF series high power SMD precision resistor offers excellent stability and high power dissipation suitable for communication, industrial, medical, and instrumentation applications. Featuring a resistance range from 10Ω to 255kΩ, TCR as low as 20ppm/°C, and a power rating of 0.1W at 70°C for the 0402 size, it provides reliable performance in demanding environments. Constructed with sputtered metal film on alumina, the series ensures low resistance tolerance down to 0.05% and high insulation resistance over 1000MΩ, with operating temperatures from -55°C to +155°C.
TE CONNECTIVITY RP73PF1E42R2BTDF High Power Precision Resistor Specifications:
- Resistance range: 10Ω to 255kΩ
- Power rating: 0.1W at 70°C for 0402 size
- Tolerance: 0.05% (F), 0.1% (D), 1% (F)
- Temperature coefficient (TCR): 20ppm/°C to 50ppm/°C depending on series
- Operating temperature: -55°C to +155°C
- Insulation resistance: >1000MΩ
- Max operating voltage: 50V (0603), 75V (1206), 150V (0805), 200V (1206)
- Max overload voltage: 100V (0603), 200V (1206), 300V (0805), 400V (1206)
- Dimension notes: 0402 (1.0 x 0.5mm), 0603 (1.55 x 0.8mm), 0805 (2.0 x 1.25mm), 1206 (3.1 x 1.55mm), 1210 (3.1 x 2.4mm), 2010 (4.9 x 2.4mm), 2512 (6.3 x 3.2mm)
- Suitable for surface-mount PCB assembly with specified reflow profiles and peel forces
Buy the TE Series High Power Precision Resistor: RP73PF1E42R2BTDF
Order the TE high power precision resistor RP73PF1E42R2BTDF today via our online store to ensure high accuracy, excellent temperature stability, and reliable performance for demanding industrial and electronic applications. Designed with sputtered metal film technology on alumina substrates, it offers a resistance range from 10Ω to 255kΩ, low tolerance of 0.05%, and TCR as low as 20ppm/°C. Ideal for PCB assembly where durability and precision are critical, this resistor meets rigorous standards and provides optimal performance in various operating environments.
Buy TE high power precision resistor RP73PF1E42R2BTDF now and experience unmatched reliability and performance in your industrial, communication, and medical projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RP73PF1E42R2BTDF?
You can click on the BUY or RFQ button to purchase RP73PF1E42R2BTDF from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RP73PF1E42R2BTDF?
You can download the RP73PF1E42R2BTDF datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RP73PF1E42R2BTDF?
TE CONNECTIVITY
