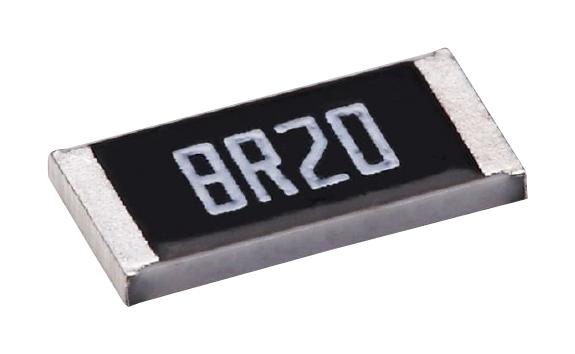

TE CONNECTIVITY RP73PF1E787RBTDF High Power Precision Resistor
The RP73 resistor series from TE Connectivity offers high precision thin film chip resistors with tolerances down to 0.05% and TCR as low as SPPM. Designed for reliable performance in communications, industrial controls, instrumentation, and medical applications, these resistors feature power ratings up to 1.0W and operating voltages up to 200V. Manufactured on high-grade alumina with sputtered metal films protected by three printed layers, they provide accurate, durable, and high-temperature solutions for demanding electronic circuits.
TE CONNECTIVITY RP73PF1E787RBTDF High Power Precision Resistor Specifications:
- Physical sizes ranging from 0402 to 2512 with dimensions specified in millimetres, e.g., 0402 (1.00 x 0.50 x 0.50 mm), 0603 (1.55 x 0.80 x 0.45 mm), 0805 (2.00 x 1.25 x 0.55 mm), 1206, 1210, 2010, 2512.
- Resistance ranges from 10R to 1MΩ depending on size, with typical tolerance of 0.05% and 1.0% for some variants.
- Temperature coefficient (TCR) options include 25, 50, or 100 ppm/°C with high-precision options at 10, 20, or 15 ppm/°C for specific models.
- Rated power varies from 0.1W (0402, 0603, 0805, 1206, 1210) to 0.33W (2010, 2512), and 0.25W for 1206 and other sizes at 70°C.
- Maximum operating voltages range up to 200V, with overload voltages up to 400V depending on size, with insulation resistance >1000 MΩ.
- Operating temperature range from -55°C to +155°C, with stability within 0.5% over temperature and time.
- Manufactured with alumina substrate, edge electrode, resistor layer of NiCr, and protective epoxy coating, ensuring durability and precision.
- Packaging includes embossed plastic tapes for surface-mount placement, with a peel force between 8gf to 60gf for top cover tapes, and suitable for automatic placement.
- Environmental tests demonstrate resistance to moisture, heat, thermal shock, and soldering processes compliant with MIL-STD standards, ensuring performance stability in harsh conditions.
Buy the TE Connectivity Series RP73 High Power Precision Resistor: RP73PF1E787RBTDF
Purchase the high power precision resistor from TE Connectivity online today and benefit from exceptional accuracy, durability, and stability in your electronic projects. These surface-mount resistors offer tolerances down to 0.05%, power ratings up to 1.0W, and voltage capacities to 200V. Ideal for communication systems, industrial controls, instrumentation, and medical devices, they are manufactured on durable alumina substrates with sputtered metal films for consistent performance. Secure your supply of reliable high-precision resistors online now and enhance your circuit design quality and longevity.
Order your TE Connectivity Series RP73 high power precision resistor today and ensure reliable, high-accuracy performance for demanding electronic circuits.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RP73PF1E787RBTDF?
You can click on the BUY or RFQ button to purchase RP73PF1E787RBTDF from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RP73PF1E787RBTDF?
You can download the RP73PF1E787RBTDF datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RP73PF1E787RBTDF?
TE CONNECTIVITY
