A Premier B2B Part Search

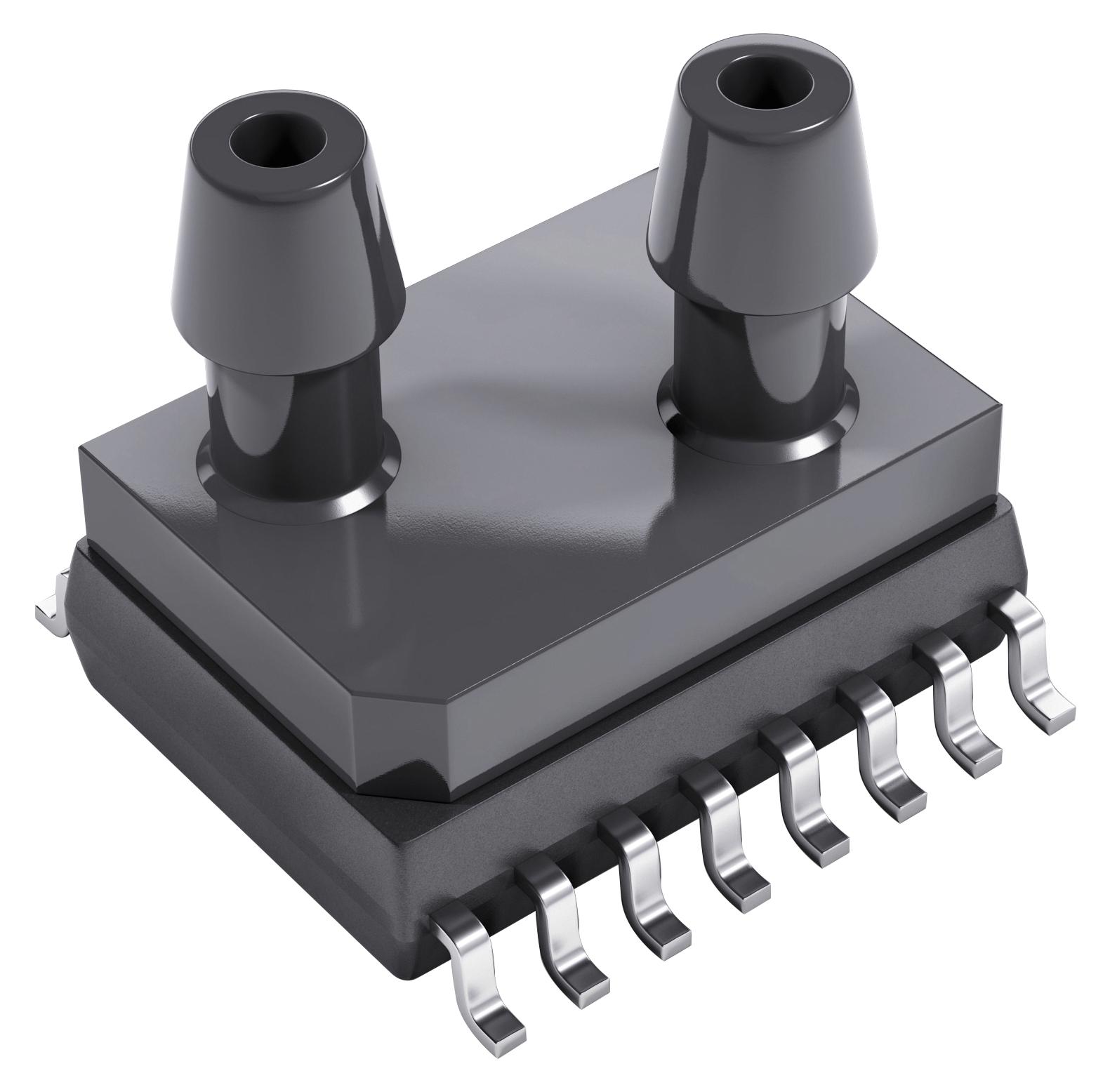

TE CONNECTIVITY SM9233BCES250002 Ultra-Low Pressure Sensor
The SM9233-250 Pa gage pressure sensor is a high-precision, digital device ideal for ultra-low pressure measurements in industrial and medical applications. It offers digital output with 16-bit resolution, temperature and pressure compensation, and a total error band of less than 1% full scale after autozero calibration. The device operates from 3.3V to 5V, features a compact SOIC-16 package, and is suitable for monitoring gas flows, HVAC systems, safety cabinets, and medical ventilators. Its robust MEMS technology ensures long-term stability and reliable performance in critical environments.
TE CONNECTIVITY SM9233BCES250002 Ultra-Low Pressure Sensor Specifications:
- Power Supply Voltage: 3.3 V to 5 V
- Pressure Range: 0 to +250 Pa
- Output Resolution: 16 Bits
- Total Error Band: <1% FS after autozero
- Operating Temperature: -20°C to +85°C
- Temperature Measurement Range: -40°C to 125°C with linear transfer
- Measurement Accuracy: ±1.25% FS typical; ±2.75% FS maximum
- Bandwidth: 20 Hz
- Interface: I2C Slave Interface with CRC protection available
- Package: SOIC-16 dual vertical porting
- Supply Current: Approx. 3.3 mA at 3.3V, up to 5 mA at 5V
- Calibration: Factory calibrated, system-level autozero capability
- Applications include gas flow measurement, HVAC, safety cabinets, medical ventilators, and respiratory monitoring
- Built with MEMS pressure sensing technology ensuring stability and durability
Buy the TE Connectivity SM9233 – Reliable Pressure Sensors for Industrial Applications
Purchase the TE Connectivity SM9233 ultra-low pressure sensor online today—engineered for high accuracy, reliable performance, and stability. Its compact SOIC-16 package makes integration seamless with factory calibration and system autozero features. With a measurement range of 0 to +250 Pa and a total error band of less than 1%, it’s ideal for medical, industrial, and HVAC systems. Ensure long-term stability, minimal drift, and robust MEMS technology in your critical applications by ordering online now for fast delivery and technical support.
Get TE Connectivity SM9233 today—built for precision and long-lasting durability in critical pressure measurement tasks.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SM9233BCES250002?
You can click on the BUY or RFQ button to purchase SM9233BCES250002 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SM9233BCES250002?
You can download the SM9233BCES250002 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SM9233BCES250002?
TE CONNECTIVITY
