TE CONNECTIVITY SM9235BCES300000 Pressure Sensor
The SM9235 is an ultra-low pressure digital gage sensor designed for precision measurements across a range of applications including HVAC, gas flow, and medical devices. This sensor offers high accuracy with a total error band of less than 1%FS after autozero calibration, featuring a 16-bit digital interface for easy integration. Calibrated and temperature compensated, it operates within a temperature range of -20°C to 85°C and provides reliable pressure readings from 0 to +300 Pa. Its compact SOIC-16 dual vertical port package simplifies installation in space-constrained environments, ensuring consistent long-term performance.
TE CONNECTIVITY SM9235BCES300000 Pressure Sensor Specifications:
- Pressure Range: 0 to +300 Pa
- Supply Voltage: 3.3V to 5V
- Supply Current at 3.3V: 3.3 to 3.8 mA; at 5V: 3.9 to 5 mA
- Digital Output: 16 Bits, Counts from -26,215 to +26,214
- Total Error Band: <1%FS after autozero
- Resolution: 16 Bits
- Update Rate: 2000 Hz
- Bandwidth: 20 Hz
- Operating Temperature: -20°C to 85°C
- Compensated Temperature Range: -20°C to 85°C

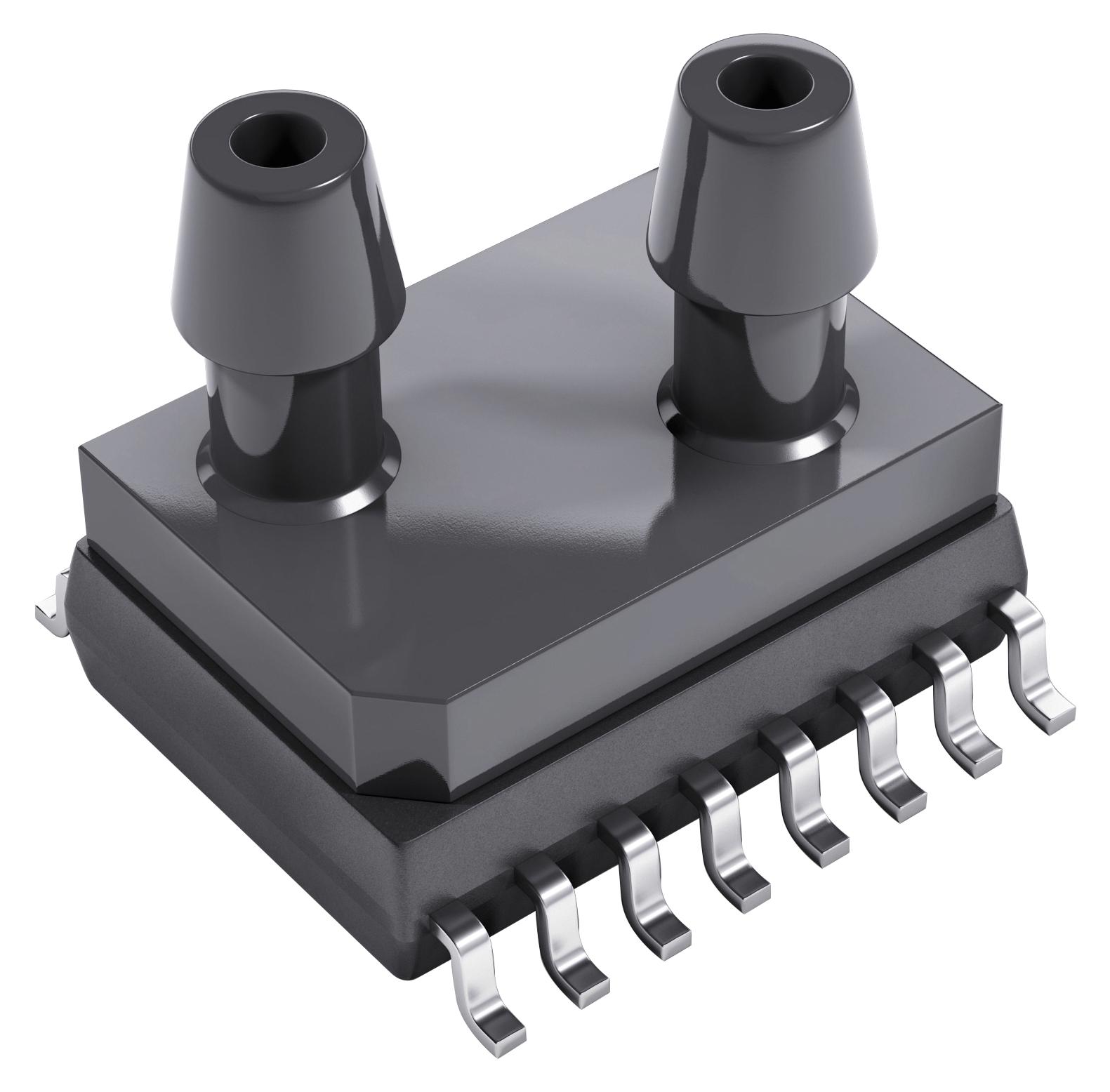

- Housing: SOIC-16 dual vertical port package
- Mechanical: JEDEC standard, RoHS, REACH compliant
- Wetted Materials: silicon, glass, RTV silicone, gold, aluminum, copper, epoxy, stainless steel
- Calibration: Factory calibrated, system autozero capability
- Outputs: digital pressure and temperature data via I2C interface
- Durability: Designed for long-term stability with less than 1% error after autozero calibration
Buy the Buy TE Connectivity Ultra-Low Pressure Digital Sensor Part Number SM9235BCES300000 Online
Experience highly accurate, low-pressure measurement with the TE Connectivity SM9235 sensor. Featuring a 16-bit digital interface, reliable autozero calibration, and temperature compensation, it is ideal for HVAC, medical devices, and gas flow instrumentation. Compact and easy to mount in space-constrained environments, this sensor provides stable performance over its lifetime, ensuring precise pressure readings with less than 1% error post autozero. Purchase online now for dependable, long-term pressure sensing solutions for your industrial or medical application needs.
Get TE Connectivity SM9235BCES300000 today—built for precision and long-lasting durability in ultra-low pressure measurement applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SM9235BCES300000?
You can click on the BUY or RFQ button to purchase SM9235BCES300000 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SM9235BCES300000?
You can download the SM9235BCES300000 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SM9235BCES300000?
TE CONNECTIVITY
