TE CONNECTIVITY 23148764 Board-to-Board Receptacle
The product is a versatile 2mm board-to-board receptacle designed for reliable electrical and mechanical connection in industrial automation, control panels, and instrumentation. Crafted with phosphor bronze contacts and high-temperature resistant LCP housing, it supports surface-mount and through-hole assembly processes. The receptacle offers dual-beam contacts for increased signal transfer reliability, with options for vertical or horizontal mounting. Available in various configurations, including single and dual-row, with multiple packaging options, it is ideal for applications such as PLCs, servo drives, and building automation, ensuring space savings and robust interconnection.
TE CONNECTIVITY 23148764 Board-to-Board Receptacle Specifications:
- Centerline: 200mm [0.079"]
- Dual beam contact design for reliable signal transfer
- Housing Material: High-temperature resistant liquid crystal polymer (LCP), UL 94V0, black
- Contact Material: Phosphor bronze with various gold plating options (30p", 15y", 4u")
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Operating Temperature: -40°C to 125°C
- Reflow Solder Temperature: Capable to 260°C
- Dimensions vary from 2mm to 36mm in length, with multiple solder tail lengths suitable for PCBs from 1.6mm to 2.4mm thick
- RoHS & REACH compliant, UL certified, VDE approval pending
- Available in tape and reel or tube packaging for easy automation and assembly
- Suitable for vertical/horizontal and dual entry configurations, supporting up to 25 positions per row

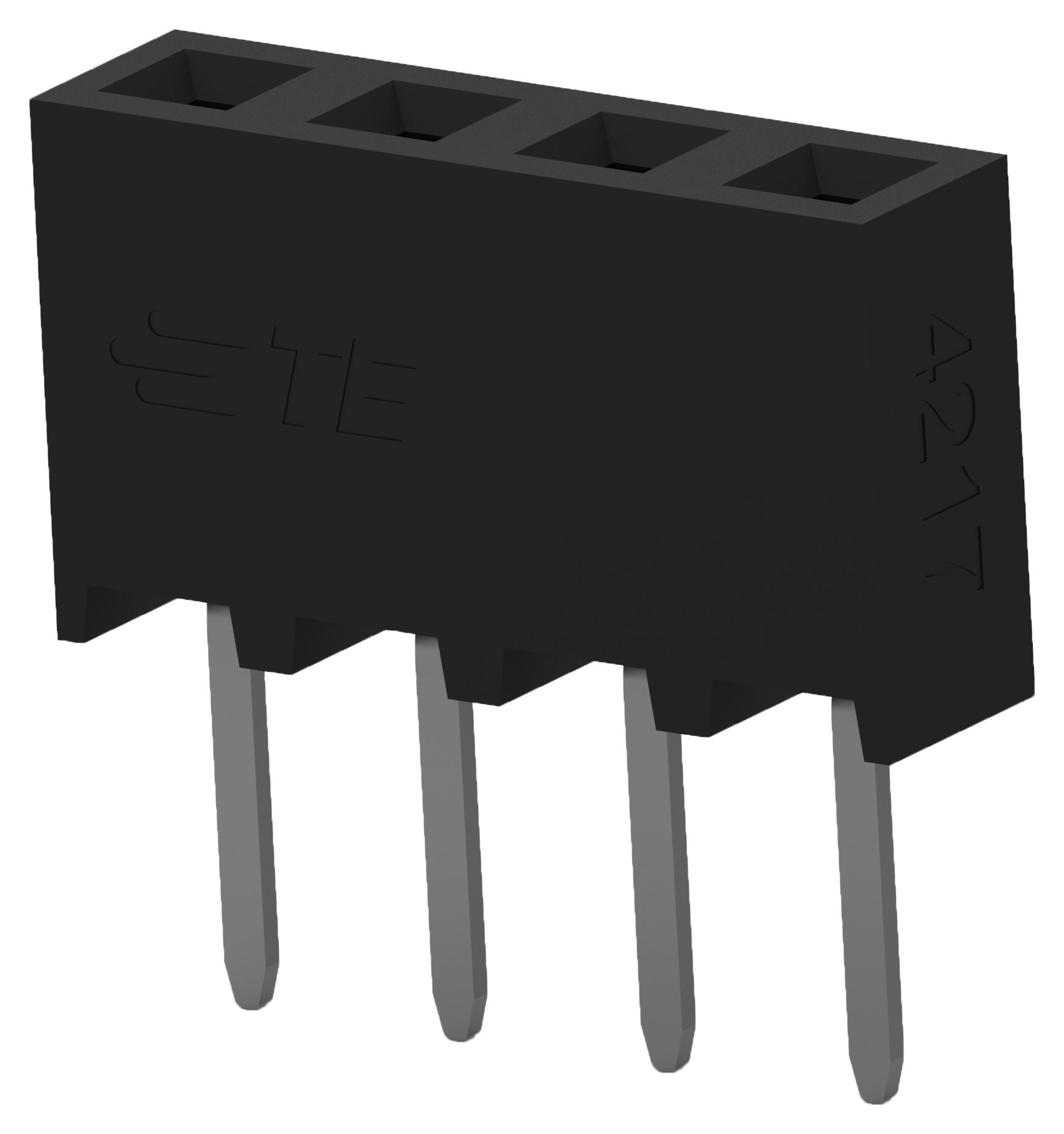

Buy the TE Connectivity Series AMPMODU 2mm Board-to-Board Receptacle: 23148764
Discover the high-quality TE Connectivity AMPMODU 2mm Board-to-Board Receptacle, engineered for space-saving, reliable electrical connections in industrial automation, control systems, instrumentation, and building automation. Its dual-beam contacts ensure stable signal transfer, suitable for surface-mount and through-hole assembly, with multiple options for vertical or horizontal orientation. Built with high-temperature resistant LCP housing and phosphor bronze contacts with gold plating, this receptacle supports demanding operational environments. Available in tape and reel or tube packaging, it simplifies automated manufacturing and assembly processes, ensuring durability and consistent performance.
Get TE Connectivity AMPMODU 2mm Board-to-Board Receptacle today—designed for compact, reliable connections in automation and industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23148764?
You can click on the BUY or RFQ button to purchase 23148764 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23148764?
You can download the 23148764 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23148764?
TE CONNECTIVITY
