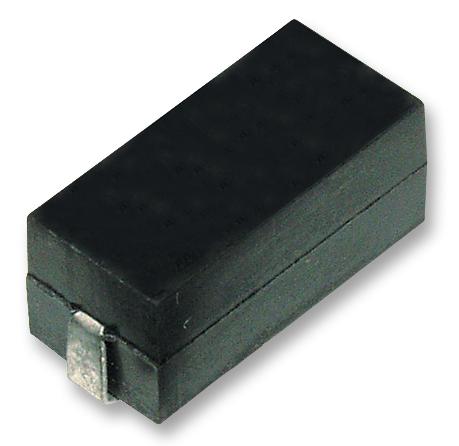

TE CONNECTIVITY SMV1W560KJT High Voltage Resistor
The Metal Glaze high voltage SMD resistors are flameproof, UL94VO molded components resistant to sulfur, heat, and humidity. Designed for high surge and pulse withstand capabilities, these resistors feature high stability and excellent electrical performance. They operate within a temperature range of -65°C to 200°C, offering resistance tolerance from ±5% to ±1%. Suitable for environments demanding high voltage and environmental resilience, they have a surface temp max of 275°C and can withstand overload conditions with dielectric withstand voltage up to 1000V. The resistors are ideal for high voltage power applications requiring stability and durability.
TE CONNECTIVITY SMV1W560KJT High Voltage Resistor Specifications:
- Flameproof UL94VO molded package
- Resistance Range: 100KΩ to 10MΩ
- Resistance Tolerance: ±5% (J), ±1% (F)
- Operating Temperature: -65°C to 200°C
- Max Surface Temp: 275°C
- Rated Voltage: 1600V to 5000V depending on power rating
- Power Ratings: 1W, 2W, 3W
- Dielectric Withstanding Voltage: AC 1000V for 1 min
- Pulse Load Capabilities: IEC 61000-4-5 1.2/50 µs pulse withstand
- Moisture-proof Load Life: 1000 hours at 40°C and 95% RH
- Lightning Surge: Withstands 1.2/50 µs and 10/700 µs pulses
- Dimensions vary with power rating, e.g., 4.0 x 6.7 mm for 1W, 5.5 x 10.5 mm for 2W, 7.3 x 13.5 mm for 3W
