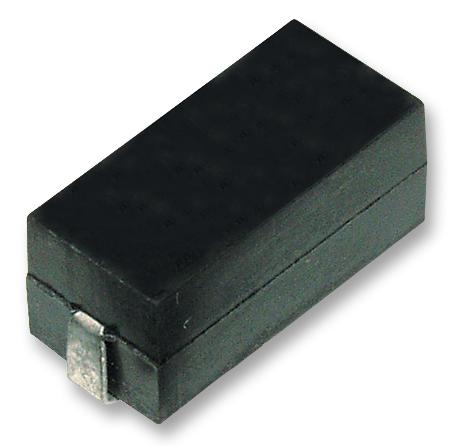

TE CONNECTIVITY SMV1W6M8JT High Voltage SMD Resistor
High voltage metal-glaze surface-mount resistors designed for use in power and electronic circuits. They feature UL94VO flameproof molded packaging, resistance to sulfur, heat, and humidity, and high surge and pulse withstand capabilities. These resistors offer precise resistance tolerance (+5%, +1%), excellent temperature stability, and withstand large overloads of 2.5 times rated voltage for 5 seconds. Designed for applications requiring reliable high voltage performance, they meet IEC61000-4-5 surge standards and operate effectively over a temperature range from -65°C to +275°C, making them ideal for demanding environments.
TE CONNECTIVITY SMV1W6M8JT High Voltage SMD Resistor Specifications:
- Resistance Range: 100K to 10M ohms
- Rated Power: 1W, 2W, 3W
- Tolerance: +5% (J), +1% (F)
- Temperature Coefficient: +200ppm/°C
- Dielectric Withstanding Voltage: AC 1000V for 1 min
- Insulation Resistance: 10,000 MΩ at DC 500V
- Pulse Load Capability: IEC 60065 14.1, +2% resistance change
- Max Surface Temp: 275°C
- Rated Voltage: up to 5000V depending on model
- Surge Withstanding: 1.2/50 μs and 10/700 μs pulses
Buy the Buy MIETAL GLAZE HIGH VOLTAGE SMD RESISTORS Part Number SMV1W6M8JT Online
Enhance your electronic circuits with MIETAL GLAZE high voltage surface-mount resistors, offering flameproof UL94VO molded packaging, sulfur resistance, and high surge capacity. Designed for demanding power and electronic applications, these resistors withstand large overloads and operate reliably from -65°C to +275°C. Their excellent stability, precise resistance tolerances, and compliance with IEC surge standards make them ideal for industrial, power supply, and high-voltage circuit environments. Purchase online today for dependable performance and easy integration into your designs.
Get MIETAL GLAZE high voltage power resistors today—engineered for precision, high surge capability, and long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SMV1W6M8JT?
You can click on the BUY or RFQ button to purchase SMV1W6M8JT from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SMV1W6M8JT?
You can download the SMV1W6M8JT datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SMV1W6M8JT?
TE CONNECTIVITY
