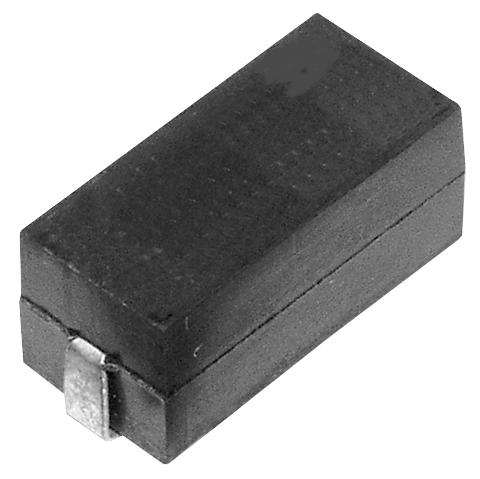

TE CONNECTIVITY SMW51R6JT Surface Mount Power Resistor
The SMW51R6JT is a high-quality surface mount power resistor designed for reliable performance in power circuitry. Available in 2, 3, or 5 watts ratings, it features a low profile case with flameproof UL94V0 coating and flexible tinned copper terminations for secure solder joints. Constructed with welded techniques to withstand high reflow oven temperatures, it offers a broad resistance range from 0.01Ω to 2MΩ with 1% or 5% tolerance. Suitable for demanding applications, it provides excellent environmental stability and high-temperature resilience for electronic and industrial projects.
TE CONNECTIVITY SMW51R6JT Surface Mount Power Resistor Specifications:
- Power Ratings: 2W, 3W, 5W at 25°C
- Resistance Range: 0.01Ω to 2MΩ
- Resistance Tolerance: 1% or 5%
- Max Operating Voltage: 300V (SM2), 500V (SM3, SM5)
- Temperature Coefficient: ±200ppm/°C
- Flameproof Coating: UL94V0
- Construction: Fully welded with tinned copper terminations
- Environmental Resistance: Reliable under humidity, load life, and soldering heat conditions
- Dimensions (mm): 40x14 (SM_2), 55x17 (SM_3), 73x17 (SM_5)
Buy the TE Series Power Resistor: SMW51R6JT
Enhance your electronic projects with the TE Series Power Resistor SMW51R6JT, available in 2, 3, or 5 watts. Its low profile design, flameproof UL94V0 coating, and welded construction ensure superior performance under high temperatures and demanding conditions. Ideal for power circuitry, it offers broad resistance values, excellent environmental stability, and reliable solder joints for long-lasting durability. Order online now to upgrade your power management solutions with this robust and versatile resistor.
Get TE Series Power Resistor SMW51R6JT today—designed for reliable power applications and high-temperature durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY SMW51R6JT?
You can click on the BUY or RFQ button to purchase SMW51R6JT from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part SMW51R6JT?
You can download the SMW51R6JT datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of SMW51R6JT?
TE CONNECTIVITY
