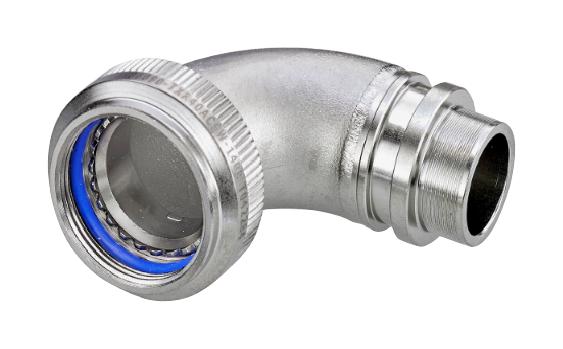

TE CONNECTIVITY TXR54AB9W1610BI Swept Elbow Backshell
TE Connectivity's Tinel Ring swept elbow backshells feature a smooth internal bore and continuous bend radius, offering reliable 90° cable termination for screened industrial and aerospace cables. Compatible with MIL-DTL-26482 Series II and MIL-DTL-83723 Series I and II connectors, these backshells provide excellent strain relief, cable support, and EMI/RFI shielding. Made from lightweight aluminum with cadmium olive drab over electroless nickel finish, they support quick installation with spin coupling nuts, ensuring high-reliability connections in defense and aerospace environments. The TXR54 model offers multiple sizes, finishes, and optional modifications for versatile applications, reducing weight by up to 20% compared to traditional designs.
TE CONNECTIVITY TXR54AB9W1610BI Swept Elbow Backshell Specifications:
- Material: Aluminum with cadmium olive drab over electroless nickel finish
- Application: Aerospace, Defense, Marine
- Connector Compatibility: MIL-DTL-26482 Series II, MIL-DTL-83723 Series I and II
- Bend Radius: Continuous
- Type: Swept elbow, 90° cable termination
- Weight Savings: Up to 20% over traditional backshells
- Features: Spin coupling nut for improved reliability, strain relief with heat-shrink boot
- Dimensions: Varies with size, compatible with multiple shell sizes and sizes
- Finish: Plating options available, including cadmium olive drab
- Standards: Watertight seal meeting MIL-C-85049 when mated, suitable for harsh environments
- Entry Size: Different options per model, compatible with circular connectors
- Additional: Offers EMI/RFI shielding for high interference environments
- Modifications: Helical conduit thread available
Buy the TE Series TXR Swept Elbow Backshells: TXR54AB9W1610BI
Enhance your aerospace and defense cable assemblies with TE Connectivity's lightweight swept elbow backshells, featuring a smooth bore, 90° termination, EMI shielding, and quick installation. Compatible with MIL standards, these backshells offer up to 20% weight reduction over traditional designs, ensuring high-reliability performance in harsh environments. The model TXR54 provides various sizes, finishes, and optional modifications including heat-shrink boots and spin coupling nuts for streamlined assembly, strain relief, and maximum electromagnetic interference protection. Perfect for demanding military, aerospace, and marine applications requiring durable, efficient cable management solutions.
Get TE Connectivity TXR54AB9W1610BI today—designed for high reliability and lightweight aerospace and defense cable termination solutions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TXR54AB9W1610BI?
You can click on the BUY or RFQ button to purchase TXR54AB9W1610BI from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TXR54AB9W1610BI?
You can download the TXR54AB9W1610BI datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TXR54AB9W1610BI?
TE CONNECTIVITY
