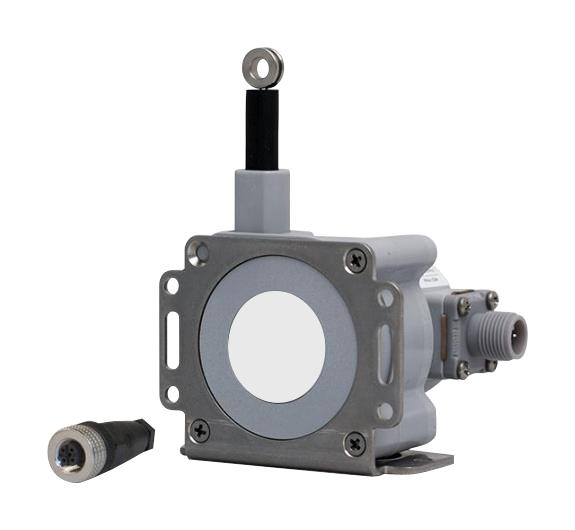

TE CONNECTIVITY SPD43 String Pot
The compact stringpot accurately measures linear displacement up to 50 inches with easy installation, versatile mounting options, and dual output signals of 4-20mA or 0-10Vdc. Its rugged IP67 polycarbonate enclosure makes it suitable for indoor and outdoor environments. The sensor features a nylon-coated stainless steel measuring cable, a plastic-hybrid potentiometer, and a user-adjustable mounting bracket. Its high repeatability of 0.05% FS and an essentially infinite resolution ensure precise and reliable position sensing for industrial automation, robotics, and OEM applications.
TE CONNECTIVITY SPD43 String Pot Specifications:
- Full Stroke Range Options 0-4.75 to 0-50 inches
- User Selectable Output Signal 4-20 mA (2-wire) / 0-10 Vdc
- Input Voltage, 4-20 mA option 8-40 VDC
- Input Voltage, 0-10 Vdc option 12-32 VDC
- Accuracy see ordering information
- Repeatability 0.05% FS
- Resolution essentially infinite
- Measuring Cable Diameter 0.019 inch nylon-coated stainless steel
- Sensor Type plastic-hybrid precision potentiometer
- Environmental Certification IP67, suitable for wet environments
- Operating Temperature -40°F to 160°F (-40°C to 70°C)
Buy the TE Connectivity SPD – Reliable String Pot for Industrial Applications
Order the TE Connectivity SPD string pot online today to enjoy fast delivery of a rugged, high-precision displacement sensor. Perfect for harsh industrial environments, this sensor provides versatile mounting, dual output options, and a reliable IP67 enclosure. Its ability to measure up to 50 inches with high repeatability and infinite resolution makes it ideal for OEMs, automation, and robotics projects. Purchase online now and enhance your machinery with precision measurement solutions designed for durability and accuracy.
Buy TE Connectivity SPD now and experience unmatched reliability and precise linear measurement for industrial applications.
