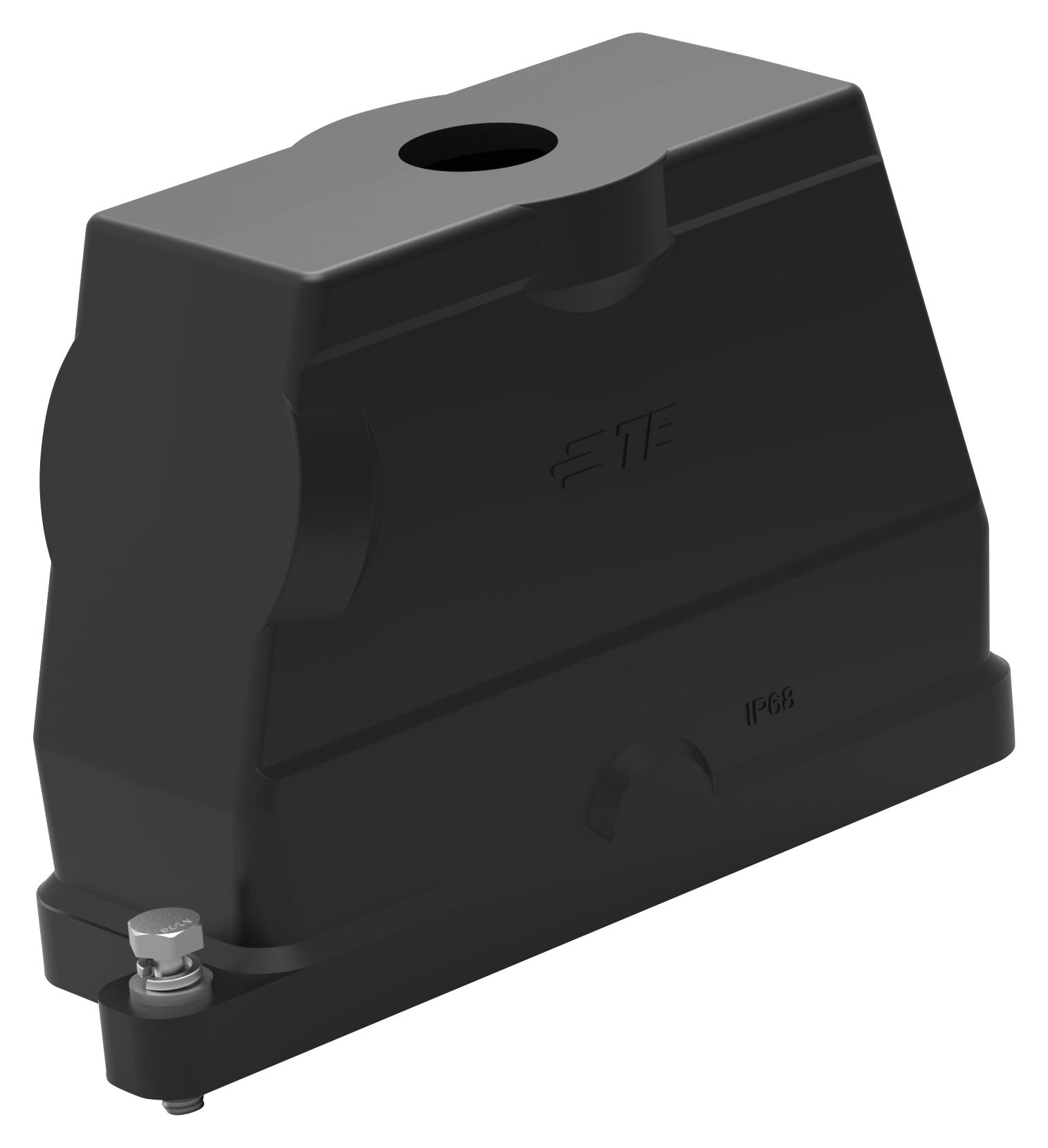

TE CONNECTIVITY T1920240125009 Heavy Duty Connector
Heavy duty connectors from TE Connectivity are designed for high reliability in harsh environments, supporting data, signal, and power applications. They feature modular interfaces, IP68 protection, and durable aluminum alloy housings with salt spray resistance for up to 500 hours. Suitable for industrial, power, and railway systems, these connectors are available in high-current series up to 650A, with options for 1 to 4 contact positions. The crimping contacts ensure excellent shock resistance, withstand voltages up to 4000V, and provide reliable sealing with stainless steel screw locking, making them ideal for outdoor and demanding industrial environments.
TE CONNECTIVITY T1920240125009 Heavy Duty Connector Specifications:
- Current Ratings: HCM250 up to 250A, HCM350 up to 350A, HCM650 up to 650A
- Protection Class: IP68
- Housing Material: Aluminum alloy with powder coating
- Salt Spray Resistance: Up to 500 hours
- Operating Temperature: -40°C to +125°C
- Withstand Voltage: HCM650 up to 4000V, others accordingly
- Contacts: Crimping type, stainless steel locking screws
- Contact Configurations: 1-4 positions available
- Standards: EN 61984, IEC 60068, IEC 60529, IEC 60664-1, IEC 60512
- Installation: Screw locking, for outdoor harsh environments
- Durability: >500 mating cycles
- Sealing: Rubber and conductive rubber seals
Buy the Buy TE Connectivity Heavy Duty Connector Part Number T1920240125009 Online
Purchase the TE Connectivity Heavy Duty Connector T1920240125009 online today to benefit from reliable, IP68-rated protection and high current capacity up to 650A. Designed for demanding industrial and outdoor environments, it features durable aluminum alloy housing with salt spray resistance for 500 hours and stainless steel screw locking for secure connections. Suitable for data, power, and signaling applications, this connector ensures excellent shock resistance, withstand voltage up to 4000V, and supports multiple contact positions for versatile use, guaranteeing long-term performance and environmental resistance.
Order your TE Connectivity High Current Series connector T1920240125009 today and ensure your projects have dependable, sealed, robust power and signal connections in harsh environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T1920240125009?
You can click on the BUY or RFQ button to purchase T1920240125009 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T1920240125009?
You can download the T1920240125009 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T1920240125009?
TE CONNECTIVITY
