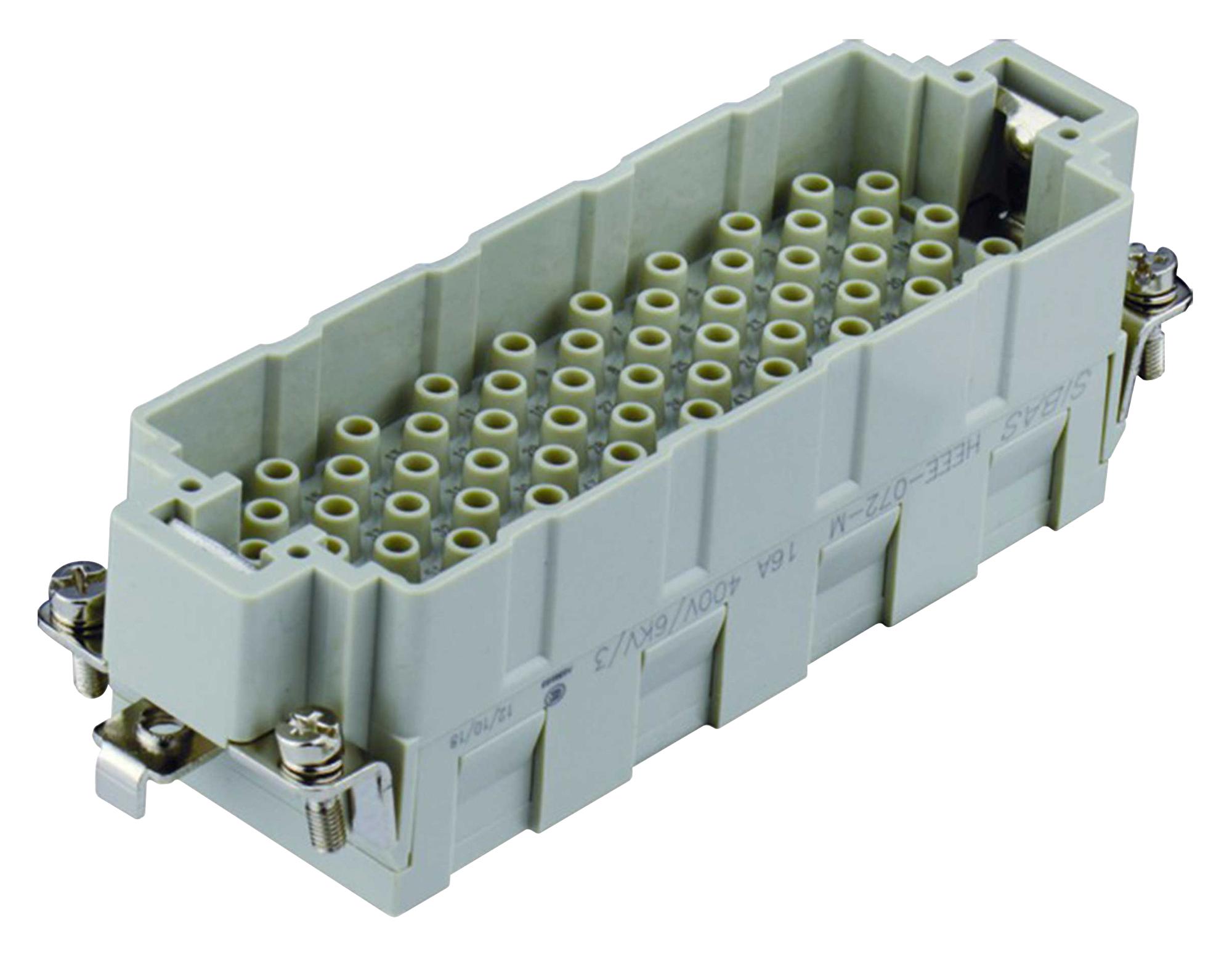

TE CONNECTIVITY T2050722101007 Heavy Duty Railway Connector
The HDC inserts from TE Connectivity are EN45545 compliant rugged modular connectors designed for railway applications, including traction converters and power distribution systems. They support configurations from 1 to 216 pins, providing versatile signal, data, and power transmission within a single connector. Made from materials meeting R22 and R23 flame retardancy standards, these inserts operate reliably in temperatures ranging from -40°C to 125°C, ensuring safety, high performance, and ease of assembly in complex railway environments. Suitable for high hazard level HL3 classifications, they meet strict fire, smoke, and toxicity standards.
TE CONNECTIVITY T2050722101007 Heavy Duty Railway Connector Specifications:
- Number of pins: 1 to 216 per connector
- Operating Temperature Range: -40°C to 125°C
- Flame Retardancy: EN45545 R22 and R23 compliant, HL3 hazard level
- Material: R22 and R23 flame retardant, oxygen index per EN ISO 4589-2
- Smoke Density: per EN ISO 5659-2
- Toxicity: per NF X 70-100-1/-2
- Electrical Ratings: HDD: 104 / 250V, HEE: 16A / 500V, HEEE: 16A / 400V and 16A / SOOV, HMN: 5A to 200A / up to 1000V
- Standard Compliance: EN45545, EN61984, EN 50467, IEC 60512, IEC 60664-1, EN 61373
- Application: Rail traction, power distribution, inter-car jumpers
- Connector System: Modular design with configurations up to 216 pins, quick assembly
Buy the TE Series Heavy Duty Railway Connectors: T2050722101007
Purchase the TE Heavy Duty Railway Connector inserts T2050722101007 online today and benefit from high safety standards, flexible configurations, easy assembly, and long-lasting performance. Ideal for railway traction converters, power distribution, and inter-car jumpers, these connectors ensure fire safety compliance according to EN45545, operate efficiently from -40°C to 125°C, and support configurations up to 216 pins. Their modular system reduces installation time and costs, providing a reliable, versatile solution for demanding railway environments.
Buy TE Series Heavy Duty Railway Connectors T2050722101007 now and experience unmatched safety compliance and reliable power transmission in railway systems.
