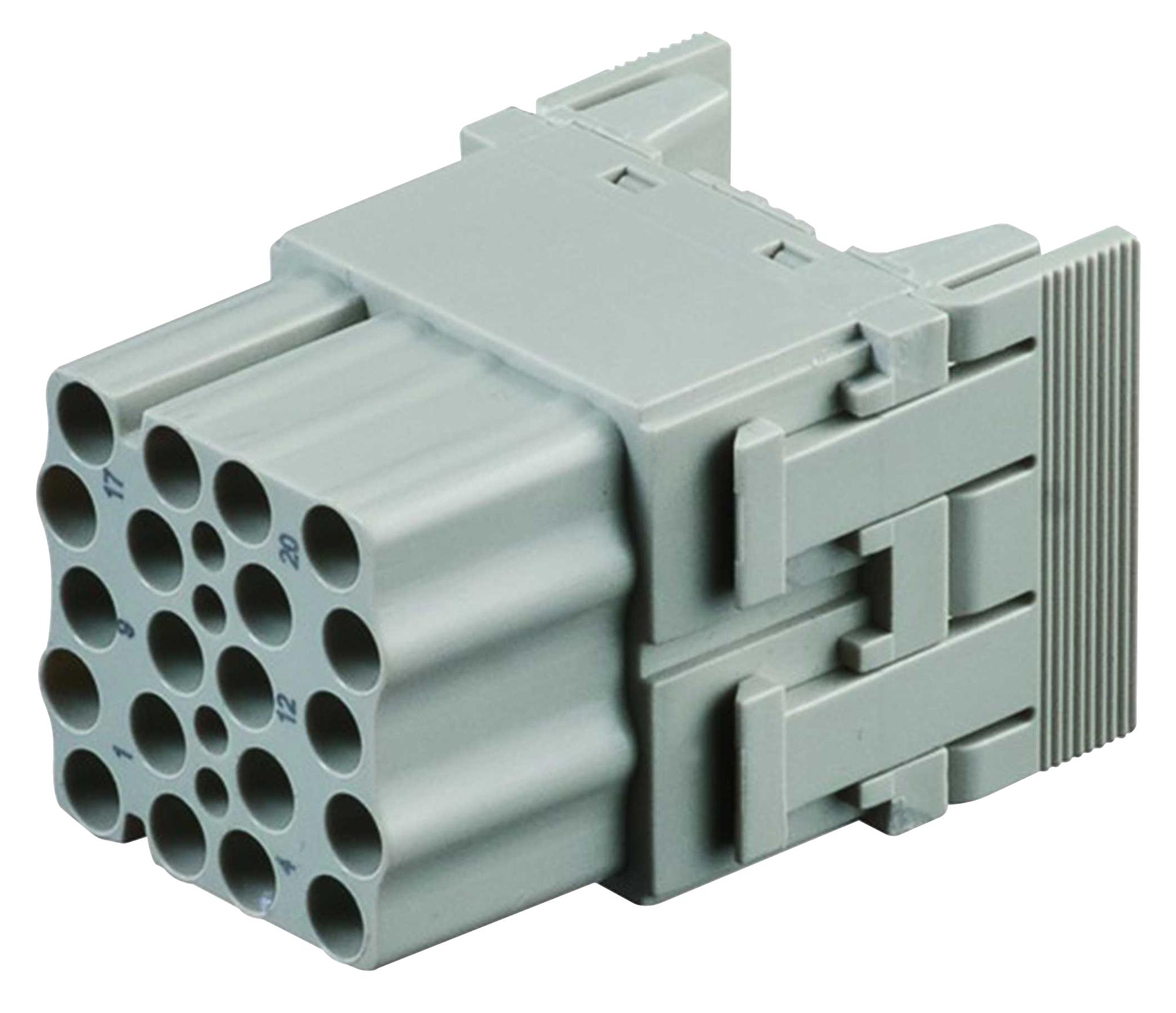

TE CONNECTIVITY T2111202201007 Heavy Duty Connector
The HMN series modular inserts offer high flexibility for configuring railway connector systems. These heavy-duty connector inserts comply with the EN45545 European standard for flame retardancy in railway rolling stock and meet R22 and R23 requirements at HL3 level. They ensure reliable electrical connections, support customization for tailored interfaces, and allow for quick assembly, reducing installation time and costs through their modular design. Operating within a temperature range from -40°C to 125°C, these inserts are suited for demanding railway environments. Crimp contacts are sold separately.
TE CONNECTIVITY T2111202201007 Heavy Duty Connector Specifications:
- Operating Temperature Range: -40°C to 125°C
- Flame Retardancy Standard: EN45545, R22 and R23 compliance at HL3 level
- Material: Approved for hazard levels HL1, HL2, HL3 with R22 and R23 requirements, Oxygen index EN ISO 4589-2, Smoke density EN ISO 5659-2, Toxicity NF X 70-100-1/-2
- Number of Pins: Configurable from 1 to 216 pins in modular system
- Electrical Ratings: Up to 250V AC/DC, 16A to 200A depending on series
- Compatibility: Supports multiple wire and connector configurations
- Standards: EN45545, EN61984, EN 50467, IEC 60512, IEC 60664-1, EN 61373
- Assembly: Modular, quick to assemble, system reduces installation costs
Buy the Buy TE Connectivity Heavy Duty Connector Part Number T2111202201007 Online
Purchase the TE Connectivity HMN series heavy-duty railway connector inserts online for quick, reliable, and flame-retardant electrical connections. These modular inserts support configurations from 1 to 216 pins, enabling signal, power, and data transmission within railway systems. They feature a broad operating temperature range from -40°C to 125°C and meet EN45545 HL3 flame retardancy standards. Easy to assemble, customizable, and compliant with multiple railway safety standards, they offer a cost-effective solution to optimize railway electrification and control systems.
Order your TE Connectivity HMN Series connector insert today and experience reliable, flame-retardant railway connectors designed for demanding environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T2111202201007?
You can click on the BUY or RFQ button to purchase T2111202201007 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T2111202201007?
You can download the T2111202201007 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T2111202201007?
TE CONNECTIVITY
